uAvionix Corporation

Identification Friend or Foe & Mode 5 Combat ID for Military UAS

300 Pine Needle Lane Bigfork, MT 59911 United States of America Regional Offices
Visit Website Contact

uAvionix is a leading developer of communications, navigation, and surveillance solutions for military UAS (unmanned aircraft systems).

uAvionix develops low SWaP TSO-certified and uncertified avionics for tactical Identification Friend or Foe (IFF) markets.

Our cross-disciplinary team of experts specialize in embedded RF engineering, hardware, software, and cloud services to provide low SWaP and affordable ADS-B transponders, IFF transmitters and receivers, and GPS receivers for the defense sector.

Mode 5 Combat ID & IFF Solutions for Defense

Engineered to the highest standards, uAvionix low-SWaP systems can be installed on Group 1 or Group 2 sUAS. Our RT-2087/ZPX IFF (Identification Friend or Foe) solutions provide secure Combat ID with Modes 1, 2, 3/A, C, S, and 5 interoperability for tactical UAV.

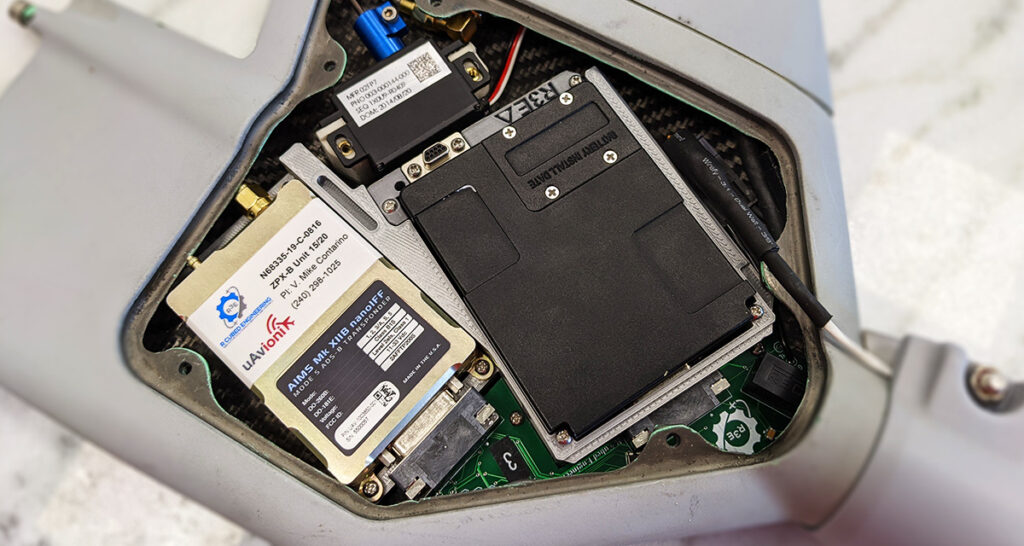

RT-2087:ZPX AIMS

ZPX systems are rigorously tested to ensure the highest performance specifications and operation within harsh environments. AIMs Mk XIIB certificated ZPX transponders contain internal crypto emulators to provide non-classified Mode 5 testing and demonstration capability and are crypto-appliqué compatible.

ZPX transponders are also compliant with civil airspace requirements as Mode S/1090ES ADS-B transponders, simplifying aircraft configurations.

Key Solutions:

  • ZPX-A – Micro Mode 3/A, C, S, and ADS-B OUT transponder for Group 1–2 UAS, enabling civil airspace integration with low SWaP and optional pairing with SBAS GPS and autopilots.
  • ZPX‑1 – AIMS-certified Mode 5 transponder with ADS-B capabilities for Group 2+ UAS, compatible with KIV-79 crypto for NATO-standard IFF; supports Mode S EHS and Mode 5 Level 2-B receive.
  • RT-2087/ZPX – Compact Mode 5 L1/2 transponder supporting ADS-B In/Out, autopilot integration, crypto emulator tools, and 250 W output power for tactical UAS and high-altitude ops up to 60,000 ft.
  • ZPR – Passive Mode 5 L2/2-B and dual-band ADS-B receiver for air, land, and maritime platforms; supports KIV-77/79 crypto, GNSS timing options, and dense signal environments.
  • SkyTAK – Portable surveillance solution for dismounted, vehicle-mounted, and UAV teams; passively receives ADS-B and Mode 5 Level 2/2-B traffic for real-time situational awareness via ATAK, WinTAK, and WebTAK.
ZPRMode 5 Transponder for Combat ID and Air Traffic Control Surveillance ZPX-1IFF Transponder from uAvionix SkyTAKskyTAK-2025 RT-2087/ZPXMode 5 Transponder for Combat ID and Air Traffic Control Surveillance
Input Voltage / Power 8-32V
1W Continuous		 11-33VDC
3.5W STBY / 5.5W NORMAL / 6W Peak		 8-32VDC
1W Continuous		 11-33VDC
3.5W NORMAL / 4W Peak
Size 83 x 47 x 15 mm 83 x 47 x 21 mm 5.7 x 3 x 1.85 in 83 x 47 x 15 mm
Weight 50 g 91 g 500 g (approx.) 68 g
Operating Temp -45 to 70°C -45 to 71°C -45 to 71°C -45 to 71°C
ADS-B Rx Sensitivity -79 dBm ±2 dB -79 dBm ±2 dB -79 dBm ±2 dB -79 dBm ±2 dB
Mode 5 Rx Sensitivity -84 dBm -84 dBm -84 dBm ±2 dB -80 dBm
ADS-B 978 Rx Sensitivity – – -81 dBm ±2 dB –
Transponder Modes – SIF & Mode S – Mode 1,2, 3/A, C, S
1090 MHz Tx Power – 250 W (54 dBm) – 250 W (54 dBm)
Altimeter -1000 to 126,750 ft -1000 to 126,750 ft – TSO-C88b to 35,000 ft
±1% to 60,000 ft
Control Interface 57,600 bps RS-232
uAvionix OEM Protocol		 57,600 bps RS-485/-232
GDL90+		 COM 2 – 57,600 bps / uAvionix UCP 57,600 bps RS-485/-232
GDL90+
Position Interface 115,200 bps RS-232
uAvionix OEM Protocol		 115,200 bps RS-232
uAvionix OEM Protocol		 – 115,200 bps RS-232
uAvionix OEM Protocol
Traffic Interface 115,200 bps RS-232
GDL90+ / AIMS 23-901		 115,200 bps RS-232
GDL90+ / AIMS 23-901		 COM 1 – 115,200 bps / AIMS 23-901 115,200 bps RS-232
GDL90+
Crypto / KIV Interface AIMS 04-900(A)
Option B (KIV-77 / KIV-79)
Internal Emulator		 AIMS 04-900(A)
Option B (KIV-77 / KIV-79)		 AIMS 04-900(A)
KIV-79		 AIMS 04-900(A)
Option B (KIV-77 / KIV-79)
Antenna Options – – Integrated (25 nm)
External TNC (150 nm)		 –

More information: Low SWaP Micro IFF Solutions

Products

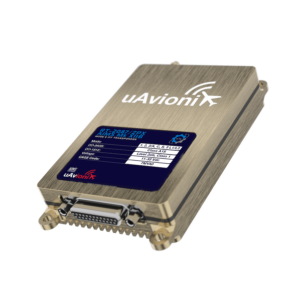

RT-2087/ZPX
