ADS-B Transponders for Military Aircraft and Unmanned Platforms

ADS-B is a surveillance technology that enables aircraft to determine their position via satellite navigation and periodically broadcast this data, allowing for accurate tracking by air traffic control and other aircraft. In military aviation, ADS-B serves dual purposes: enhancing operational safety and facilitating integration into civilian airspace.

ADS-B systems comprise two main components:

•

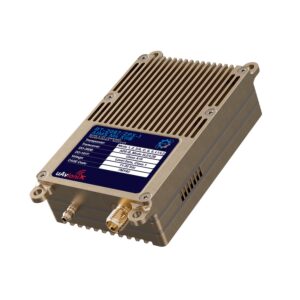

  ADS-B Transponder, ZPX-1 from uAvionix.

  ADS-B Out: Transmits the aircraft’s position, velocity, and identification information to ground stations and other aircraft. This function is handled by ADS-B transponders, which only support the outbound broadcast of flight data and do not receive information from other aircraft.

• ADS-B In: Receives similar information from other aircraft, aiding in traffic awareness and collision avoidance. This capability requires separate ADS-B receivers or transceivers, which are distinct from standard transponders.

For military applications, the adoption of ADS-B technology supports missions that require precise navigation and coordination, especially in joint operations and congested airspace.

Applications in Military Aircraft & UAVs

The integration of ADS-B transponders in military aircraft and UAVs offers several operational benefits:

• Enhanced situational awareness: Real-time position data improves coordination among friendly forces and supports deconfliction in joint operations.
• Airspace integration: ADS-B facilitates the safe inclusion of military flights into civilian airspace, ensuring compliance with air traffic regulations.
• Collision avoidance: By receiving data from other aircraft, ADS-B In enhances the effectiveness of collision avoidance systems, crucial for both manned and unmanned platforms.
• In unmanned systems, ADS-B is particularly valuable. UAVs equipped with ADS-B Out can broadcast their positions, allowing for better integration into shared airspace. Additionally, ADS-B In enables UAVs to detect nearby aircraft, supporting autonomous sense-and-avoid capabilities.

Types of ADS-B Transponders in Military Use

Military operations utilize various ADS-B transponder types, each tailored to specific platform requirements:

• Mode S transponders with ADS-B Out: Standard in many military aircraft, these provide essential tracking data to air traffic control and nearby aircraft.
• Low Size, Weight, and Power (SWaP) transponders: Designed for UAVs, these compact units ensure minimal impact on payload capacity while delivering robust surveillance capabilities.
• Advanced ADS-B Out transponders: Some models support configurable output settings and integration with additional avionics for enhanced flexibility in military missions.

Manufacturers have developed specialized transponders for military applications. Examples include compact Mode S transponders with ADS-B capabilities, engineered to enable both military and civilian UAS to operate safely within controlled airspace.

Integration with Other Avionics Systems

ADS-B transponders are often integrated with other onboard systems to enhance overall functionality:

• GNSS receivers: Provide accurate positioning data essential for ADS-B transmissions.
• Flight management systems (FMS): Utilize ADS-B data for route planning and navigation.
• Autopilot systems: Incorporate ADS-B inputs to adjust flight paths dynamically, especially in UAVs.
• Mission computers: Process ADS-B data alongside other sensor inputs for comprehensive situational awareness.

This integration ensures that ADS-B data contributes effectively to the broader avionics suite, supporting mission success and flight safety.

Security Considerations & Operational Discretion

While ADS-B enhances transparency and safety, it also presents security challenges in military contexts. The unencrypted nature of ADS-B transmissions means that adversaries could intercept tracking data. To mitigate this risk, military protocols often include:

• Selective transmission: Military aircraft may disable ADS-B broadcasts during sensitive operations to maintain stealth.
• Encrypted ADS-B messages: Some advanced systems support encrypted transmissions, ensuring that only authorized receivers can interpret the data.
• Operational policies: Guidelines dictate when and where ADS-B should be active, striking a balance between the need for situational awareness and operational security.

These measures ensure that the benefits of ADS-B are harnessed without compromising mission confidentiality.

Advancements & Future Developments

The evolution of ADS-B technology continues to address the unique needs of military aviation:

• Miniaturization: Ongoing efforts aim to reduce the size and weight of transponders, making them more suitable for small unmanned aerial vehicles (UAVs).
• Enhanced encryption: Development of secure ADS-B protocols ensures that sensitive data remains protected.
• Integration with Unmanned Traffic Management (UTM) systems: As UAV operations expand, ADS-B plays a crucial role in UTM frameworks, facilitating safe and efficient airspace utilization.

Manufacturers are responding to these trends by producing advanced transponders that meet stringent military requirements, ensuring that defense operations remain at the forefront of aviation technology.
