Military radar systems are pivotal in modern defense strategies, providing critical capabilities for surveillance, target acquisition, and threat detection. These systems utilize electromagnetic waves to detect and track objects, offering real-time data essential for informed decision-making in various military operations. This comprehensive guide delves into the intricacies of military radar systems, exploring their types, components, and diverse applications in contemporary warfare.
Read the Technology Overview
Advanced Mission Systems for Defense Forces Across the Land, Air, Naval & Space Domains
Advanced Solutions for Defense Modernization: Propulsion, Sensors, Communication & Augmented Reality Systems
Anti-Jam GPS-GNSS Devices, Tactical Data Links, Telemetry Systems, Electronic Warfare Equipment & Flight Termination Systems
Next-Generation Marine Radar Processing Solutions for Enhanced Situational Awareness in Naval & Defense Applications
Manufacturer & Systems Integrator of Deployable Systems for Military, Government & Security Applications
Radar Reinvented: Radars for Counter-UAS, Base & Asset Security, and Portable ISR
Mission-Critical Surveillance Data Solutions for Government, Military & Defense Organizations
High-Performance Video Graphics, GPGPU, AI/ML Processing & Display Solutions for Mission Critical Environments
If you design, build or supply Military Radar Technology, create a profile to showcase your capabilities and connect with visitors who have an active requirement for your solutions.
Radar, an acronym for Radio Detection and Ranging, operates by emitting radio waves and analyzing the echoes returned from objects. In military contexts, radar systems are indispensable for detecting and tracking aircraft, missiles, ships, and ground vehicles, thereby enhancing situational awareness and operational effectiveness.
Military radar systems are designed to operate effectively under challenging conditions, including electronic warfare environments and adverse weather conditions. They are integral to air defense, missile guidance, battlefield surveillance, and navigation, among other applications.
Military radar from Echodyne, EchoFlight airborne Detect and Avoid (DAA).
A typical military radar system comprises several critical components, each serving a specific function:
Advanced radar systems may also incorporate features like electronic counter-countermeasures (ECCM) to resist jamming and stealth detection capabilities to identify low-observable targets.
Military radar systems are broadly categorized based on their specific operational roles and the environments in which they are deployed. Each category is tailored to fulfill distinct functions, ranging from airborne threat detection to ground surveillance and naval targeting. Below is an overview of the primary types of military radar systems, highlighting their distinct capabilities and applications across various defense operations.
Mounted on aircraft, these airborne radar provides air-to-air and air-to-ground surveillance, target tracking, and navigation assistance.

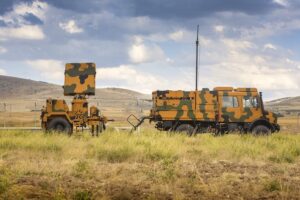

Deployed on land, ground surveillance radar systems monitor ground movements, detect vehicles, and provide perimeter security.
Installed on ships, naval radars assist in navigation, surface search, and fire control.
AEW systems provide extended-range detection and tracking of airborne threats, offering critical early warning and control functions.
Designed for precision targeting, fire control, and ground-controlled interception radar (GCI Radar), guide weapons systems to engage specific targets effectively.
Counter-battery radars detect and track incoming artillery shells or rockets, enabling rapid counter-fire responses.
SAR systems generate high-resolution images of terrain and targets, useful for reconnaissance and surveillance missions. They are often mounted on aircraft or satellites.
Unlike traditional radars, passive systems detect targets by analyzing existing electromagnetic emissions, offering stealthy surveillance capabilities.
Utilizing multiple antennas, these radars can steer beams electronically without the need for moving parts, enabling rapid target tracking and multitasking.
AESA radar represents a significant evolution of phased array technology. Instead of a single transmitter, AESA systems use multiple solid-state transmit/receive modules to steer beams electronically. This enables faster tracking, simultaneous engagement of multiple targets, and enhanced resistance to jamming and interception. AESA radars are widely used in modern fighter aircraft and naval systems, offering superior performance in both offensive and defensive roles.
Capable of detecting targets at very long ranges by bouncing signals off the ionosphere, these radars are vital for strategic early warning systems.
Military radar systems support a wide range of applications across land, air, and maritime domains. From air defense and missile guidance to reconnaissance, navigation, and search and rescue, they provide detection and tracking data that supports situational awareness, threat assessment, and operational decision-making.
Radar systems detect and track hostile aircraft and missiles to protect airspace integrity. Their coverage provides early warning of approaching threats, allowing air defense units to assess target movements and coordinate responses.
Radar systems provide real-time data to guide missiles accurately to their targets. Depending on the guidance architecture, radar may track the target, illuminate it for a missile seeker, or operate within the missile itself.
Radar supports surveillance and reconnaissance by monitoring enemy movements and gathering intelligence over vast areas. Persistent tracking and radar imagery help military operators assess activity and maintain situational awareness across land, air, and maritime environments.
Radar systems identify and track targets for engagement by weapons systems. Measurements of target range, direction, and movement support engagement decisions and allow other sensors or weapon systems to be directed toward the target.
Radar assists military vehicles and aircraft in navigating challenging environments safely. Depending on the platform and radar configuration, it can detect nearby traffic, terrain, or obstacles when darkness or reduced visibility limits visual observation.
Radar provides target data used to calculate precise firing solutions for artillery units. Systems configured for projectile tracking can also support fire adjustment by measuring trajectories and estimating impact locations.
Radar supports combat search and rescue operations by helping locate personnel or equipment in distress during combat or peacetime missions. Its role depends on radar capability and target characteristics, with other sensors used alongside radar to identify contacts and support recovery.
Military radar systems must adhere to stringent military standards (MIL-STDs) to ensure reliability, interoperability, and resilience in demanding operational environments. Key standards include:
Together, these standards form a foundational framework guiding the development and deployment of robust, mission-ready radar technologies.
Recent technological advancements have significantly enhanced the capabilities of military radar systems:
These innovations continue to push the boundaries of radar capabilities, ensuring that military forces maintain a technological edge in various operational scenarios.
Military radar systems are critical assets that provide comprehensive situational awareness, target tracking, and threat detection across multiple domains. Their diverse types and applications underscore their importance in modern warfare, from air defense and missile guidance to surveillance and reconnaissance. Continuous advancements in radar technology, including AESA, GaN semiconductors, and AI integration, further enhance their effectiveness and adaptability. As military operations evolve, radar systems will continue to be at the forefront of defense strategies, ensuring operational superiority and mission success.
