Power distribution units (PDUs) for military applications are designed to enable reliable and efficient power delivery across a wide range of mission-critical applications.
Table of contents:
A PDU, or Power Distribution Unit, is a device used to distribute electricity to multiple devices within a data center or network. Typically mounted on a rack, PDUs can supply power from various sources, such as an uninterruptible power supply (UPS), generator, or utility power provider.
Built for the harsh and unpredictable conditions of military environments, these systems can ensure seamless power distribution for defense applications, command centers, mobile systems, and more.
They may take in a variety of inputs, including AC (alternating current) and DC (direct current) voltages, and may be connected to sources such as diesel or gasoline generators, military battery packs, solar panels and hybrid energy systems.
Rugged PDUs deployed in battlefield environments and other austere conditions may have to deal with unstable and fluctuating power inputs and apply conditioning and noise filtering to ensure that all outputs are stable and reliable.
Typical AC inputs and outputs may include voltages of 100 to 240V and higher, at frequencies of 50Hz, 60Hz, or 400Hz. DC input and output ranges include 12V, 24V, and 48V, aligning with military vehicle and mobile system requirements. PDUs may be able to accept multiple input types and deliver multiple outputs simultaneously.
Military-grade PDUs are available in a variety of types and form factors to suit specific operational needs, from fixed installations in command centers to portable units for remote deployment. Key types of PDUs include:
Rack mount power distribution units are among the most widely used configurations in military power solutions. These units are designed to integrate seamlessly into standard or ruggedized server racks such as standard 19” configurations, providing centralized power distribution for mission-critical equipment such as tactical communication systems, surveillance equipment, and data servers.
A standard rack power distribution unit typically features a modular design to allow for easy scaling, enabling operators to manage power for small or large deployments.

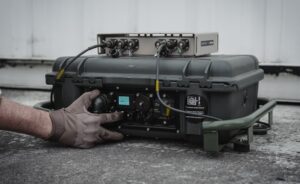

Portable power distribution unit technology can be essential for forward-operating bases and other remote environments where mobility and flexibility are critical.
These lightweight and compact units are designed for rapid deployment, may be carried by one of several personnel or transported by vehicle, and can provide stable, temporary power distribution to a range of systems, from field medical equipment to temporary command stations. With ruggedized enclosures, portable PDUs for military applications can withstand the rigors of transport and operation in austere environments.
Fixed-installation units are built for permanent deployment in facilities such as command centers, bunkers, control rooms, and naval vessels. These units can deliver high-capacity power distribution, often interfacing with primary power systems like generators and renewable energy sources to ensure uninterrupted service. They are commonly equipped with advanced monitoring capabilities to oversee and manage power consumption in real-time.
Tactical power distribution units are optimized for use in temporary or mobile setups, such as vehicles, tents, and other rapid-deployment structures. These units are built to provide stable power in dynamic situations, supporting radar systems, weapon platforms, and tactical unmanned systems. Tactical PDUs prioritize compactness, durability, and modularity to adapt to shifting operational requirements.
Military power distribution unit technology typically requires a high degree of ruggedization, allowing them to perform reliably in harsh conditions. Battlefield environments and other operational settings expose equipment to extreme temperatures, vibration, dust, moisture, and electromagnetic interference (EMI). Military-grade PDUs may be designed to withstand these challenges by incorporating features such as:
Durable Enclosures: Constructed from military-grade materials such as reinforced aluminum or stainless steel, PDU housings protect sensitive components from impact, environmental hazards, and corrosion.
Sealing and Insulation: Units often incorporate advanced sealing technologies to prevent ingress of water, dust sand, or other debris, ensuring reliable operation in desert, marine, and arctic conditions.
Shock and Vibration Resistance: They can be equipped with shock-mounting systems and vibration-dampening features to maintain performance in mobile applications, such as in military vehicles and aircraft.
EMI Shielding: Effective shielding is critical for ensuring compatibility with other sensitive military electronics. These systems meet stringent MIL-STD specifications to prevent interference with critical communications and sensor systems.
Ruggedized units are subjected to demanding test regimes according to MIL-STD standards to confirm their resilience in operational environments, ensuring they can withstand the rigors of deployment without compromising performance.
Mil-spec PDUs may be equipped with a range of advanced features that enhance their utility, performance, and reliability. These features may include:
Intelligent power distribution unit technology often incorporates integrated monitoring systems that provide real-time data on power usage, load balancing, and system status.
These capabilities enable operators to diagnose issues quickly, optimize energy efficiency, and reduce downtime. Remote management options allow control from centralized or off-site locations typically via Ethernet, improving operational flexibility.
To safeguard mission-critical equipment, military power distribution equipment can include surge protection and circuit breakers to shield connected systems from voltage spikes, power surges, and overload conditions. These features ensure uninterrupted operation and prevent damage to sensitive components.
AVR technology maintains consistent power output despite fluctuations in input voltage, a critical feature in environments with unstable power sources. This ensures that connected devices operate safely and efficiently under varying conditions.
Military PDUs may be available with customizable power output options, including different voltage and current capacities, connector types (including mil-spec connectors), and mounting configurations. Hot-swappable components and modular designs allow for quick adjustments or replacements without interrupting operations.
Compact and lightweight designs maximize power density, enabling units to deliver significant power output while minimizing their physical footprint. This is especially valuable in environments with space constraints, such as naval vessels, aircraft, or mobile command vehicles.
Military PDUs are often employed for defense power management in mission-critical applications, providing reliable power distribution for strategic and tactical operations. Specific use cases include:
In command and control systems, power distribution units can ensure uninterrupted power delivery to communication networks, computing systems, and surveillance equipment. By maintaining stable power, these units support real-time decision-making and data exchange, which are essential for effective mission coordination.

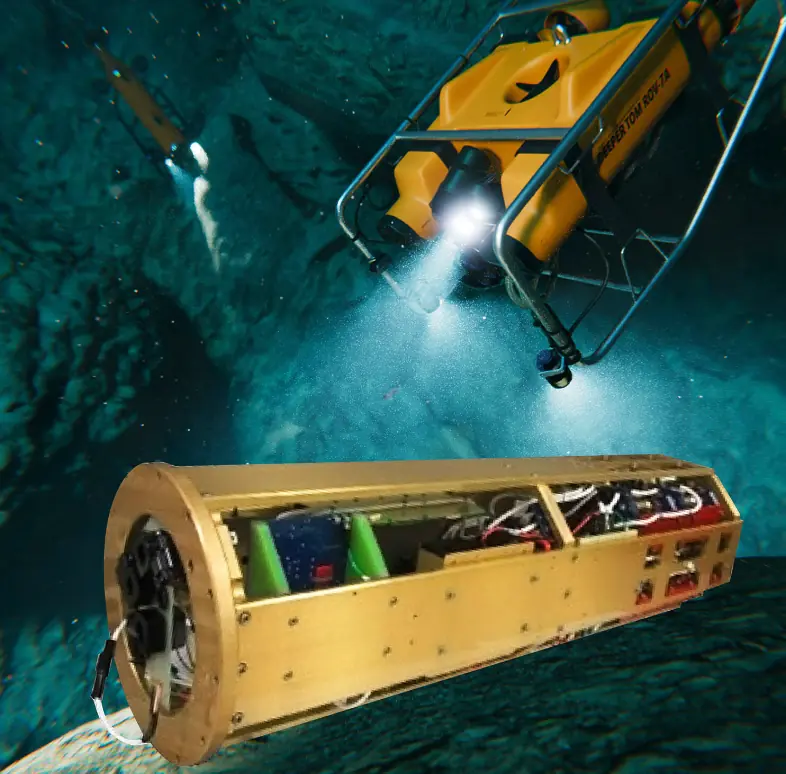

Unmanned aerial vehicles (UAVs), unmanned ground vehicles (UGVs), and underwater systems often rely on military PDUs for charging and operational power.
Rugged units enable these systems to remain functional in extreme conditions, supporting reconnaissance, logistics, and combat operations.
In deployed medical facilities such as field hospitals, high-reliability power units can supply energy to critical devices such as ventilators, diagnostic machines, and sterilization equipment.
Military portable power solutions, such as deployable power systems and field-ready power distribution units, are particularly valuable in these settings, providing reliable energy in remote or austere environments where lives depend on uninterrupted equipment operation.
Advanced weapon platforms, such as missile launchers, radar arrays, and electronic warfare systems, require stable and robust power supplies. PDUs enable these systems to operate effectively, even under demanding conditions, ensuring mission success.
PDUs are integral to tactical energy systems that combine generators, renewable energy sources, and energy storage solutions. These units manage and distribute power efficiently across base operations, reducing fuel consumption and logistical demands while maintaining operational readiness.
