Mil-Spec Circular Connectors for Military and Aerospace Applications
Mil-spec circular connectors provide secure, high-density electrical interfaces across platforms ranging from ground vehicles and combat aircraft to shipboard systems and soldier-worn devices. These connectors are governed by strict Department of Defense (DoD) and international standards, including MIL-DTL-38999, MIL-DTL-5015, MIL-DTL-26482, and MIL-DTL-83723.
They are selected not only for their technical characteristics, such as mechanical robustness, EMI/RFI shielding, and environmental sealing, but also for their lifecycle supportability, compliance with procurement regulations, and compatibility with platform modernization initiatives.
Role in Defense Systems Architecture

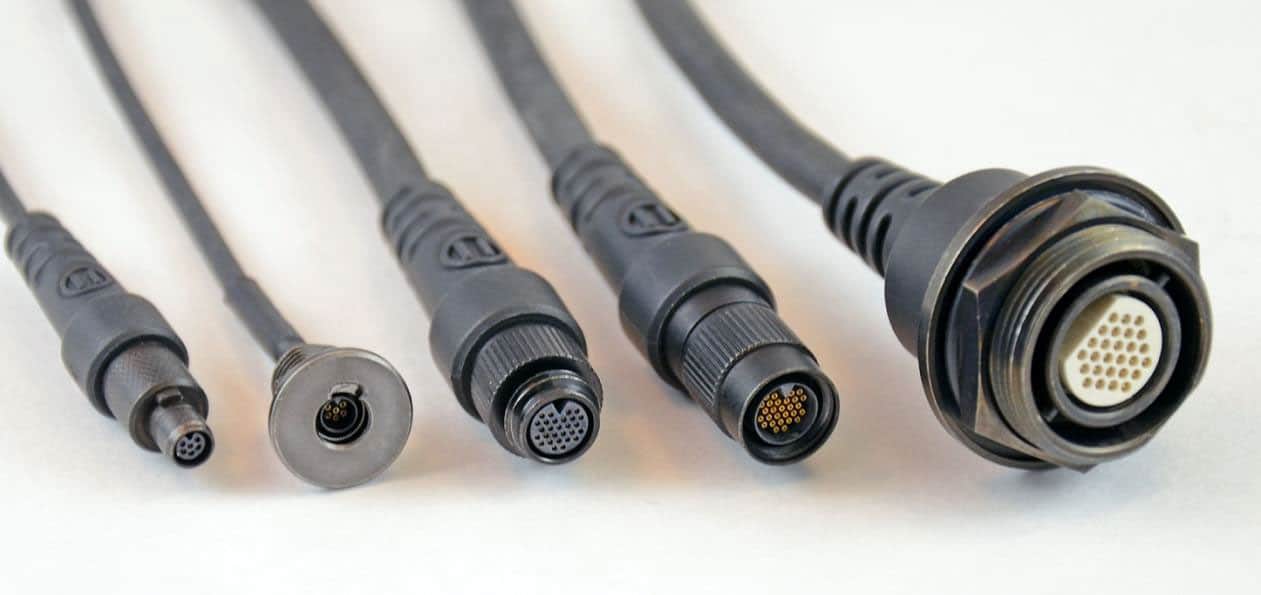

Mil spec circular connectors, Nano, from Omnetics.
In defense platforms, electrical interconnects are subject to harsh conditions, including extreme temperatures, vibration, electromagnetic interference, and exposure to contaminants such as fuel, oil, and salt water. Circular connectors are preferred over rectangular or modular types in many defense applications because they offer:
- Uniform stress distribution under mechanical load
- Efficient EMI shielding through 360° shell continuity
- High pin density in a compact form factor
- Compatibility with a broad range of backshells and strain relief solutions
- Standardization that supports multi-vendor sourcing and logistics simplification
For program managers and acquisition personnel, standardized connectors reduce integration risk, facilitate multi-source procurement, and align with MIL-STD and NATO STANAG requirements for interoperability.
Operational Use Cases
Ground Combat Systems
In main battle tanks, infantry fighting vehicles, and tactical wheeled vehicles, circular connectors interface with power distribution networks, navigation systems, digital communications gear, C4ISR systems, and turret-mounted sensors. Vibration, dust ingress, and moisture resistance are critical considerations.
Avionics and Aerospace
Onboard aircraft, including fighter jets, helicopters, and unmanned aerial systems (UAS), circular connectors are used in flight control systems, airborne radar modules, avionics data buses, and weapons carriage systems. MIL-DTL-38999 connectors are particularly prevalent due to their resistance to thermal cycling, EMI, and vibration.
Shipboard and Submarine Systems
Naval applications include sonar arrays, command consoles, propulsion control, and weapons systems. Connectors must comply with corrosion resistance standards and support IP68 or hermetically sealed configurations.
Soldier Systems
Wearable systems such as night vision devices, tactical manpack radios, and battery-powered electronics use miniature circular connectors. These connectors must be compact, lightweight, easily connected under stress, and sealed against environmental ingress.
Space and Strategic Platforms
Circular connectors adapted for space use must meet NASA outgassing standards, radiation resistance thresholds, and thermal stress performance criteria. Custom MIL-DTL-38999 derivatives are often used in satellite and missile guidance systems.
Additional Use Cases for Mil-Spec Circular Connectors
- Electronic Warfare Systems: Interconnects for jamming equipment, RF modules, and SIGINT gear requiring EMI shielding and frequency integrity
- Mobile Command Centers: Power and data connectors for expandable shelters, ground control stations, and TOC equipment
- Satellite Communications Ground Stations: Environmental-sealed interfaces for SATCOM antennas, tracking systems, and power control cabinets
- Military Robotics and UGVs: Connections for drive control, sensors, and communications in unmanned ground systems
- Radar and Sensor Arrays: High-density connectors for phased-array radar modules and distributed sensor systems
- C-UAS Systems: Connectors in mobile counter-drone platforms where ruggedization and rapid deployment are critical
- Portable Surveillance Kits: Interfaces in mobile video and acoustic surveillance systems used by special forces and reconnaissance units
- Mine Detection and EOD Systems: Hardened connectors for control interfaces in autonomous or manually deployed mine detection tools
- Environmental Monitoring Systems: Connectors in field-deployed radiological or meteorological sensing systems
- Simulation and Training Systems: Interfaces in motion platforms, synthetic training environments, and electronic warfare simulators
- Perimeter Defense and Border Monitoring: Field-installed connectors for ground sensors, UAV relays, and rapid-deploy surveillance assets
- Hardened Data Centers: Power and signal connectors used in mobile or containerized tactical computing facilities
Connector Types and Standards

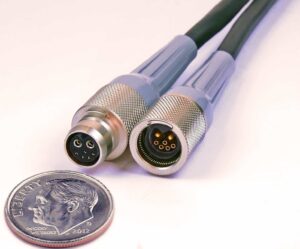

Circular mil spec connector by Omnetics, the Micro Circular range.
MIL-DTL-38999
This is the most widely used connector family in aerospace and high-performance defense applications. It includes:
Series I: Bayonet coupling, aluminum shell
Series II: Low-profile bayonet for high-density applications
Series III: Threaded coupling with high vibration resistance and EMI shielding
Series IV: Push-pull coupling for rapid disconnect
MIL-DTL-38999 connectors support over 100 insert arrangements, contact types (signal, power, coaxial, fiber optic), and shell configurations. They are rated for up to 200°C operation and 500–1,500 mating cycles.
MIL-DTL-5015
MIL-DTL-5015 connectors are rugged, threaded connectors typically used in legacy platforms and power distribution systems. They support high current, up to 150A in some configurations, and are known for their reliability in heavy-duty applications. While bulkier than newer types, they are valued for their backward compatibility and durability.
MIL-DTL-26482
Featuring bayonet-style coupling, this specification is commonly used in compact systems where moderate contact density is required. Its Series I and II versions include environmental sealing for field-deployed applications, including wearable technologies and portable electronics.
MIL-DTL-83723
This hybrid specification offers the environmental sealing and performance of MIL-DTL-38999 with size and cost advantages. It supports bayonet and threaded coupling mechanisms and is often used in rotary-wing aircraft, airframes, and shipboard control systems.
Material Considerations and Environmental Performance
Mil-spec circular connectors are constructed from corrosion-resistant metals such as aluminum alloy, stainless steel, or composite materials. Shell finishes may include:
- Cadmium plating for corrosion and EMI resistance (legacy systems)
- Zinc-nickel or electroless nickel as RoHS-compliant alternatives
- Anodized or composite shells for weight-sensitive applications
Connectors may include:
- Fluorosilicone or Viton O-rings for sealing against fuel and oil
- Thermoplastic or thermoset inserts for high dielectric strength
- Gold-plated contacts for low contact resistance and corrosion resilience
Environmental ratings typically include:
- Operating temperature: -55°C to +200°C
- Sealing: IP67/IP68 or hermetic
- Salt fog resistance: 48–500+ hours
- Shock and vibration per MIL-STD-810
Coupling Mechanisms and Contact Options
Procurement officials must account for connector mating styles and contact types. Bayonet couplings allow fast, tool-less mating, while threaded designs offer maximum resistance to vibration. Quick-disconnect push-pull types are used in field-serviceable systems.
Contact options include:
- Crimp: Field-repairable, supports modular pin replacement
- Solder: Stable electrical performance, less suitable for field use
- PCB-tail: Direct PCB mounting, used in compact modules
- Fiber optic: Used in high-bandwidth, secure systems
- Coaxial and triaxial: For RF signal integrity
Procurement and Supply Chain Considerations
For defense acquisition personnel, selecting circular connectors involves evaluating:
- QPL Status: Only connectors listed on the Qualified Products List (QPL) per the relevant MIL-DTL specification are acceptable for many government contracts
- Multi-source availability: MIL-spec connectors are standardized to support competitive sourcing and reduce single-vendor dependency
- Logistics support: Replacement parts, maintenance tools, and legacy compatibility must be verified for multi-year sustainment programs
- Configuration control: Shell size, contact layout, and plating must be standardized across platforms to simplify inventory
- Export compliance: ITAR/EAR-controlled components may require end-use declarations or licensing
Preferred vendors are often evaluated based on their DoD sourcing experience, JCP certification, and ability to provide traceability for all supplied parts.
Interoperability and Platform Modernization
Circular connectors are central to defense modernization and data interoperability efforts, particularly when integrating new electronics into legacy platforms. They enable:
- Modular Open Systems Approach (MOSA): Interchangeable modules across platforms
- Digital Backbone Compatibility: Support for Ethernet, CAN, and high-speed protocols
- Retrofit Potential: Drop-in compatibility with legacy connectors through adapter backshells
- Environmental Upgrade Paths: Ability to move from IP67 to hermetic sealing as needed
- Cross-platform standardization: Common connector specs across land, air, sea, and joint forces
For program offices and OEMs, specifying the right connector upfront reduces integration risk and streamlines testing, certification, and fielding timelines.
Standards Compliance and Testing Protocols
Mil-spec connectors must pass rigorous testing per NATO and U.S. military standards:
- MIL-STD-1344: Connector-specific mechanical, electrical, and environmental testing
- MIL-STD-202: Electrical characteristics, including dielectric strength, contact resistance, and insulation resistance
- MIL-STD-810: Environmental resilience—shock, humidity, thermal cycling, and vibration
- STANAG 4290 / 1005 / 4074: NATO standards for electrical interoperability
- NASA/ESA standards: Required for connectors adapted for space use
Testing includes lifecycle performance (mating cycles), mechanical endurance, insertion/extraction force, EMI shielding effectiveness, and fluid exposure resistance.
Emerging Technologies
The next generation of circular connectors is evolving with the needs of high-speed digital battlefield environments:
- Miniature Form Factors: Enabling wearable and UAV platforms
- High-speed contacts: Supporting USB 3.0, Ethernet connectors, HDMI, and optical fiber
- Composite housings: Weight reduction without compromising EMI shielding
- Hybrid connectors: Power, signal, and RF combined in one housing
- Integrated EMI filtering: To meet MIL-STD-461 requirements within the connector body
These advances are critical for integrating edge computing, artificial intelligence, and secure communications into future force structures.
