Z3 Technology

Z3 Technology is a leading developer and manufacturer of video encoding and IP camera solutions. Made in the USA, our NDAA and TAA-compliant products solve the bandwidth issues that HD and 4K video streaming and recording have traditionally suffered from, and deliver low latency to meet the requirements of near real-time data transmission.

With less than 5W of power consumption, Z3’s encoder boards are ideal for a wide range of mission-critical military, defense and government applications, including ISR (intelligence, surveillance and reconnaissance), security, and low-SWaP (size, weight and power) robotics.

MVE-R16

Four-slot rackmount system for encoder and decoder blades

The MVE-R16 is a 19″ format rack-mountable frame designed to support up to four video encoder or decoder blades, for a total of up to 16 channels. Each channel supports 1080p60 and 1080i to 480i resolutions.

The versatile system supports HDMI and SDI encoding, and SDI and composite decoding. It can be controlled via a user-friendly web-based GUI, or an API that allows integration into your own custom software.

Learn more: MVE-R16 Four-slot rackmount system

HE4K-R4

Rackmount system with four independent H.264 encoders

The HE4K-R4 incorporates four independent systems that each support H.264 encoding in resolutions up to 4K Ultra HD, with HDMI inputs and Gigabit Ethernet outputs.

Designed as a 1RU rackmount system, the HE4K-R4 is easy to store and deploy, and is ideal for security, surveillance and remote monitoring applications. It can be easily controlled via a user-friendly GUI.

Learn more: HE4K-R4 Rackmount system

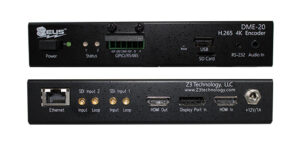

DME-20

Compact H.265 & H.264 video encoder providing 4K and HD resolutions

The DME-20 is a small form factor H.265 and H.264 video encoder that supports up to 4Kp30 and is capable of simultaneous streaming and recording. Providing low latency and with a low power consumption, it is ideal for military video applications requiring low bit-rate streaming or near-real-time capabilities.

The versatile unit can be controlled via a user-friendly web-based GUI, ONVIF, SSH/serial, or an API. It can record either to a USB device or a network file system, and can be equipped with optional cybersecurity capabilities.

Learn more: DME-20 Compact H.265 & H.264 video encoder

Zcube-21

Portable H.265/HEVC & H.264 video encoder with up to three simultaneous output streams

The ZCube-21 is a low-power and small form factor H.265/HEVC, H.264 and MJPEG encoder system. Capable of accepting 4K video at 30 frames per second, it can produce up to three IP output streams that can be sent via standard Ethernet. The ZCube-21 features a secure locking HDMI input and output, and offers simultaneous streaming and recording.

The portable system can be controlled via a user-friendly web-based GUI with live video preview, or via ONVIF, SSH/serial, or an API. It can record either to a USB device or a network file system, and can be equipped with optional cybersecurity capabilities.

Learn more: Zcube-21 Portable H.265/HEVC & H.264 video encoder

Q603-SC

Compact board-level H.265/HEVC and H.264 video encoder and streamer

The Q603-SC is a compact board-level H.265/HEVC and H.264 encoder that can be easily integrated into a variety of systems and platforms. Capable of accepting 3G-SDI, composite, or digital video input, it can produce an IP output stream that can be sent via standard Ethernet.

The versatile system allows simultaneous streaming and recording to either a Network File System, USB device or MicroSD card. It can be controlled via a user-friendly web-based GUI with live video preview, or via ONVIF, SSH/serial, or an API.

Learn more: Q603-SC Compact board-level video encoder

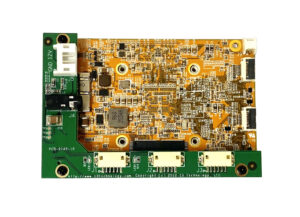

FV2K-15A

Low-SWaP Full HD dual-camera encoder for surveillance applications

The FV2K-15A is a low-SWaP dual camera encoder that can accept two LVDS cameras or one LVDS and one composite, and allows one camera to be an infrared or night vision system. With a compact design consisting of two PCBs, it is ideal for small military UAS and robotic systems.

The compact unit draws just 4.5W of power, and can encode multiple channels of H.265 and H.264 video in HD resolutions, as well as supporting MJPEG compression. It allows simultaneous streaming over IP and recording to a microSD card.

Learn more: FV2K-15A Low-SWaP Full HD dual-camera encoder

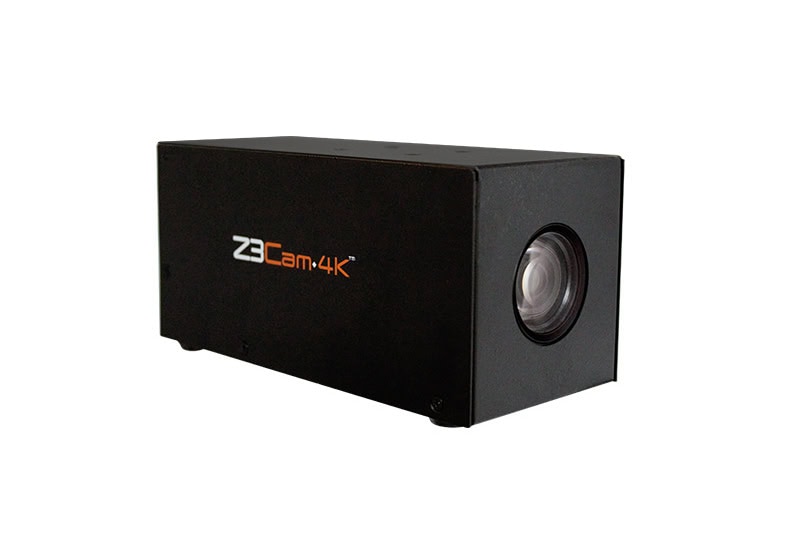

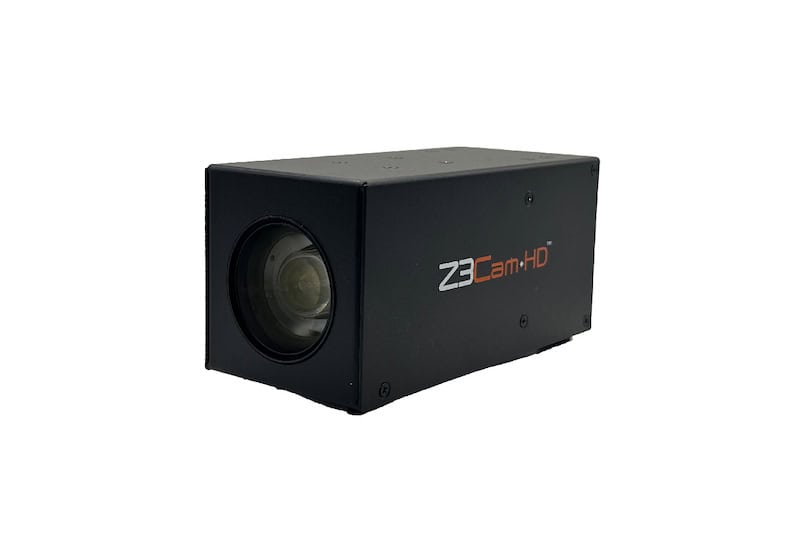

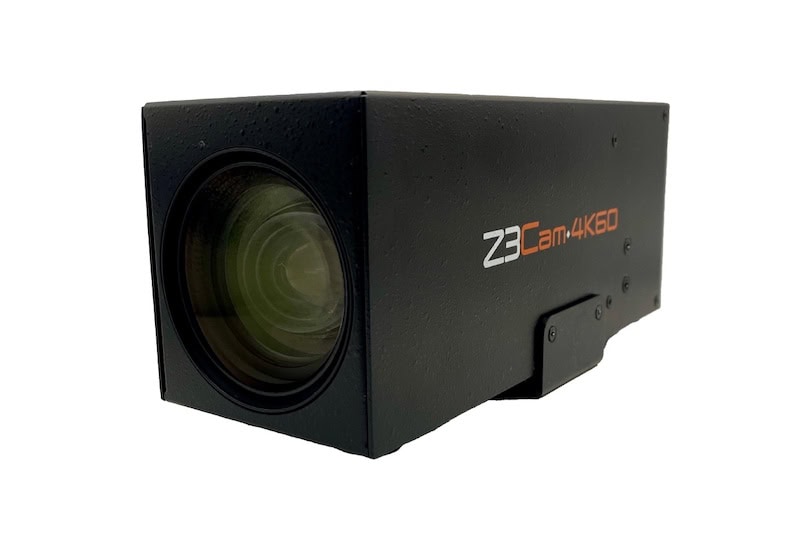

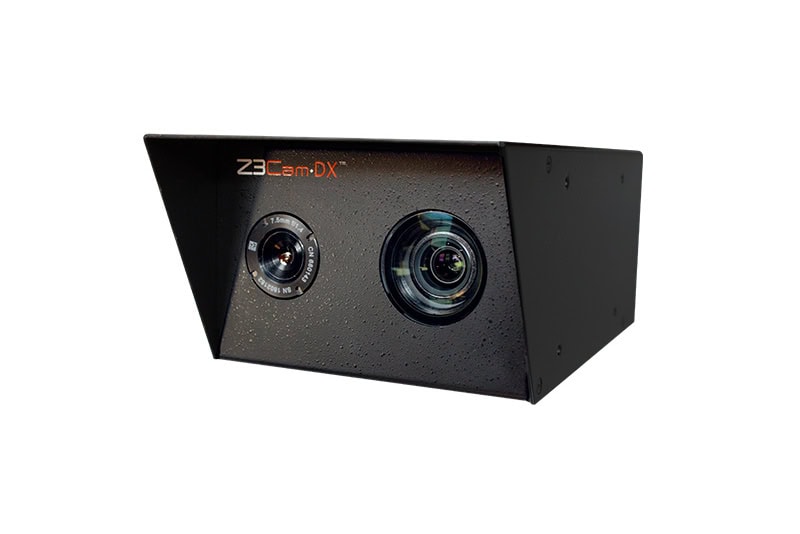

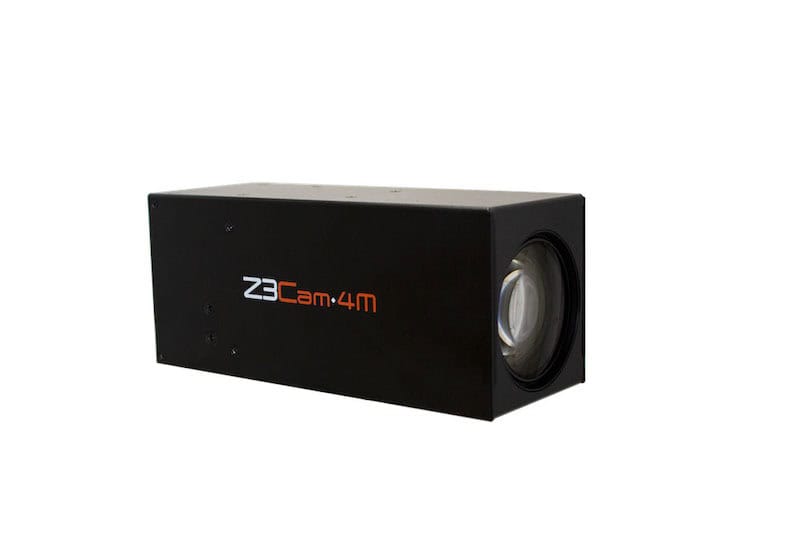

Z3Cam

H.265/H.264 IP cameras for efficient HD & 4K video streaming

Z3Cam IP cameras combine Sony imaging technology with efficient H.265/HEVC and H.264 encoding for real-time HD and 4K video over constrained networks. The range supports remote web-based control, Sony VISCA commands, CDN and social-platform streaming, and ONVIF integration with compatible video management systems.

Learn more: Z3Cam H.265/H.264 IP cameras
