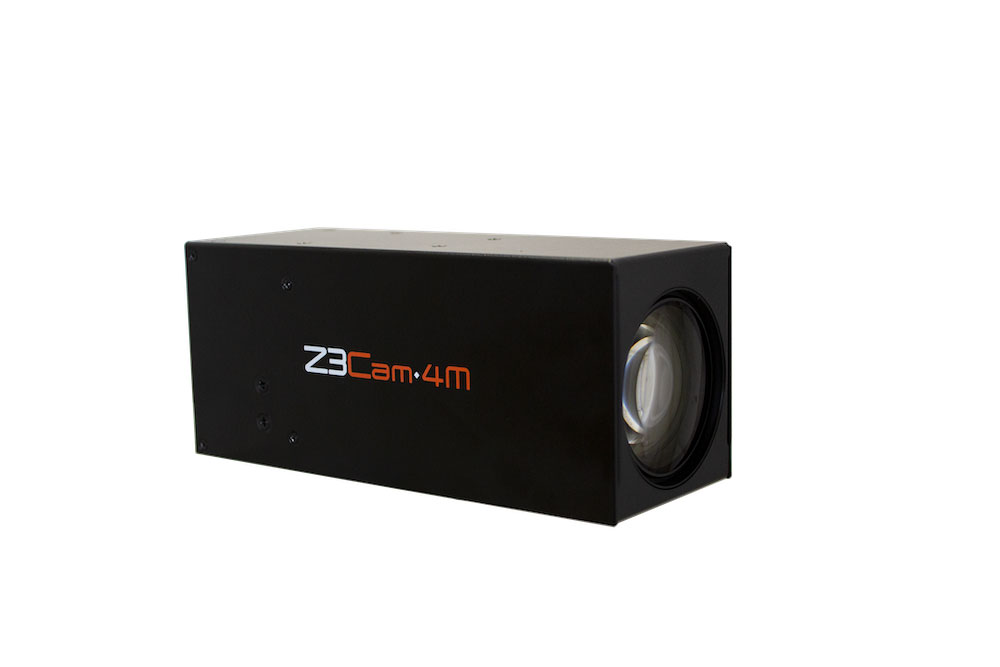

The Z3Cam-4M Z9500 is an NDAA-compliant H.265 4K IP camera combining Z3 Technology video compression with Sony FCB-EW9500H imaging. It provides 30x enhanced optical zoom at 4K and 40x enhanced optical zoom at 1080p, together with 130 dB wide dynamic range, day-and-night sensitivity, seven-blade iris flare reduction, image stabilization, defog processing, noise reduction, and ICR-on-color low-light imaging. Its compact, low-power design supports unmanned, surveillance, inspection, broadcast, and medical applications, including deployments requiring TAA-compliant equipment.
The Z3Cam-4M Z9500 streams H.265, H.264, or MJPEG video at resolutions up to 2160p30, with RTP, RTSP, MPEG-2 TS, RTMPS, and SRT output. It supports simultaneous streaming and recording, multi-line text overlays, unicast and multicast delivery, and compressed recording to USB or NFS storage. Camera and streaming functions are accessible through the Z3 web interface, while Sony VISCA over IP, ONVIF Profile S and T, and Pelco-D enable integration with external control systems. A seven-pin serial interface accommodates PTZ commands, GPS overlays, and additional accessories.
Specifications:
| Dimensions (L x W x H): | 165 x 65 x 70 mm (6.5 x 2.56 x 2.76 in) |
| Weight: | 807 g (1.78 lb) |
| Camera Zoom: | 30x Sony enhanced optical zoom at 4K 40x Sony enhanced optical zoom at 1080p |
| Power Consumption: | 9 W typical while encoding H.265/HEVC video |

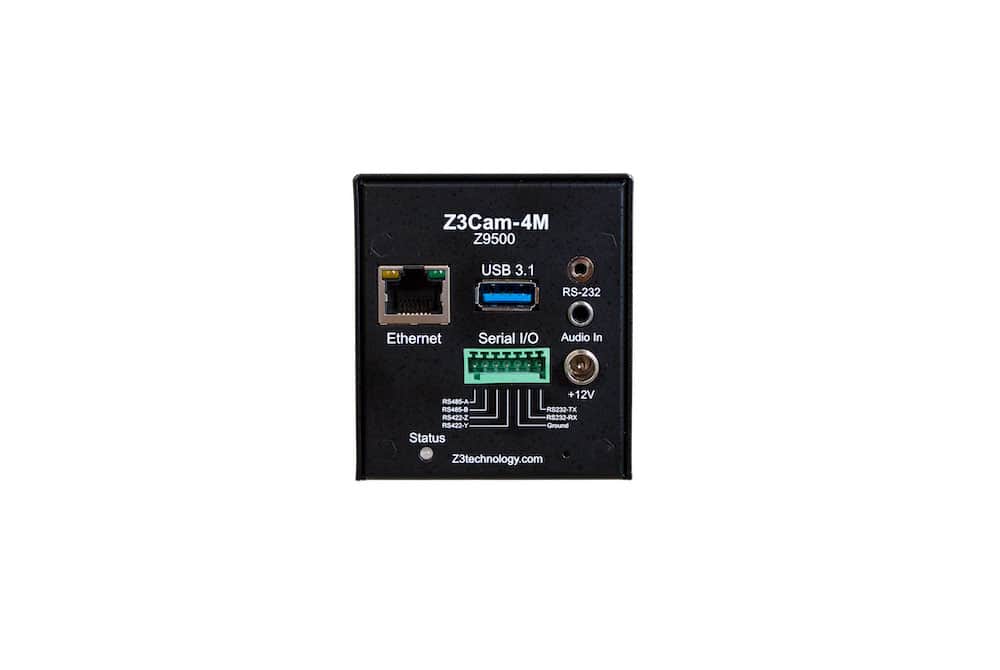

| Interfaces: | Gigabit Ethernet, USB 3.1, audio input, seven-pin Phoenix connector, and RS-232 |
| Decoder Options: | ZEUS® SME-01 and DMD-4K hardware decoders PC decoding and ONVIF support |
