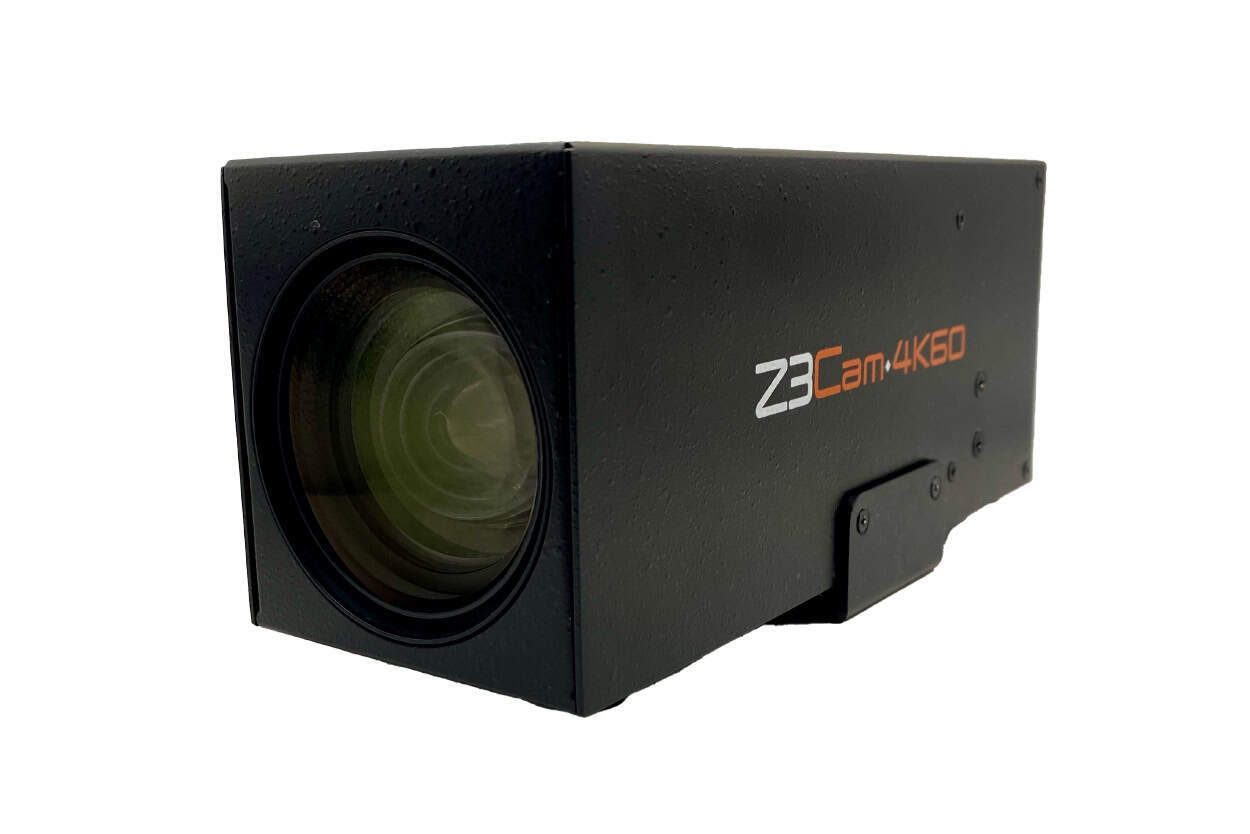

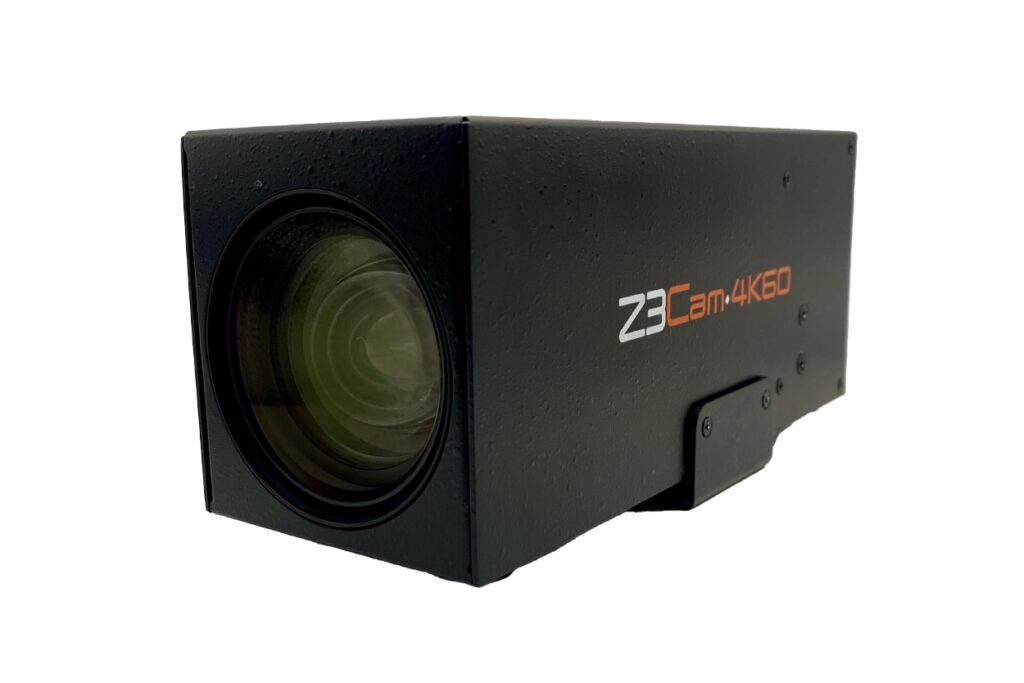

The Z3Cam-4K60 is a real-time H.265 IP camera that streams full-resolution 4K video at 60 fps using the Sony FCB-ER9500 block camera. It provides 25x optical zoom and up to 30x Stable Zoom, supported by wide dynamic range, image stabilization, and low-light imaging performance. These capabilities suit unmanned, security, surveillance, industrial, medical, and broadcast deployments requiring detailed UHD video from a remotely controlled camera.
The Z3Cam-4K60 can transmit 4K and HD streams simultaneously while carrying video and metadata across the network. Operators can configure imaging functions through Z3 Technology’s web interface, pass Sony VISCA commands over IP, and integrate the camera through ONVIF Profiles S and T. Video-overlay tools and NTP server connectivity support synchronized monitoring workflows, while PoE and multiple serial standards provide flexible installation and control options.
Specifications:
| Dimensions (L x W x H): | 164 x 61 x 62 mm (6.5 x 2.4 x 2.4 in) |
| Weight: | 829 g (1.83 lb) |
| Camera Zoom: | 25x optical zoom Up to 30x using Sony Stable Zoom |
| Power Consumption: | 13 W typical while encoding H.265/HEVC video |

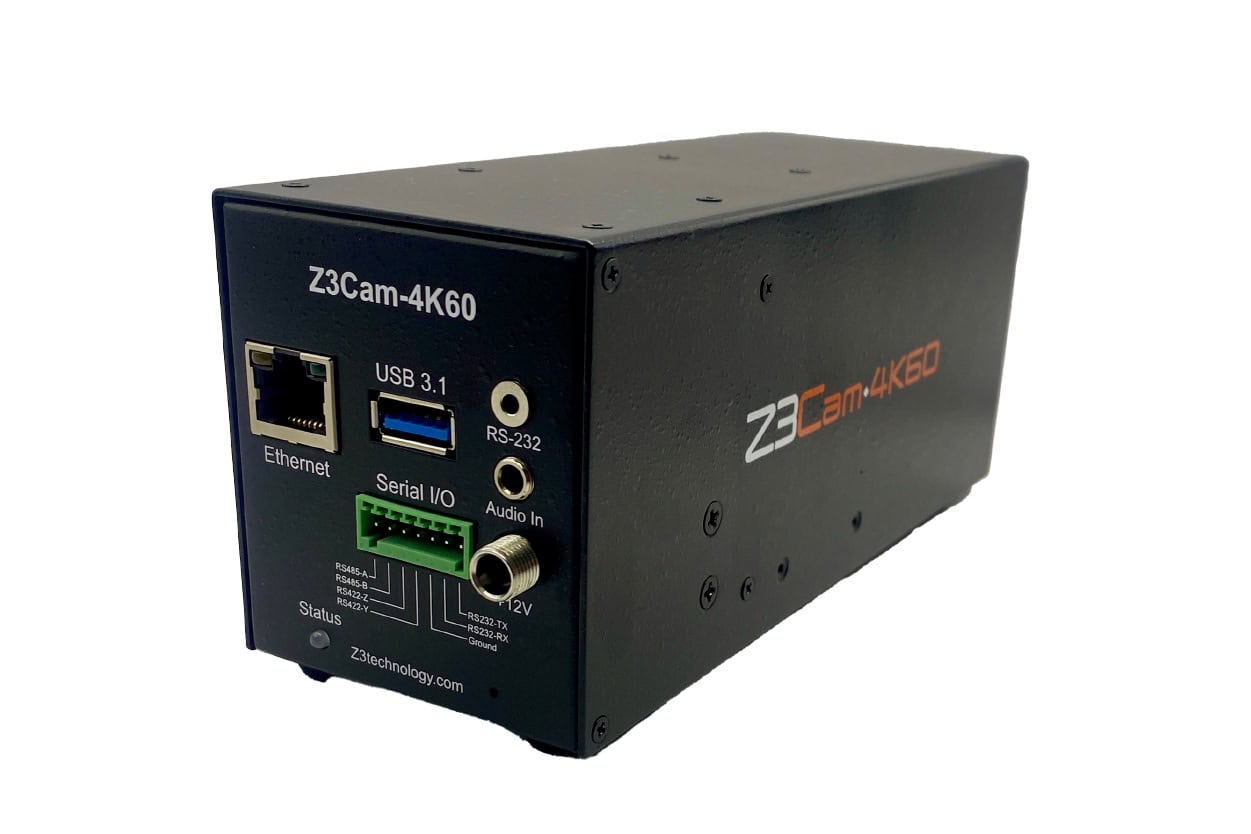

| Interfaces: | Gigabit Ethernet, USB 3.1, audio input, composite output, RS-232, and serial I/O supporting RS-485, RS-422, and RS-232 |
| Decoder Options: | 2160p60 H.265/HEVC PC decoding |
