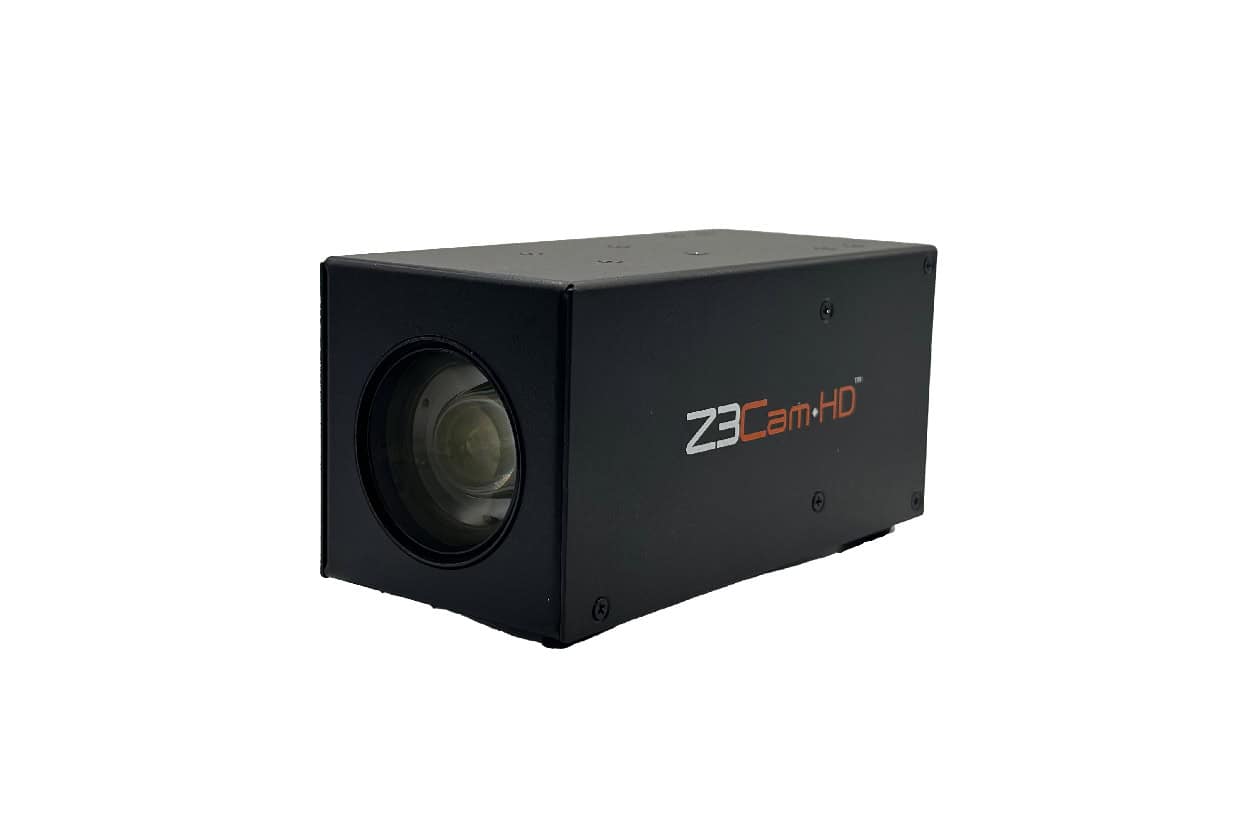

The Z3Cam-HD Z9520 is an NDAA- and TAA-compliant H.265 HD IP camera built around the Sony FCB-EV9520L camera block. It provides Full HD imaging with 30x optical zoom, Super and Super+ stabilization, 2D/3D noise reduction, wide dynamic range, visibility enhancement, and automatic day-and-night ICR. A high-sensitivity processor supports low-light operation, while spherical privacy-zone masking and region-of-interest functionality provide additional control for UAV, aerospace, inspection, remote-monitoring, security, surveillance, and other unmanned applications.
The Z3Cam-HD Z9520 encodes H.265, H.264, or MJPEG video at HD resolutions up to 1080p60 and can stream or record multiple resolutions and bitrates concurrently. Output protocols include RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, and SRT, with caller, sender, rendezvous, and encrypted SRT modes. Operators can use the Z3 web interface, an HTTPS control interface with live preview, API access, serial or SSH commands, Sony VISCA over IP, Pelco-D, or ONVIF Profiles S and T. The camera also supports unicast and multicast transmission, USB or NFS recording, PoE, GPS data overlays through its seven-pin serial connection, and hardware or PC-based decoding.
Specifications:
| Dimensions (L x W x H): | 132 x 61 x 61 mm (5.2 x 2.4 x 2.4 in) |
| Weight: | 698 g (1.5 lb) |
| Camera Zoom: | 30x optical zoom at Full HD resolution |
| Power Consumption: | Less than 8 W typical while encoding H.265/HEVC video |

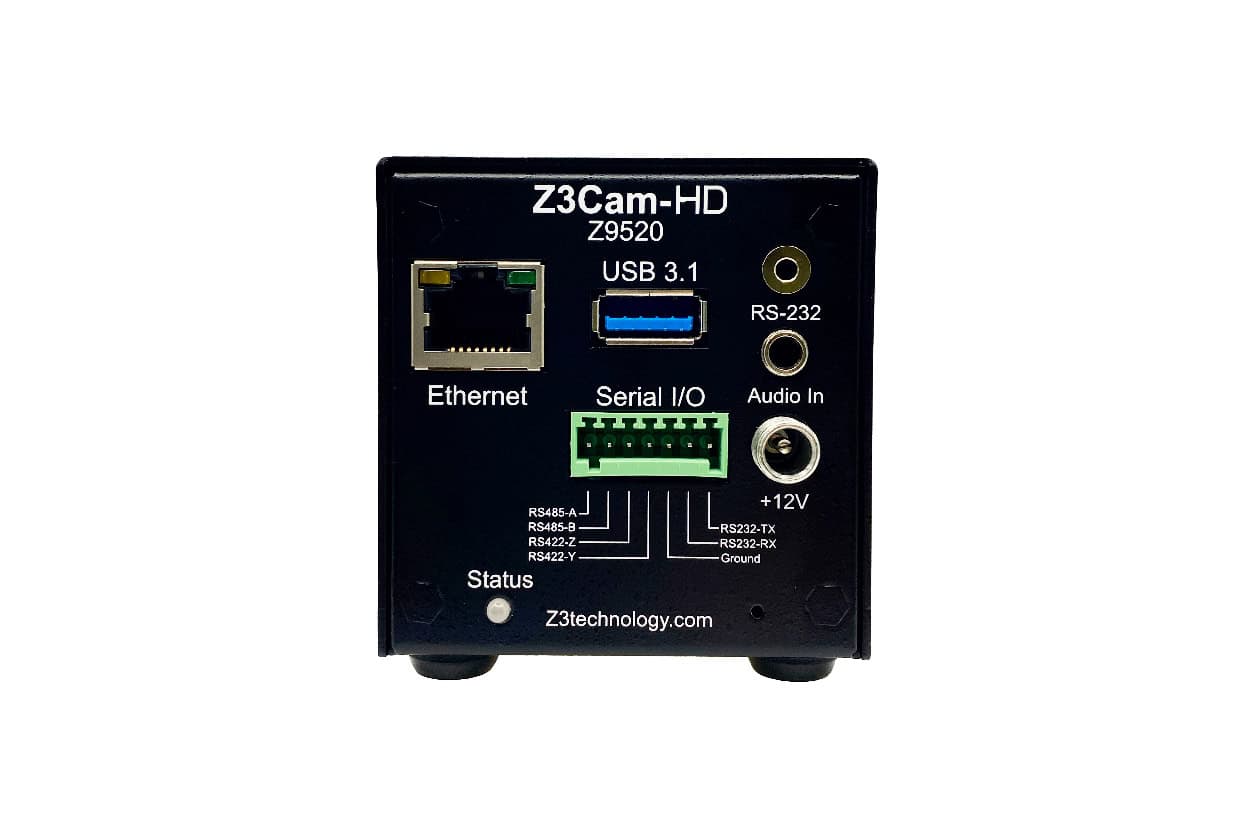

| Interfaces: | Gigabit Ethernet, USB 3.1, audio input, seven-pin Phoenix connector, and RS-232 serial I/O |
| Decoder Options: | ZEUS® SME-01 and DMD-4K hardware decoders PC decoding and ONVIF support |
