applied acoustics

applied acoustics is a pioneering developer of world-leading marine and subsea navigation, positioning and survey technologies for naval and defense applications. Backed by many years of experience, we support military organizations in the UK and abroad with innovative solutions that deliver stable and precise performance under the demanding conditions of real-world deployments.

Our products are engineered to withstand harsh operating environments and include rugged solutions rigorously tested to MIL specifications.

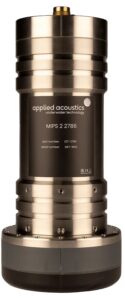

Product Spotlight: MIPS 2

Advanced USBL tracking system for subsea naval applications

MIPS 2 is the latest generation of our advanced USBL Mobile Integrated Positioning Systems, offering accurate and highly stable tracking and positioning of naval assets such as ROVs, AUVs and divers. Specifically approved for military use, the compact and rugged transceiver is also ideal for mine countermeasures (MCM) and vessel underhull inspection.

The MIPS 2 features integrated pitch, roll, heading, depth and temperature sensors, and can be easily integrated into a variety of platforms via a high-speed serial link. It is available in two variants, offering either hemispherical or directional acoustic footprints.

USBL Systems

The Easytrak range of Ultra Short Baseline (USBL) systems ensures reliable and precise tracking of multiple simultaneous naval assets, including divers, ROVs, AUVs and towfish. The ultra-reliable systems are also ideal for UXO and mine survey positioning, vessel inspection, and tactical seabed mapping.

Featuring built-in pitch, roll and heading sensors to compensate for vessel movement, the Easytrak line offers a variety of options to suit differing mission requirements. Products include:

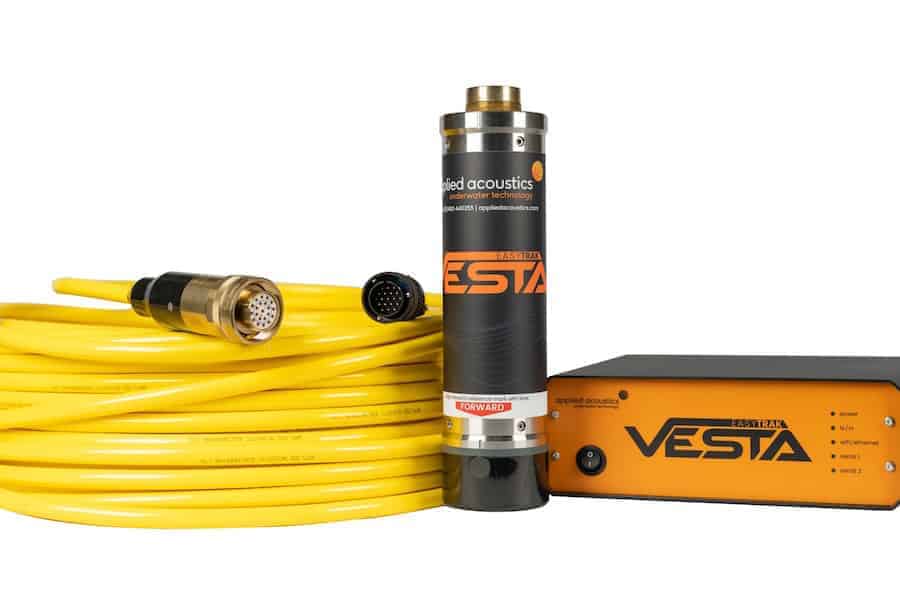

• Vesta – compact entry-level system with 995m range
• Nexus 2 Lite – cost-effective tracking of up to 10 simultaneous targets

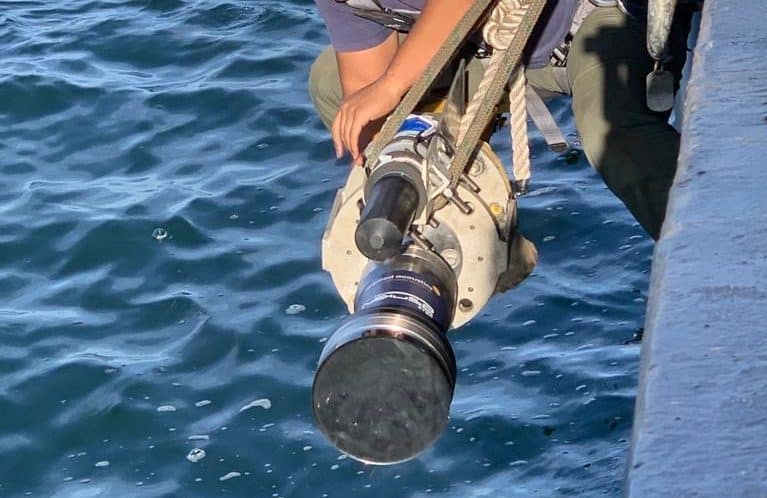

• Nexus 2 – provides long-range tracking of up to 16 simultaneous targets
• Pyxis – combined USBL & INS for survey-grade performance & very shallow-water tracking
• MIPS 2 – advanced military-grade transceivers with hemispherical or directional acoustic footprints

Acoustic Positioning Beacons

Our rugged acoustic positioning beacons are designed to fulfil a wide range of tracking and positioning applications, offering industry-leading signal stability and easy selection transmit and receive frequencies.

Options include:

• 1300 Series (Micro) – 600m survival depth, 45-day listening life
• 1100 Series (Mini) – 1500-2000m survival depth, 60-day listening life
• 1130 Series (Midi) – 4000m survival depth, 90-day listening life
• 1160 Series (Fatboy) – 4000m survival depth, 90-day listening life
• 1150 Series (Seabed) – 4000m survival depth, 120-day listening life

Submersible GNSS & Satellite Positioning

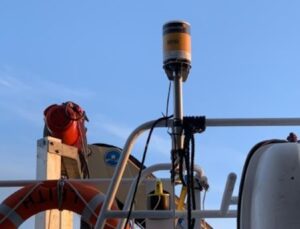

The MiniPod line of submersible GNSS receivers provides precise surface positioning and remote monitoring for naval UUVs and ROVs, as well as UXO crawler robots, towed sensors, seismic sources, and other equipment. The rugged receivers are designed for ultra-reliable operation in the harsh marine conditions of the transition zone.

The product range includes:

• 101G – L1 & L2 GNSS, 50m depth rating
• 201G – L1/L2/L5 RTK GNSS, 50m depth rating
• 103G – L1 & L2 GNSS, 1000m depth rating
• 106G – L1 & L2 GNSS, 6000m depth rating

Sub-Bottom Profiling Solutions

Our comprehensive range of sub-bottom profiling solutions is ideal for detection of buried sea mines, UXO (unexploded ordnance), and other hazardous threats that may otherwise be invisible to regular detection methods. These products are also highly suited to tactical seabed terrain mapping applications such as planning of covert operations.

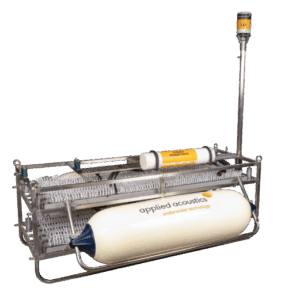

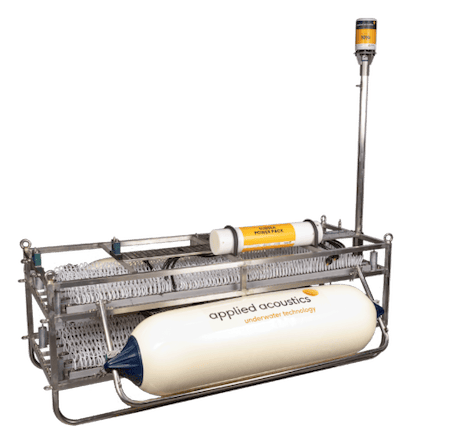

The industry-leading products, which include the HydraSeis multi-channel streamer, hydrophones, and seismic energy sources such as boomers and sparkers, create a 2D picture of the geology beneath the seabed. Thanks to their modular and versatile design, components can be combined to suit specific environmental requirements such as coastal or deep waters and soft sediment or harder rock.
