Embedded Navigation Solutions for Unmanned Systems
VectorNav is a leading developer of embedded inertial navigation solutions designed for integration into cutting-edge and mission-critical technologies.
VectorNav’s SWaP-C optimized tactical- and industrial-grade GNSS-aided Inertial Navigation Systems provide high performance and capability for unmanned systems operating in defense, military, aerospace, and marine industries worldwide.
We develop Inertial Measurement Units that deliver high-output rate, low-noise accelerometer, gyroscope and magnetometer data, and are fully calibrated across the full temperature range of -40 °C to +85 °C. All our units incorporate an onboard Attitude, Heading and Reference System (AHRS) algorithm for real-time, continuous 360° attitude (yaw, pitch and roll) output, providing optimal heading estimates even in challenging magnetic environments.
Our GNSS-aided INS, featuring industry-leading inertial navigation algorithms, deliver higher-accuracy estimates and better dynamic performance than standalone GNSS or INS.
Outputting accelerometer, gyroscope and magnetometer data, as well as attitude, position, velocity and timing, our GNSS/INS go beyond what products of their size and weight typically deliver.
 VN-100 miniature IMU/AHRS |
| Gyro In-Run Bias: 5°/hr |
| Pitch/Roll: 0.5° |
| Accel In-Run Bias: < 0.04 mg |
 VN-110 tactical IMU/AHRS |
| Static Pitch/Roll: < 0.05˚ |
| Gyro In-Run Bias: 0.6°/hr |
| Accel In-Run Bias : < 10 µg |
 VN-200 miniature GNSS/INS |
| Dynamic Heading: 0.2° |
| Dynamic Pitch/Roll: 0.03° |
| Gyro In-Run Bias: 5°/hr |
| Accel In-Run Bias: < 0.04 mg |
 VN-210 tactical GNSS/INS |
| Dynamic Heading: 0.05˚- 0.1˚ |
| Dynamic Pitch/Roll: 0.015˚ |
| Gyro In-Run Bias: 0.6°/hr |
| Accel In-Run Bias: < 10 µg |

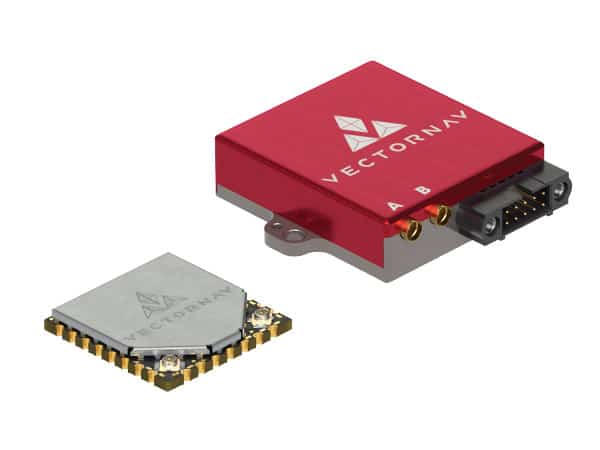

 VN-300 miniature Dual GNSS/INS |
| GNSS-Compass Heading (1m): 0.15° – 0.3° |
| Dynamic Heading: 0.2° |
| Dynamic Pitch/Roll: 0.03° |
| Gyro In-Run Bias: 5°/hr |
 VN-310 tactical Dual GNSS/INS |
| GNSS-Compass Heading (1m) : 0.15° – 0.3° |
| Dynamic Heading : 0.05°- 0.1° |
| Dynamic Pitch/Roll : 0.015° |
| Gyro In-Run Bias : 0.6°/hr |
Find out more: Tactical Inertial Navigation Solutions >
Control Center gives you the tools to visualize and inspect the diverse set of output data made available by your VectorNav sensor.
Features include:
Find out more: VectorNav Control Center >
We’ve authored a comprehensive educational introduction to the principles of inertial navigation. Our Inertial Navigation Primer includes coverage of:
