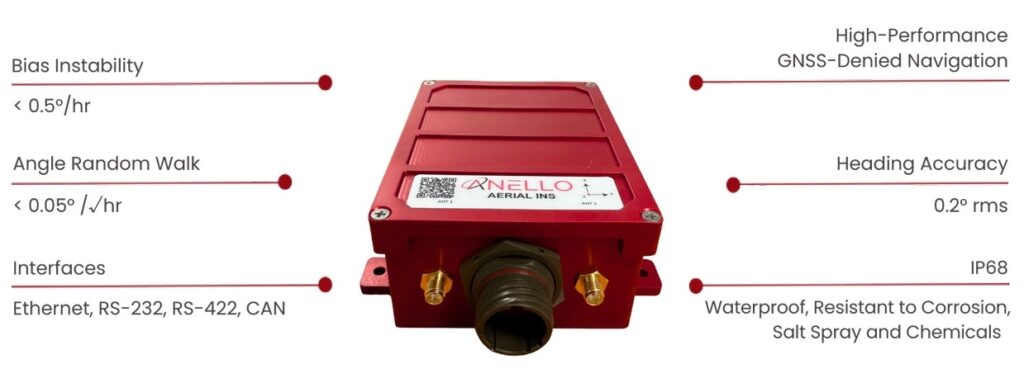

The ANELLO Aerial INS is a precision inertial navigation system developed to deliver reliable positional data and attitude accuracy for defense and autonomous aerial operations where satellite signals are compromised or unavailable. Leveraging ANELLO’s proprietary SiPhOG™ optical gyroscope technology, the system achieves reference-grade navigation performance, maintaining sub-degree heading stability and precise motion tracking during dynamic flight conditions.
Engineered for tactical-grade resilience, the system incorporates dual triple-frequency GNSS receivers with intelligent spoofing detection powered by the ANELLO AI Sensor Fusion Engine, ensuring robust situational awareness even under electronic interference. With a compact, low-power architecture and IP68-rated protection against shock, vibration, and harsh environmental exposure, the ANELLO Aerial INS provides a dependable navigation backbone for unmanned and crewed aerial defense platforms requiring assured positioning integrity.
| Dimensions: | 4.4” x 3.4” x 1.9” |
| Weight: | 0.75 lbs |
| Power: | 5 to 30 VDC, < 6 W typical |
| Gyro Range: | 400°/s |
| Gyro Bias Instability: | < 0.5°/hr |
| ARW: | < 0.05°/√hr |
| Accel Range: | 16g |
| Accel Bias Instability: | 10μg |
| VRW: | 0.03 m/s/√hr |
| Positioning Accuracy: | SPS: 1.2 m cep RTK: 0.02 m cep 60s GNSS Outage: < 1.0 m RMS |
| Velocity Accuracy: | 0.03 m/s RMS |
| Heading Accuracy: | 0.2o RMS |
| Pitch/Roll Accuracy: | 0.05o RMS |
| GNSS Signals: | GPS, GLONASS, Beidou, Galileo, QZSS, NavIC, SBAS, all L-band signals |
