AMCORIS, a specialized spinoff brand from Channel Microelectronic, is an expert provider of advanced motion sensing technologies for autonomous systems and robotics within the military, defense and government sectors.

Acting as a distributor for Epson’s sensing systems, our product portfolio serves OEMs and systems integrators who require the utmost in performance and reliability for both current and future navigation, stabilization and control applications.

With over 35 years of experience in the semiconductor industry and a proven track record in custom electronics and sensor design, we maintain an extensive network of partners, suppliers and customers around the world, and can offer international project management capabilities.

MEMS Inertial Measurement Units

Our high-performance MEMS IMUs (inertial measurement units) provide precision three-axis angular velocity and linear acceleration measurement in miniature and low-power packages, with excellent stability thanks to a unique quartz crystal element design. The innovative sensors incorporate a suite of correction functions that maximize accuracy under demanding real-world conditions, including temperature, alignment, sensitivity and offset compensation.

AMCORIS IMUs are ideal for a range of military and aerospace requirements, including UAVs, ground robotics, submersible craft, and sensor and weapons platform stabilization.

M-G366PDG
Best SWaP-C
24 x 24 x 10 mm
±450°/s gyro range, ±8/16g accelerometer range
1.2°/h bias instability
0.08°/√h ARW
SPI/UART interface

M-G370PDG
High Performance
24 x 24 x 10 mm
±450°/s gyro range, ±8/16g accelerometer range
0.8°/h bias instability
0.06°/√h ARW
SPI/UART interface

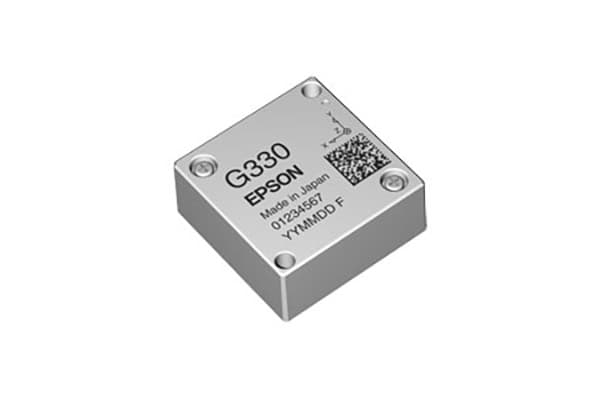

M-G330PDG
Entry Level
24 x 24 x 10 mm
±400°/s gyro range, ±8/16g accelerometer range
3°/h bias instability
0.1°/√h ARW
SPI/UART interface

M-G370PDT
24 x 24 x 10 mm
±200°/s gyro range, ±8/16g accelerometer range
0.8°/h bias instability
0.03°/√h ARW
SPI/UART interface

M-G355QDG
24 x 24 x 10 mm
±450°/s gyro range, ±8/16g accelerometer range
1.2°/h bias instability
0.08°/√h ARW
SPI/UART interface

M-G570PR
65 x 60 x 30 mm
±475°/s gyro range, ±15g accelerometer range
0.5°/h bias instability
0.04°/√h ARW
RS-422 interface

M-G552 Series
65 x 60 x 30 mm
±450°/s gyro range, ±10g accelerometer range
0.8°/h bias instability
0.06°/√h ARW
J1939 interface (CANopen or RS-422)

Free IMU Evaluation Kits available on loan to qualified customers and developers

Find out more

Accelerometers

Our quartz accelerometers offer a range of advantages over standard MEMS technologies, including enhanced accuracy and stability, and provide digital outputs for easy integration into sensor systems. The product range includes IP67-rated models for operation in harsh environmental conditions, as well as options for SPI/UART, CAN and serial interfaces.

The compact units output robust and reliable linear acceleration data for precision autonomous systems navigation and control, and are also ideal for vibration and tilt sensing.

M-A370AD
48 x 24 x 16 mm
±10g range
210 Hz bandwidth
1000 sps output rate
SPI/UART interface

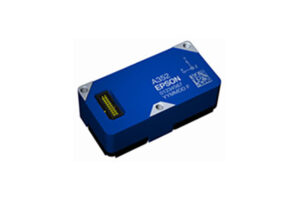

M-A352AD
48 x 24 x 16 mm
±15g range
460 Hz bandwidth
1000 sps output rate
SPI/UART interface

M-A552AC1
48 x 24 x 16 mm
±15g range
460 Hz bandwidth
1000 sps output rate
CANopen interface

M-A552AR1
48 x 24 x 16 mm
±15g range
460 Hz bandwidth
1000 sps output rate
RS-422 interface

Vibration Sensors

Our vibration sensors utilize innovative quartz micromachining technology to provide precise and stable three-axis measurement of velocity and displacement associated with vibration. They feature a small form factor design and digital outputs for easy integration into existing systems, and a water- and dust-proof IP67-rated model is available for harsh-environment deployments.

The sensors are ideal for measuring vibration conditions and patterns in defense and aerospace equipment components such as motors and rotating machinery, enabling optimized operation and allowing for fault detection and predictive maintenance.

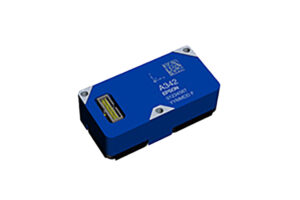

M-A342VD10
48 × 24 × 16 mm
±100 mm/s velocity range, ±200 mm displacement range
10 – 1000 Hz velocity frequency range, 1 – 100 Hz displacement frequency range
SPI/UART interface

M-A542VR10
60 x 60 x 30 mm
±100 mm/s velocity range, ±200 mm displacement range
10 – 1000 Hz velocity frequency range, 1 – 100 Hz displacement frequency range
IP67-rated RS-422 interface

Gyro Sensors

AMCORIS quartz gyro sensors are designed with a unique double-T structure crystal element, resulting in precision angular velocity outputs with stability levels that rival those of more expensive high-end gyroscope technologies.

The ultra-reliable sensors are ideal for drone attitude control and stabilization applications in defense robotics, and the product line also includes automotive-grade models for autonomous ground vehicle applications.

XV7181BB
5.0 x 3.2 x 1.3 mm
+/- 115 or 460°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SPI or I²C interface

XV4311BD
5.0 x 3.2 x 1.3 mm
+/- 115 or 460°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SafeSPI interface

XV7021BB
5.0 x 3.2 x 1.3 mm
+/-400°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SPI or I²C interface

XV7081BB
5.0 x 3.2 x 1.3 mm
+/-400°/s rate range
+/- 1°/s typical bias
0.065°/√h ARW
SPI or I²C interface

XC1011SD
(combined automotive gyro & accelerometer sensor)
6.5 x 5.2 x 1.9 mm
+/-160°/s rate range
+/- 30g acceleration range
+/- 3°/s typical bias
SPI interface
