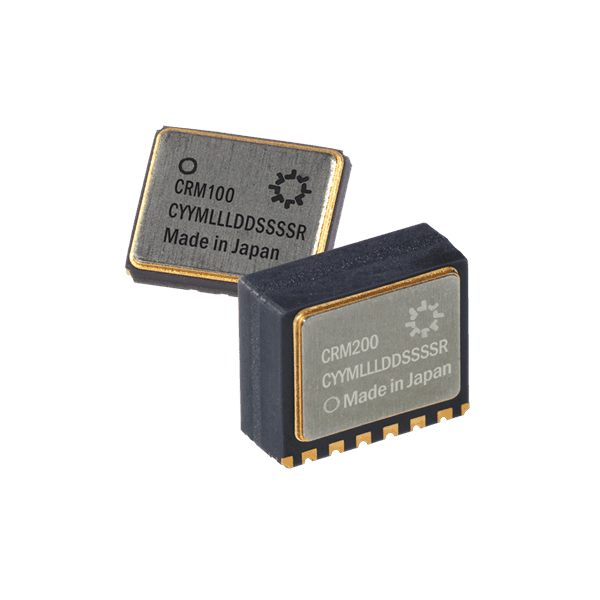

The PinPoint series features Silicon Sensing's smallest MEMS gyros, providing class-leading bias and noise over temperature for attitude sensing, precision navigation, antenna platform pointing applications, and many other applications. The single-axis gyros are available in two versions, one that can be mounted flat to a board and an orthogonal version that can be mounted on its side.
Enclosed in a hermetically-sealed ceramic LCC surface mount package, PinPoint gyros allow users to select from a number of dynamic range and bandwidth options, and provide both SPI digital output and an analogue output linearly proportional to angular speed. In addition to measurement data, the digital interface also outputs device temperature and built-in test (BIT) status.
|CRM100 (Flat)||CRM102 (Flat)||CRM200 (Orthogonal)||CRM202 (Orthogonal)|
|Dimensions||5.7 x 4.78 x 1.18 mm||5.7 x 4.78 x 1.18 mm||6.3 x 5.5 x 2.63 mm||6.3 x 5.5 x 2.63 mm|
|Weight||0.1 g||0.1 g||0.1 g||0.1 g|
|Rate Range||75, 50, 300, 900˚/s||225, 450, 900, 2700˚/s||75, 50, 300, 900˚/s||225, 450, 900, 2700˚/s|
|Bandwidth||Up to 160Hz (set by user via external capacitor)||Up to 160Hz (set by user via external capacitor)||Up to 160Hz (set by user via external capacitor)||Up to 160Hz (set by user via external capacitor)|
|Bias Instability||12˚ /hr||20˚ /hr||12˚ /hr||20 /hr|
|ARW||0.2˚ /√hr||0.8˚ /√hr||0.2˚ /√hr||0.8˚ /√hr|
