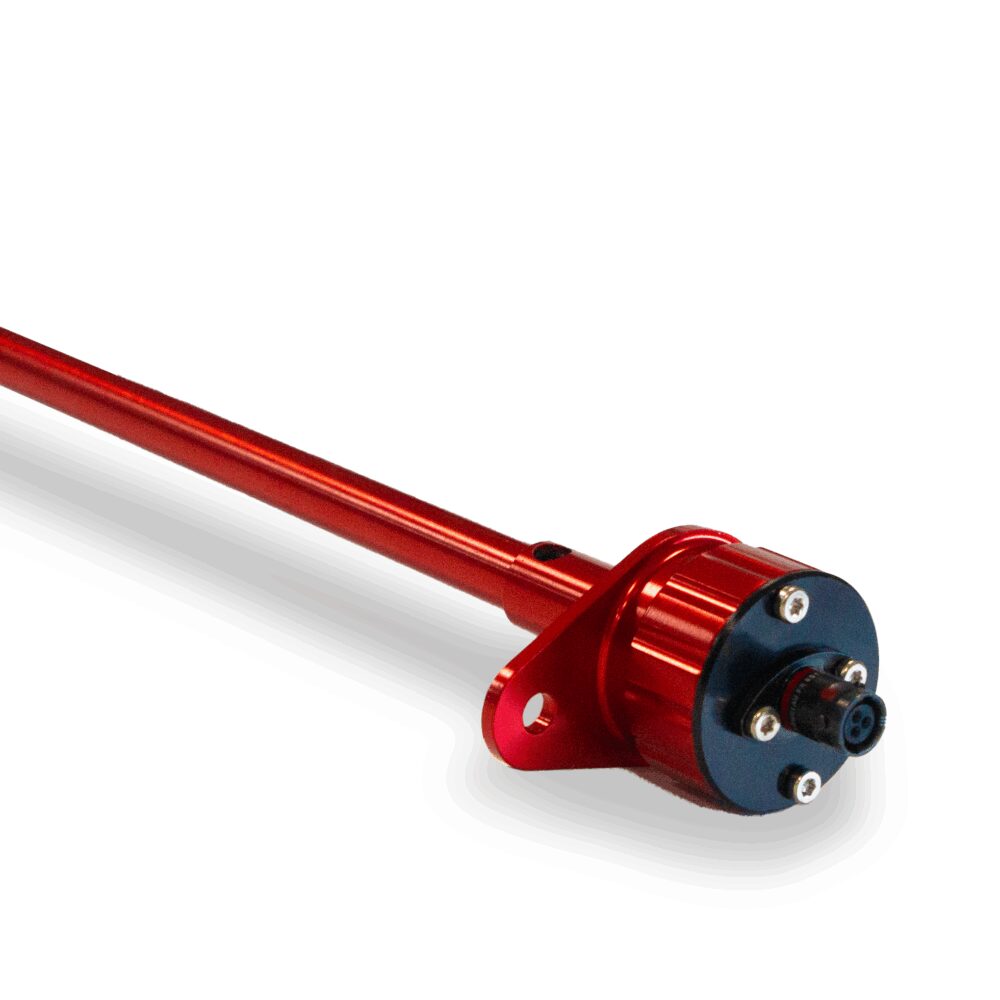

The LSM100-MICRO from Reventec is a micro, ultra-lightweight fluid level sensor engineered to deliver precise monitoring in confined military applications. Its solid-state capacitive design provides continuous, accurate readings regardless of orientation—making it ideal for UAVs, armored vehicles, and other systems with tight spatial constraints. With a rapid 100 Hz sampling rate and ±0.5% reading accuracy, the sensor enables reliable fluid-level tracking without the need for mechanical maintenance.
Rated to IP68 and operable from –55 °C to +150 °C, the LSM100-MICRO withstands harsh environmental and EMC challenges (MIL‑STD‑461G, RTCA DO‑160F certified). Its integrated electronics support configurable analog (0–5 V), CAN, or dual outputs via a one-bolt mount design. With customizable lengths up to 300 mm and durable hard-anodized construction, it offers flexible integration and long-term durability for field-deployed defense systems.
| Feature | Specification |
|---|---|
| Measurement Rate | 100 Hz continuous |
| Accuracy | ±0.5% of reading |
| Output Options | Analog 0–5 V, CAN, or Analog & CAN |
| Ingress Protection | IP68 |
| Operating Temperature | –55 °C to +150 °C |
| Mounting | 1-bolt, compact footprint |
| Calibration & Electronics | Integrated electronics; no external CPU required |
| Custom Lengths | Up to 300 mm |
| Orientation Insensitive | Yes—installation angle independent |
| EMC Certification | MIL-STD-461G, RTCA DO-160F |
| Applications | UAVs, armored vehicles, fuel/oil tank monitoring |
