Two & Three Axis Gyroscopes (TAG)

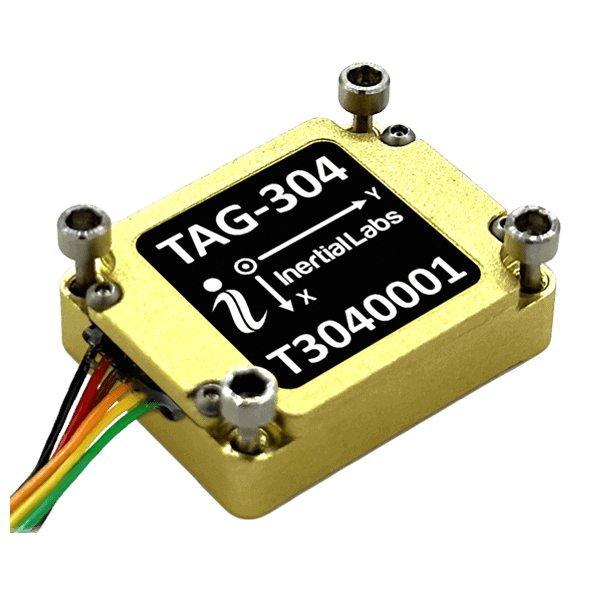

The TAG-200, TAG-300 and TAG-304 are tactical-grade two- and three-axis MEMS gyroscopes featuring low SWaP, noise and latency as well as a wide bandwidth. They are designed for stabilization and pointing applications such as antenna platforms and EO/IR gimbals for manned and unmanned aircraft.

The ITAR-free TAG gyros are engineered to withstand the harshest environments, with no moving parts and tested to MIL-STD-810 levels of shock and vibration. Each unit is factory-calibrated over the entire operation temperature range, and precision-machined to ensure extremely low non-orthogonality and misalignment between sensitive elements.

Specifications:
TAG-200 TAG-300 TAG-304
Number of Axes Two Three Three
Measurement Range ±450; ±950; ±2000 ±450; ±950; ±2000 ±2000
Data Update Rate 2000 Hz 2000 Hz 4000 Hz
Bias in-run Stability 2º/hour (Allan Variance, RMS) 2º/hour (Allan Variance, RMS) 2º/hour (Allan Variance, RMS)
Noise (ARW) 0.08º/√hour 0.08º/√hour 0.2º/√hour
Size (mm) 39 x 45 x 22 39 x 45 x 22 19.5 x 15.2 x 5.5
Weight (gram) 70 70 10
Applications Anti-Roll Systems, Computer Pointing Devices, Optical Image Stabilization Three Dimensional Optical Image Stabilization, Virtual Reality Guidance & Navigation, Electro-Optical Systems, Gimbals, Line-Of-Sight and Pan & Tilt Platforms Stabilization & Pointing
