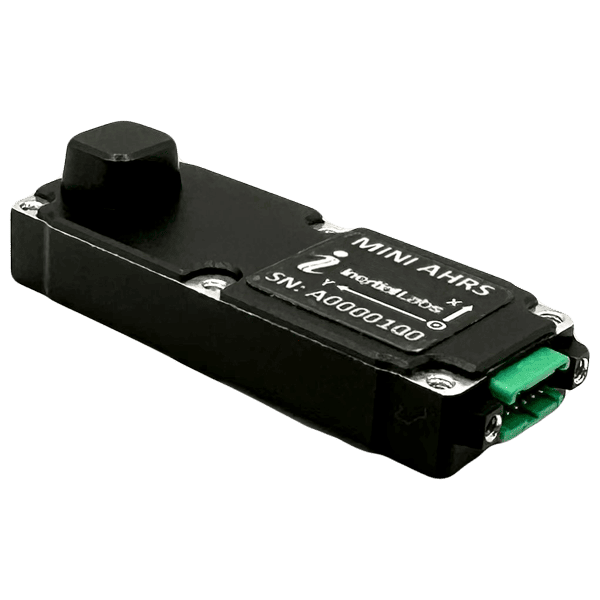

miniAHRS
The miniAHRS is a lightweight and compact attitude and heading solution that combines three axes of precision accelerometers, gyroscopes and fluxgate magnetometers with state-of-the-art Kalman filter-based sensor fusion to deliver robust high-accuracy heading, pitch and roll data for both static and dynamic applications.
The system features embedded 2D and 3D magnetic calibration for hard and soft iron, as well as specialized algorithms tailored to the differing motions of land, air and marine vehicle platforms, as well as gimbals and antennas. All sensing elements are fully calibrated over the entire operational temperature range for superior performance.
Specifications:| Dimensions | 53 x 19 x 13 mm |
| Weight | 20g |
| Power | 5-15 VDC, 0.5W |
| Output Data Rate | 1 – 2000 Hz |
| Gyro Bias In-Run Stability | 2 deg/hr |
| Gyro ARW | 0.38 deg/hr |
| Accel Bias In-Run Stability | 0.01 mg (±8g measurement range) |
| Accel VRW | 0.02 m/s/√hr (±8g measurement range) |
| Heading Accuracy |
0.3 deg static 0.6 deg dynamic |
| Pitch & Roll Accuracy |
0.05 deg static 0.08 deg dynamic |
