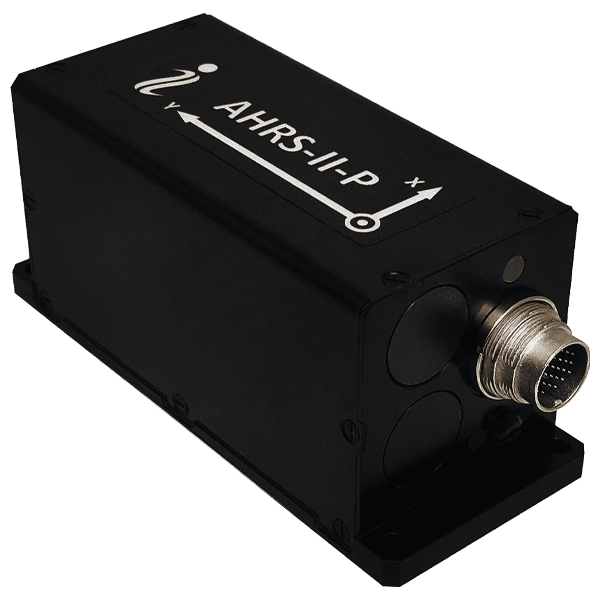

AHRS-II-P Tactical-grade AHRS for air, sea and land applications

Tactical-grade AHRS for air, sea and land applications

Visit Website Contact

The AHRS-II-P is a tactical-grade Attitude and Heading Reference System that utilizes precision 3-axis accelerometers and gyroscopes as well as an embedded fluxgate compass to provide heading, pitch and roll data, as well as high-frequency real-time device rotation data and ongoing gyroscope corrections.

The IP67-sealed device outputs high-accuracy data in both motionless and dynamic applications, and features advanced sensor fusion and specialist algorithms tailored to the specific dynamic motions of manned and unmanned aircraft, naval vessels, land vehicles, gimbals and antennas. All sensing elements are fully calibrated across the complete operating temperature range.

Dimensions 120 x 50 x 53 mm
Weight 280g
Power 9 – 36 VDC, 1.4W (2.4W with data logger)
Output Data Rate 1 – 200 Hz
Gyro Bias In-Run Stability 1 deg/hr
Gyro ARW 0.2 deg/hr
Accel Bias In-Run Stability 0.005 mg (±8g measurement range)
Accel VRW 0.015 m/s/√hr (±8g measurement range)
Heading Accuracy 0.3 deg static
0.6 deg dynamic (gyromagnetic)
0.1 deg dynamic (w/ GNSS input)
Pitch & Roll Accuracy 0.05 deg static
0.08 deg dynamic
