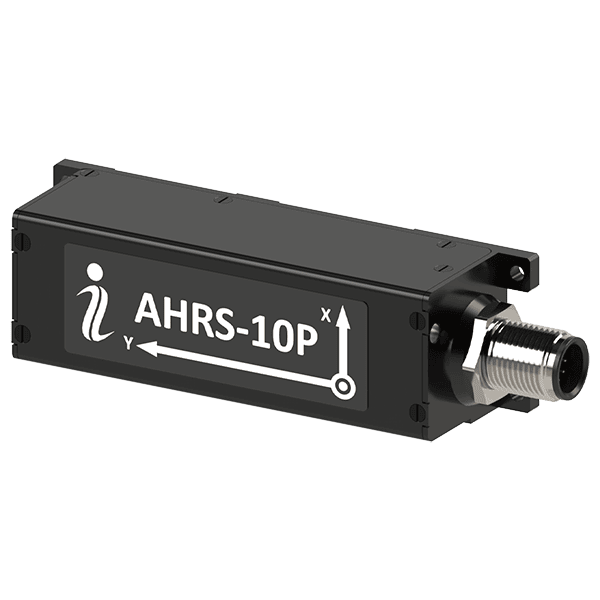

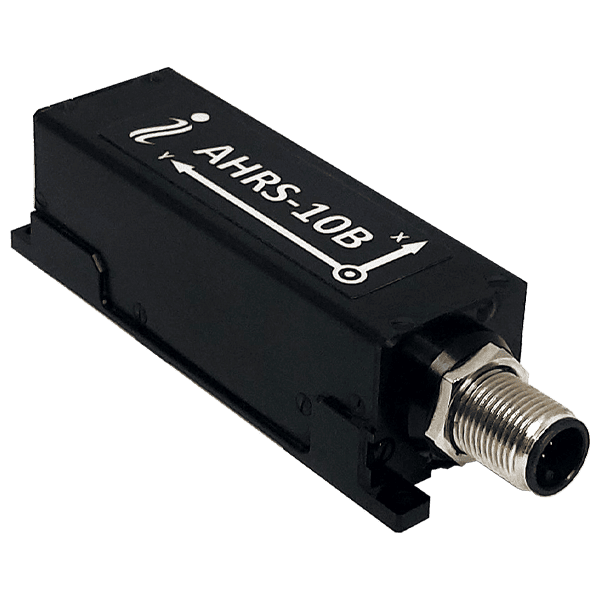

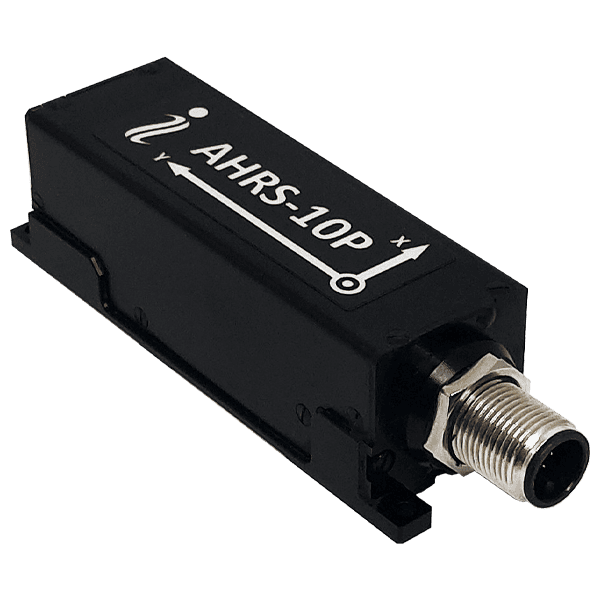

The AHRS-10 utilizes precision 3-axis accelerometers, magnetometers and gyroscopes to output high-accuracy absolute orientation data (heading, pitch and roll) for both motionless and dynamic applications, as well as real-time device rotation data and ongoing gyroscope corrections.
The solid-state sensor features advanced sensor fusion and specialist algorithms tailored to the specific dynamic motions of land, aerial and sea platforms, as well as gimbals and antennas. It is sealed to IP67 standards, and all sensing elements are fully calibrated across the complete operating temperature range.
The AHRS-10 also utilizes Inertial Labs' high-performance Fluxgate Magnetometer technology for enhanced stability and repeatability, making it an ideal solution for military and defense applications where superior accuracy is required. It is available in Basic and Professional performance variants.
| AHRS-10B | AHRS-10P | |
| Heading dynamic accuracy in temperature range, RMS | 0.6 deg | 0.6 deg |
| Pitch & Roll dynamic accuracy in temperature range, RMS | 0.05 deg | 0.03 deg |
| Gyroscopes Bias instability in temperature range, RMS | 72 deg/hr | 35 deg/hr |
| Accelerometers Bias instability in temperature range, RMS | 0.7 mg | 0.5 mg |

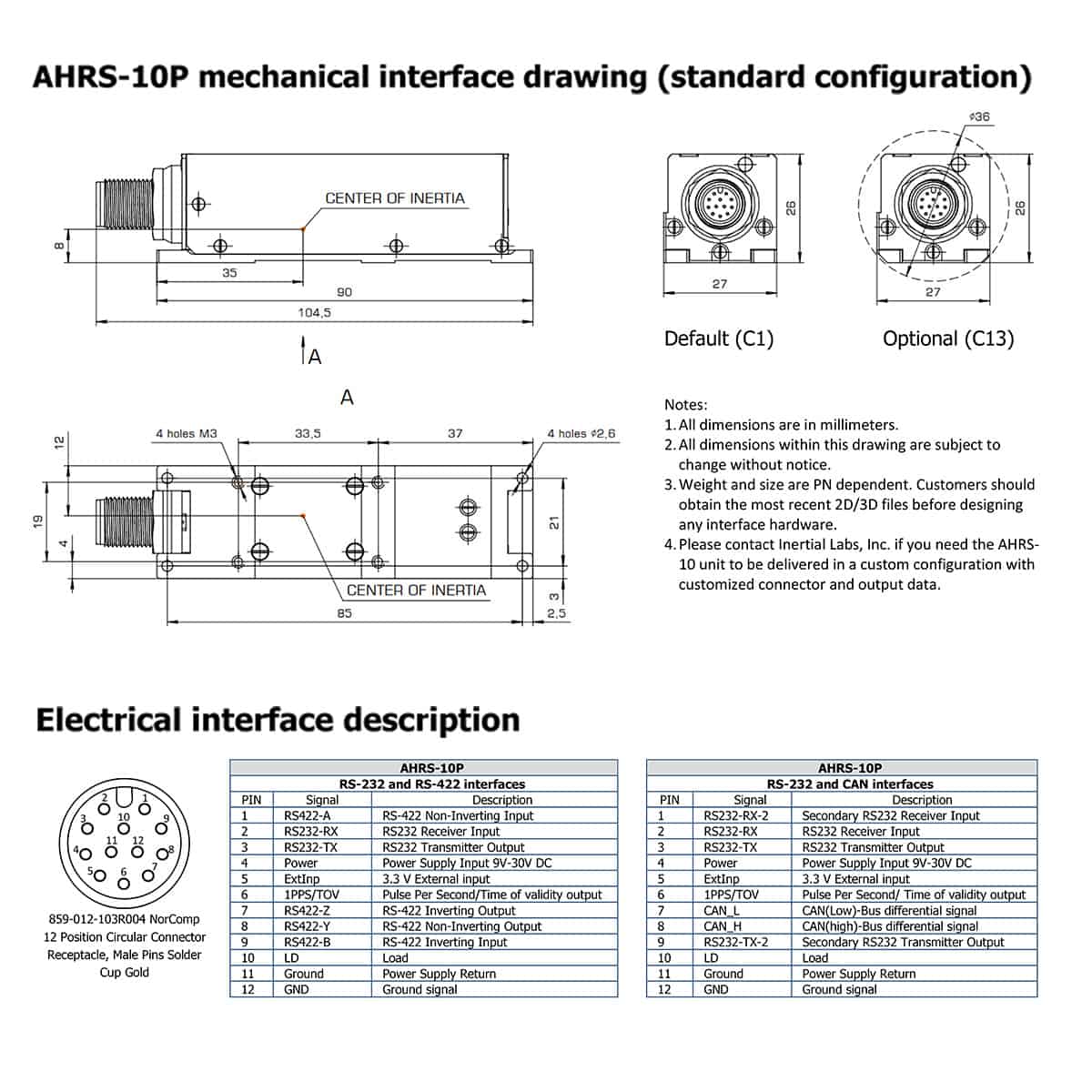

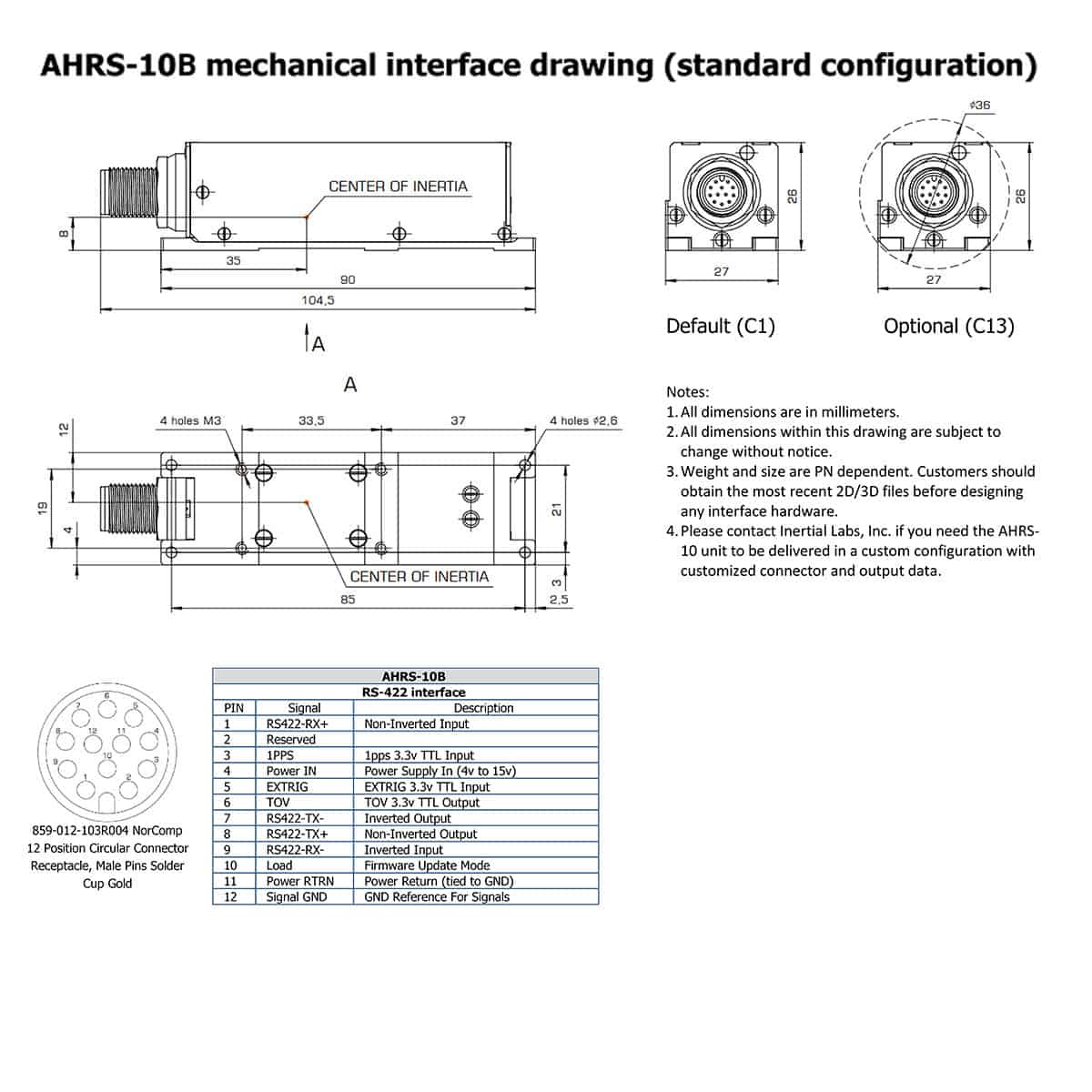

| Dimensions | 90 × 27 × 26 mm | 90 × 27 × 26 mm |
| Weight | 77 | 84 |
| Interface | RS-422 | RS-232, RS-422, CAN |
