HD45

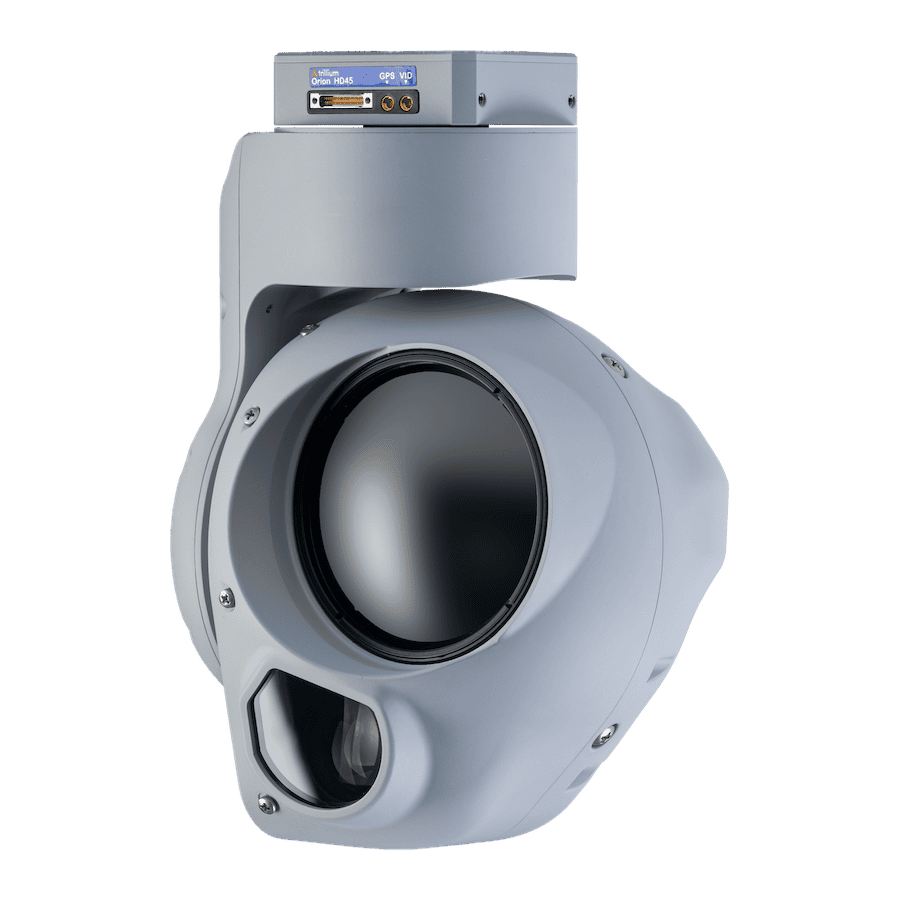

The HD45 is a lightweight and compact EO/IR camera gimbal housed in a machined magnesium enclosure with robust environmental sealing. Delivering 720p HD digital H.264-compliant video output, it is available with a 5x optical zoom uncooled LWIR camera and either 5x or 10x optical zoom visible camera, with an 850 nm night vision-compatible laser pointer as an additional option.
The onboard IMU can be optionally upgraded to deliver 1-degree accuracy, ensuring best-in-class real-time geopointing and geolocation for high-accuracy targeting. Advanced embedded video processing features include scene tracking and target tracking. The gimbal can be controlled via Ethernet or serial, and video can be output via Ethernet or analog interface.
| HD45-LV-CZ | HD45-LV-CZ-GS | |
| Dimensions (D x H) | 5.3 x 7.3” | 5.3 x 7.3” |
| Weight | 1280g | 1330g |
| Power Consumption | 15W average, 75W peak | 15W average, 75W peak |
| Cameras |
720p 3x zoom Rolling Shutter Visible LWIR 640 with 5x continuous zoom lens |
720p 10x zoom Global Shutter Visible LWIR 640 with 5x continuous zoom lens |
| FOV | Visible: 47.7° – 1.8° |
Visible: 54° – 4.9° Thermal: 18.2° |
| Export | BIS-controlled | BIS-controlled |
