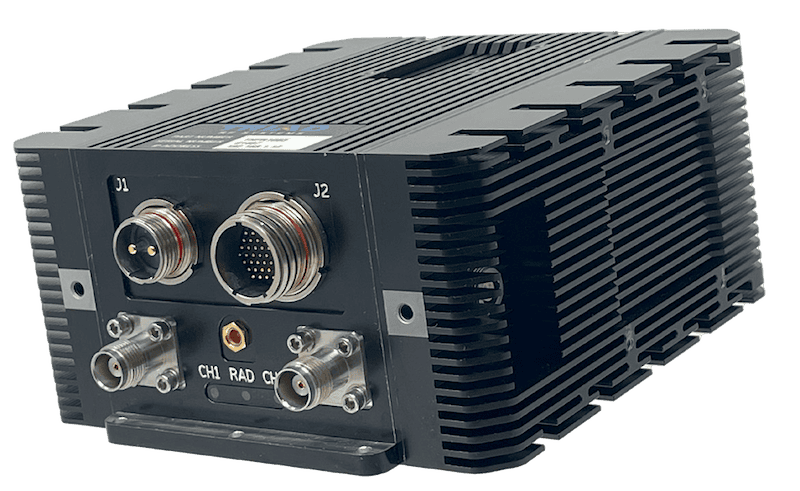

The THPR1077 Range Enhanced DTC Radio System integrates a DTC SOL8SDR-C-470043 radio core with Triad high-power RF subsystems in a compact, low-SWaP package. Built as a two-channel, C-Band amplified radio, it combines the DTC unit with RF amplification, filtering, control electronics, and interfaces in one assembly. Operating from 4400 to 5000 MHz, the THPR1077 delivers 40 W of total THPR power to support increased RF output, higher throughput, and longer link distances than the standalone radio.
Designed for +16 to +32 VDC input, the THPR1077 includes bidirectional amplifiers (BDAs), RF filtering, and SoC-based monitoring and control functions. Real-time power measurement and link diagnostics provide direct visibility into system behavior, while the 5.5 x 5.42 x 2.8-inch enclosure consolidates radio, amplification, and supervisory electronics. The resulting architecture is suited to defense communications where extended C-Band reach is required without adding separate high-power RF hardware.
| Model: | THPR1077 |
| Radio Core: | DTC |
| Band: | C |
| MIMO Streams: | 2 |
| Frequency Low: | 4400 MHz |
| Frequency High: | 5000 MHz |
| Total THPR Power: | 40 W |
| Size: | 5.5 x 5.42 x 2.8 in |
