Orion

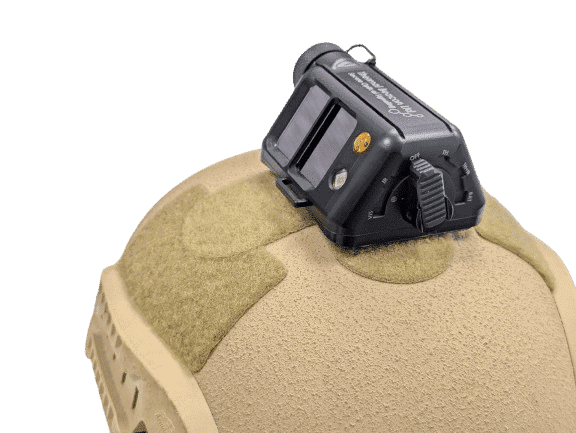

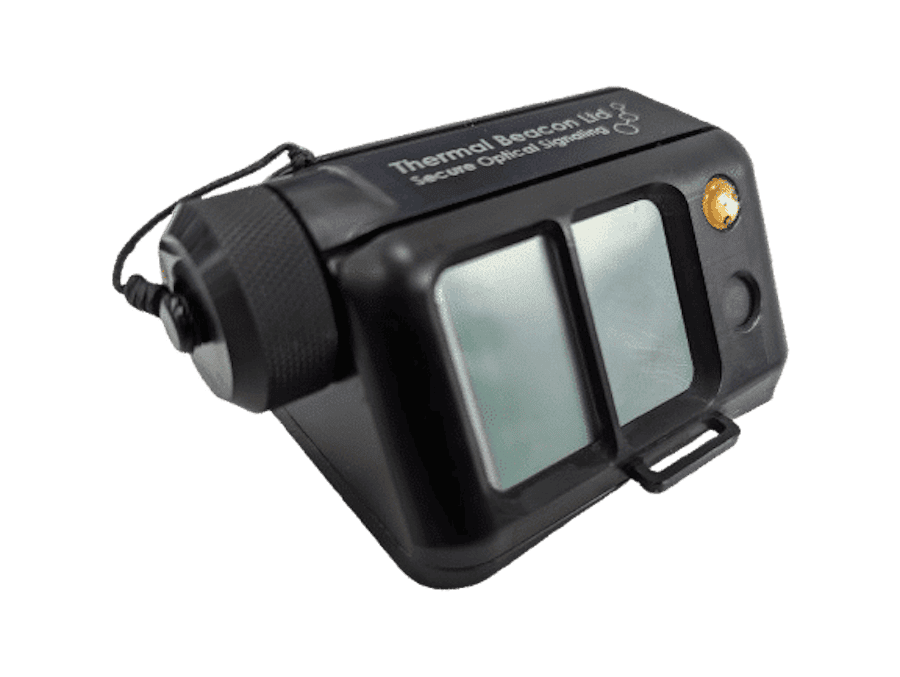

The Orion is a multispectral helmet-mounted IFF (Identification Friend or Foe) beacon that radiates a powerful infrared signal that can be detected by LWIR & MWIR cameras, and can also emit in the NIR and visible (green) /SWIR wavelengths.
The low-SWaP IP67-rated beacon also offers haptic feedback, allowing the wearer to receive indication of different modes and low battery without the need for visual checks.
Specifications:
| Dimensions (H x L x W): | 43.9 x 100.2 x 77 mm |
| Weight: | 190g (without batteries or accessories) |
| Power: | 18650 battery or 2x CR123 |
| Detection Range: | At 3-5μm using InSb Detector & 250mm lens: 5km At 3-5μm using Airborne Optics (Litening): >15km At 8-12μm using a microbolometer camera & 100mm lens: Up to 2km Using IR light intensifier: 10km Visible LED (Optional): 2km SWIR LED (Optional), using SXGA InGaAs camera at 0.25⁰ FOV: >3km |
| Operation Time: | 4 hours (18650 Battery. Thermal Mode @0.5Hz) |
| Radiation Divergence: | Yaw: 120° each side Pitch:120° each side |
| Repetition Rate: | 0.5 – 2.5 Hz |
