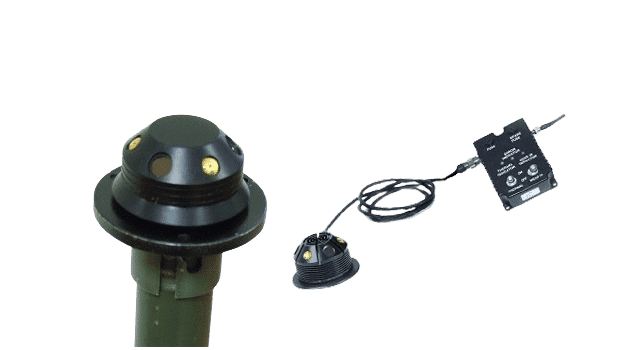

MS-OMR III
The MS-OMR III is a medium-range vehicle-mountable IFF (Identification Friend or Foe) beacon that offers multispectral emission capabilities to suit a range of applications:
- Only thermal region (for thermal cameras)
- Only near infrared region (for image intensifiers and SLS)
- Both thermal and near-infrared regions simultaneously
Separate beacon and control box modules allow for flexible installation possibilities. The rugged unit is ideal for military vehicles, police and emergency teams, search and rescue, and more.
Specifications:
| Dimensions: | Beacon D x H: 48 x 33 mm Control Unit H x L x W: 25 x 111 x 69 mm |
| Weight: | Beacon: 95g Control Unit: 800g (without batteries) |
| Power: | 12/24 VDC |
| Detection Range: | At 3-5μm using InSb Detector & 250mm lens: 3km At 3-5μm using Airborne Optics (Litening): 15km At NIR using IR light intensifier: 10km |
| Radiation Divergence: | Half-sphere |
| Repetition Rate: | 1 Hz |
