MS-DMR
The MS-DMR is a medium-range helmet- and vehicle-mountable IFF (Identification Friend or Foe) beacon that offers multispectral emission capabilities to suit a range of applications:
Only thermal region (for thermal cameras)
Only near infrared region (for image intensifiers and SLS)
Both thermal and near-infrared regions simultaneously

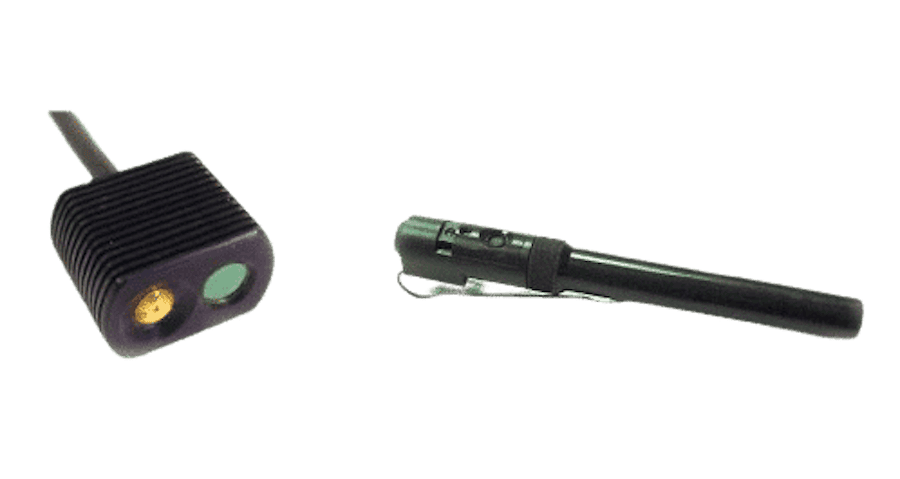

The beacon can be connected to the battery unit by a 3-meter flexible cable, or via a short rigid connection that allows it to be handheld and aimed like a flashlight. The rugged unit is ideal for military vehicles, police and emergency teams, search and rescue, and more.
Specifications:
| Dimensions: | Beacon H x L x W: 18 x 25 x 18 mm Control Unit D x H: 22 x 140 mm |
| Weight: | Beacon: 63g Control Unit: 207g (without batteries) |
| Power: | 4x CR123 batteries |
| Detection Range: | At 3-5μm using InSb Detector & 250mm lens: 3km At 3-5μm using Airborne Optics (Litening): 15km At NIR using IR light intensifier: 10km |
| Operation Time: | 2 hrs |
| Radiation Divergence: | 40o |
| Repetition Rate: | 1 Hz |
