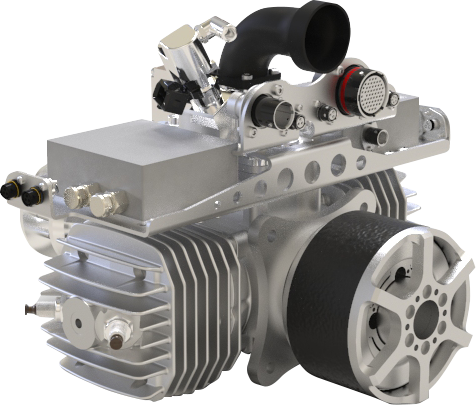

SP-110 TS ROS Two Stroke Engine
The SP-110 TS ROS is the smallest two-stroke engine with twin spark and rear output shaft for a wide range of UAS applications.
This engine is a common engine system on UAS programs from 45-65kg MTOW. With the same core architecture as other dual cylinder engines in Sky Power portfolio, the system offers power density and reliability in all operational scenarios.
The SP-110 is equipped with dual spark plugs per cylinder, the crankcase is CNC machined and the cylinder is casted aluminium. The ROS feature allows for greater operational diversity, to include a starter generator which can be configured into a hybrid or power generation capability.
The following additional configurations can be offered:
- Generator and Controller
- Starter Generator and Controller
| Type | 2-Cylinder Gas Engine |
| Capacity | 110 ccm / 6.7 cu in |
| Power | 9.4 HP / 6.9 KW @ 6000 RPM |
| Speed Range | 1500 – 10000 RPM |
| Weight | incl. ignition 8.80 lbs (4.00 kg) |
| Crankshaft | 4 ball bearings |
| Oil/Gasoline ratio | 1:50 / 2% mix |
| Operating Voltage | 6 – 8.4 V DC |
| Bore diameter | 1.77 inch (45.00 mm) |
| Stroke | 1.37 inch (35.00 mm) |
| Torque | 11 Nm @ 5750 RPM |
