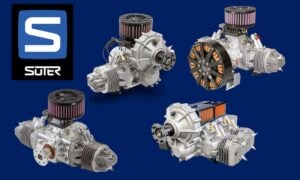

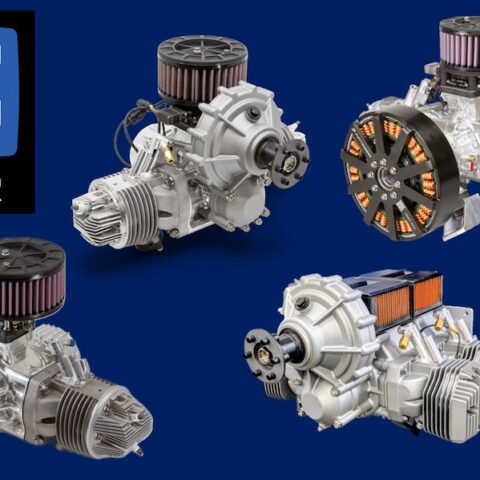

UAV Propulsion Tech
Lightweight Tactical UAV Engines for Gasoline & Heavy Fuel Applications
Silver Partner
Products
Military Drone Engines | UAV Engine Systems for Defense
Suppliers and manufacturers of military drone engines provide the propulsion technologies necessary for modern unmanned aerial systems (UAS) to support military operations worldwide. These engines range from compact piston and rotary systems to advanced turbine and hybrid-electric configurations, designed to meet the performance demands of ISR, strike, cargo, and surveillance missions. UAV engine systems are engineered focusing on power-to-weight ratio, fuel efficiency, environmental tolerance, and compatibility with MIL-SPEC fuels such as JP-5, JP-8, and Jet A-1.
Applications of Military Drone Engines in Defense Operations
Military drone engines power UAVs in various roles across air, land, and maritime theaters. Fixed-wing and rotary-wing UAVs are deployed for intelligence, surveillance, and reconnaissance (ISR), electronic warfare, targeting and tracking, and strategic logistics. The propulsion system directly affects the operational range, loiter time, payload capacity, and climb rate of the platform.
Endurance UAVs use highly efficient piston or Wankel rotary engines to support extended mission durations. Tactical and strike-class drones often rely on gas turbine or turboprop engines capable of rapid acceleration and sustained power. Hybrid-electric propulsion systems are emerging as a key technology for low acoustic signatures and enhanced fuel economy.
Types of Military Drone Engines
Military drone propulsion systems fall into several categories based on engine design and fuel type. The main engine types used in military UAVs include:
Piston Engines
Piston engines are commonly used in small to mid-size UAVs. These internal combustion engines rely on gasoline or heavy fuels and are valued for their simplicity, maintainability, and proven performance in multi-hour ISR missions. Variants with electronic fuel injection (EFI) systems enhance responsiveness and altitude compensation. Multi-cylinder configurations with advanced engine management systems (EMS) optimize fuel efficiency and power delivery.
SP-55 FI TS ROS Two-Stroke Fuel Injected UAS Engine by Sky Power International.
Rotary Engines
Rotary (Wankel) engines are used in military drones requiring compact form factors and high power-to-weight ratios. They feature fewer moving parts than piston engines and provide smoother operation, which is advantageous for payload stability. These engines are compatible with JP-8 and other heavy fuels, and are often deployed in tactical UAVs for mid-range surveillance and strike capabilities.
Gas Turbine Engines
Gas turbines, including turbojet and turboshaft engines, are used in high-speed or heavy-lift UAVs. They provide superior thrust and altitude performance but at the cost of higher fuel consumption. Turboshaft engines are often paired with reduction gearboxes and advanced cooling systems to enable consistent performance across varying altitudes and weather conditions.
Hybrid-Electric Propulsion
Hybrid-electric propulsion systems combine combustion engines with electric motors and battery packs. This setup allows for fuel-efficient cruise operation and low-noise loitering phases. These configurations are especially relevant for stealth missions, urban reconnaissance, and extended surveillance, where acoustic and thermal signatures must be minimized.
Fuel Types and Engine Compatibility
Military drone engines must accommodate specific fuel types mandated by defense standards. JP-5 and JP-8 are standard military-grade fuels known for their low flash points and compatibility with shipborne operations. Jet A-1, commonly used in commercial aviation, is also supported by many engines to streamline logistics.
Fuel injection systems, carburetor systems, and combustion chambers are adapted for heavy fuel operation, ensuring reliability under high thermal and pressure loads. Modern propulsion systems often feature redundant ignition systems and ECU-based fuel management to optimize combustion across mission profiles.
Engine Subsystems and Supporting Components
Effective propulsion depends not only on the engine core but also on integrated subsystems that ensure consistent performance and safety:
- Engine Control Units (ECUs): Monitor and adjust engine performance parameters in real time
- Fuel Pumps and Fuel Injection Systems: Regulate fuel delivery for efficient combustion
- Starter Systems: Provide reliable engine ignition, especially in adverse environments
- Cooling Systems: Maintain thermal stability during extended operations
- Exhaust Systems: Manage emissions and reduce infrared signatures
- Propeller Shafts and Gearboxes: Transfer power to propulsion elements with minimal loss
Advanced telemetry modules are often integrated to transmit engine diagnostics to ground control systems, supporting predictive maintenance and mission planning.
Propulsion System Configurations by UAV Class
Different classes of military drones require propulsion systems tailored to their operational profiles:
-
RT700-XE rotary engine by Rotron Aerospace.
Mini and Micro UAVs: Often powered by electric motors or small piston engines
- Tactical UAVs: Typically use Wankel rotary engines or small gas turbines
- MALE (Medium Altitude Long Endurance): Use heavy-fuel piston or hybrid engines with EFI
- HALE (High Altitude Long Endurance): Rely on lightweight turbojet or turbofan engines
- Strike and Combat UAVs: Employ high-thrust turbojet or turboprop configurations
Hybrid UAV engines are increasingly deployed across various classes to extend range and reduce acoustic signatures.
Comparison of Military Drone Engine Types
| Engine Type | Fuel Type | Advantages | Limitations |
| Piston | Gasoline, JP-8 | Efficient, reliable, easy to maintain | Heavier, less compact |
| Rotary (Wankel) | JP-8, JP-5 | Compact, high power-to-weight | Higher fuel consumption |
| Turbojet | Jet A-1, JP-8 | High speed and thrust | Noisy, high IR signature |
| Turboshaft | JP-8, JP-5 | Good lift-to-weight, efficient for rotor | Complex, maintenance-intensive |
| Hybrid-Electric | Battery + JP-8 | Quiet, fuel-efficient, low IR signature | Complex integration, weight penalties |
Relevant Standards for Military Drone Engines
Engine development and deployment for military UAVs must conform to multiple standards and regulations. These include:
- MIL-STD-704: Aircraft electric power characteristics
- MIL-DTL-83133: Specification for JP-8 turbine fuel
- MIL-STD-810: Environmental engineering considerations and laboratory tests
- STANAG 4671: NATO standard airworthiness requirements for UAV systems
Compliance with these standards ensures interoperability, safety, and logistical consistency across allied defense programs.
Selection Criteria for Defense Buyers and Engineers
Defense procurement officers and engineers evaluating military drone engines consider several critical performance and integration metrics:
- Power-to-weight ratio
- Fuel efficiency and compatibility
- Thermal and environmental tolerance
- Maintenance cycle and mean time between overhauls (MTBO)
- Compatibility with onboard systems
- Telemetry and diagnostics integration
Mission requirements, geographic deployment areas, and logistics influence engine selection.
Trends in Military UAV Propulsion
Several trends are shaping the future of military drone propulsion:
- Heavy fuel optimization for increased range and reduced logistics complexity
- Integrated hybrid-electric systems for stealth and endurance
- Digital engine control units (ECUs) with adaptive algorithms
- Modular propulsion architectures for multi-role UAV platforms
- Improved thermal management systems for high-altitude and desert operations
Innovation in propulsion systems supports the ongoing evolution of UAV roles, enabling expanded ISR, combat, and logistics missions across increasingly complex battlefields.
