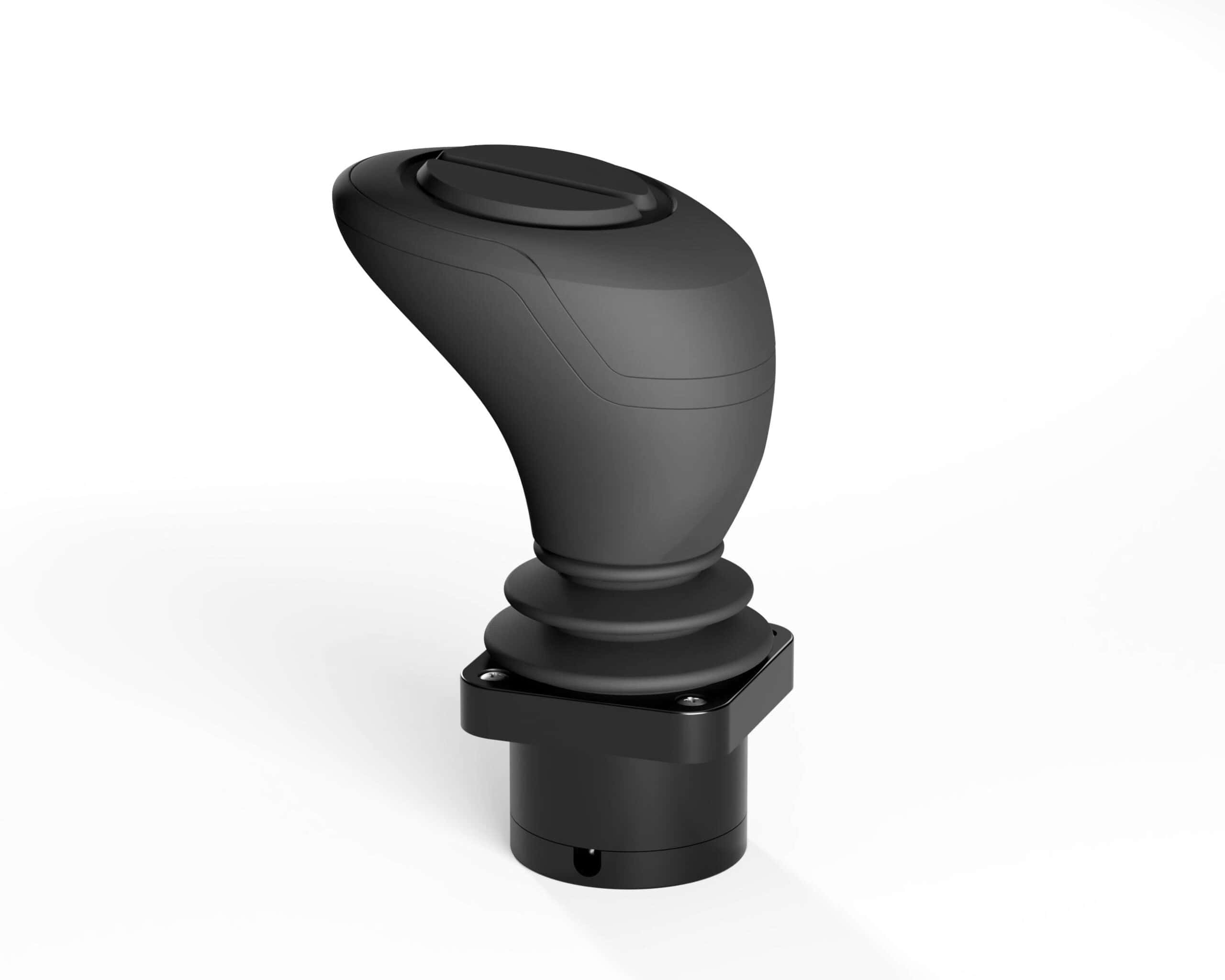

Rugged Joystick
The RJH-01 is a two-axis Hall effect joystick that has been rigorously designed and tested to MIL-STD-810 and EN 61000 specifications, and is also IP67-rated for water and dust ingress protection. The highly ergonomic device is designed to be used comfortably for prolonged periods, and features a low operating force and spring-centering mechanism for easy manipulation.
The USB joystick is designed to be panel-mounted, and thanks to its rugged build, it is an ideal input device for a wide range of defense equipment, including UAV/UXV ground control stations, weapons systems controls, and military training and simulation platforms. The included cable can be fitted with a range of different military connector options according to requirements.
| Weight: | 250g |
| Operating Force: | 2.6 N |
| Deflection Angle: | X/Y axes: 13.5° Diagonal axis: 20° |
| Supply Voltage: | 5V |
| Cable Length: | 1.8m |
