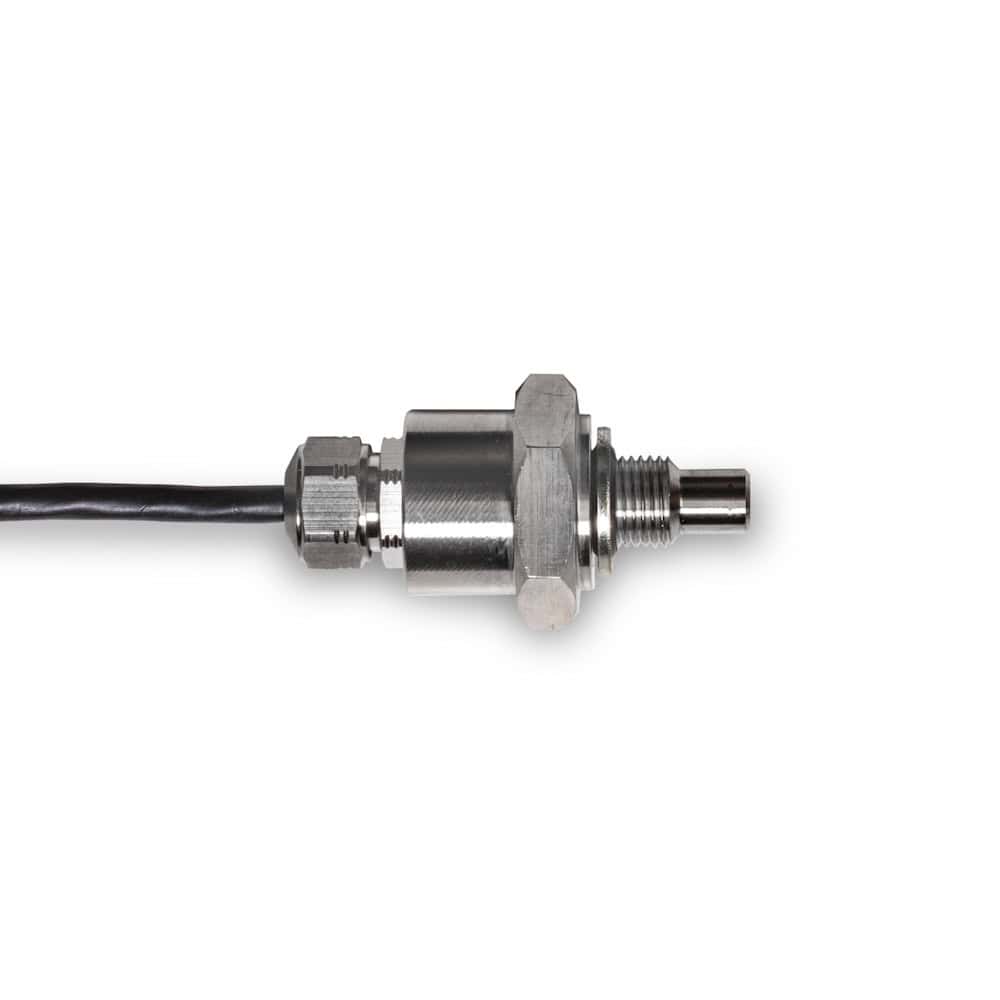

The Resistance Temperature Sensor is a precision-engineered RTD probe built for demanding defense and industrial environments. Constructed from corrosion-resistant 316L stainless steel, this ruggedized sensor integrates a duplex PT-1000 Class B 1/3 DIN sensing element to deliver accurate temperature measurements in high-pressure and high-vibration systems. With operating capabilities from -60°C to +200°C in standard configuration—extendable to +250°C in custom variants—the sensor ensures robust performance across oil, fuel, coolant, and exhaust monitoring use cases.
Capable of withstanding fluid pressures up to 1000 bar, the RTD can be integrated into a wide range of system architectures through a variety of metric or imperial thread options and connector interfaces, including MIL-DTL-38999, 26482, and 5015. Designed for air, gas, and liquid temperature measurement, it supports both analog and CAN outputs through onboard electronics, removing the need for external processing. Reventec’s modular approach allows for custom sensor assemblies with tailored housing geometry, cabling, and I/O requirements to suit operational constraints in military vehicle and aerospace platforms.
| Specification | Details |
|---|---|
| Sensor Type | Resistance Temperature Detector (RTD) |
| Sensing Element | PT-1000, Class B 1/3 DIN, Duplex |
| Material | Stainless Steel 316L |
| Operating Temperature | -60°C to +200°C (up to +250°C variant available) |
| Pressure Rating | Up to 1000 bar |
| Thread Options | Metric and Imperial Available |
| Connector Interfaces | MIL-DTL-38999, 26482, 5015 |
| Output Options | Analog or CAN (integrated electronics) |
| Customisation | Housing geometry, cable length, and connectors |
| Applications | Air, gas, and liquid temperature sensing in military, industrial, and maritime systems |
