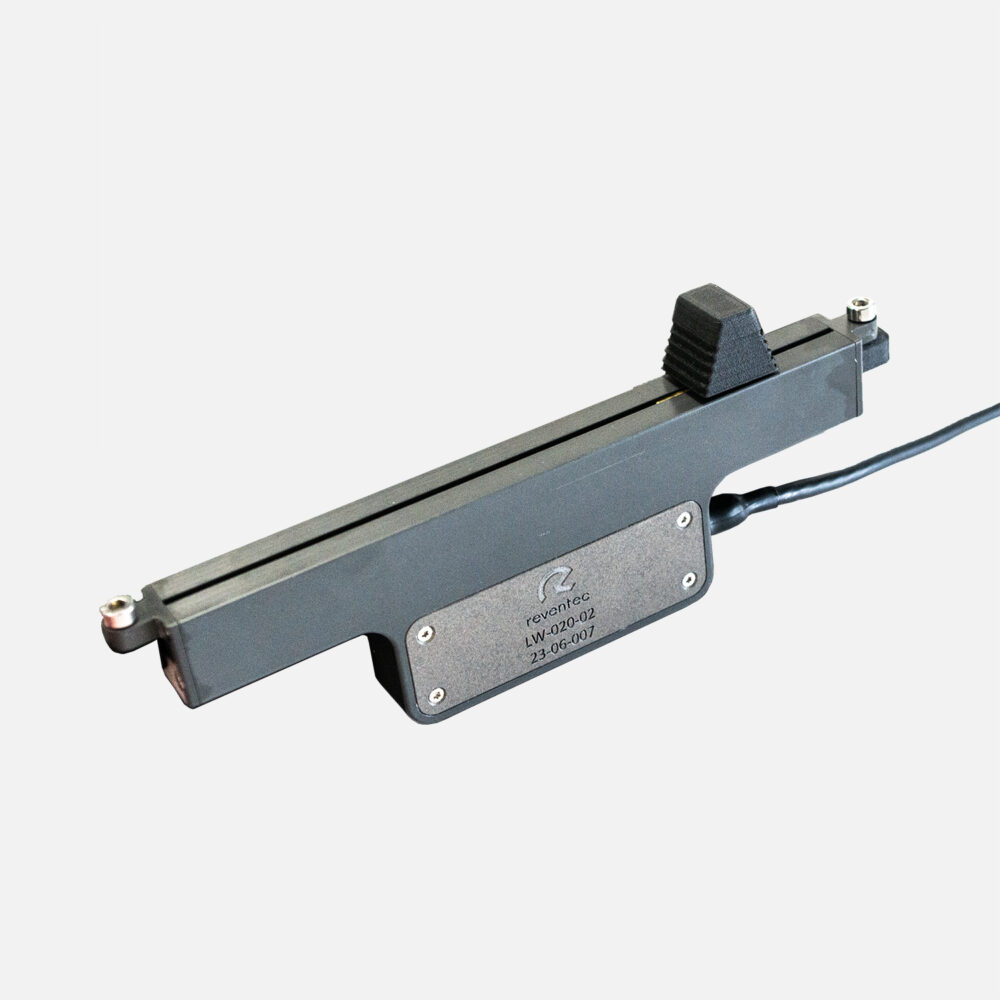

The Quantum TMR 100mm Slider Linear Position Sensor from Reventec delivers high‑precision feedback with a robust, non‑contact design ideal for armored vehicles, defense robotics, and harsh environmental applications. Engineered using advanced Tunnelling MagnetoResistive (TMR) technology, this slider sensor provides a full 100 mm measurement range with exceptional ±0.5% accuracy and a fast 5 kHz update rate for precise real‑time motion control. Outputs include both analog (0–5 V) and CAN signals, managed by an integrated onboard CPU that eliminates the need for external processing.
Built for resilience, the sensor features a rugged hard‑anodized aluminum housing rated to IP68, ensuring protection against dust and submersion. It operates reliably across temperatures ranging from –40 °C to +125 °C and meets stringent EMC standards, including MIL‑STD‑461G and RTCA DO‑160F, for combat‑grade deployment. Additionally, its non‑contact sensing capability allows measurement through up to 20 mm of non‑ferrous materials, simplifying integration within sealed actuator systems.
| Feature | Specification |
|---|---|
| Measurement Range | 0–100 mm |
| Output | 0–5 V analog & CAN (via integrated CPU) |
| Resolution | 12‑bit |
| Accuracy | ±0.5% of reading |
| Update Rate | 5 kHz |
| Operating Temperature | –40 °C to +125 °C |
| Ingress Protection | IP68 |
| Housing | Hard‑anodised aluminium slider and housing |
| Non‑contact Sensing | Yes – through up to 20 mm of non‑ferrous material |
| Technology | Quantum TMR™ |
| EMC Certifications | MIL‑STD‑461G, RTCA DO‑160F |
| Applications | Armored vehicles, defense robotics, sealed actuator feedback |
