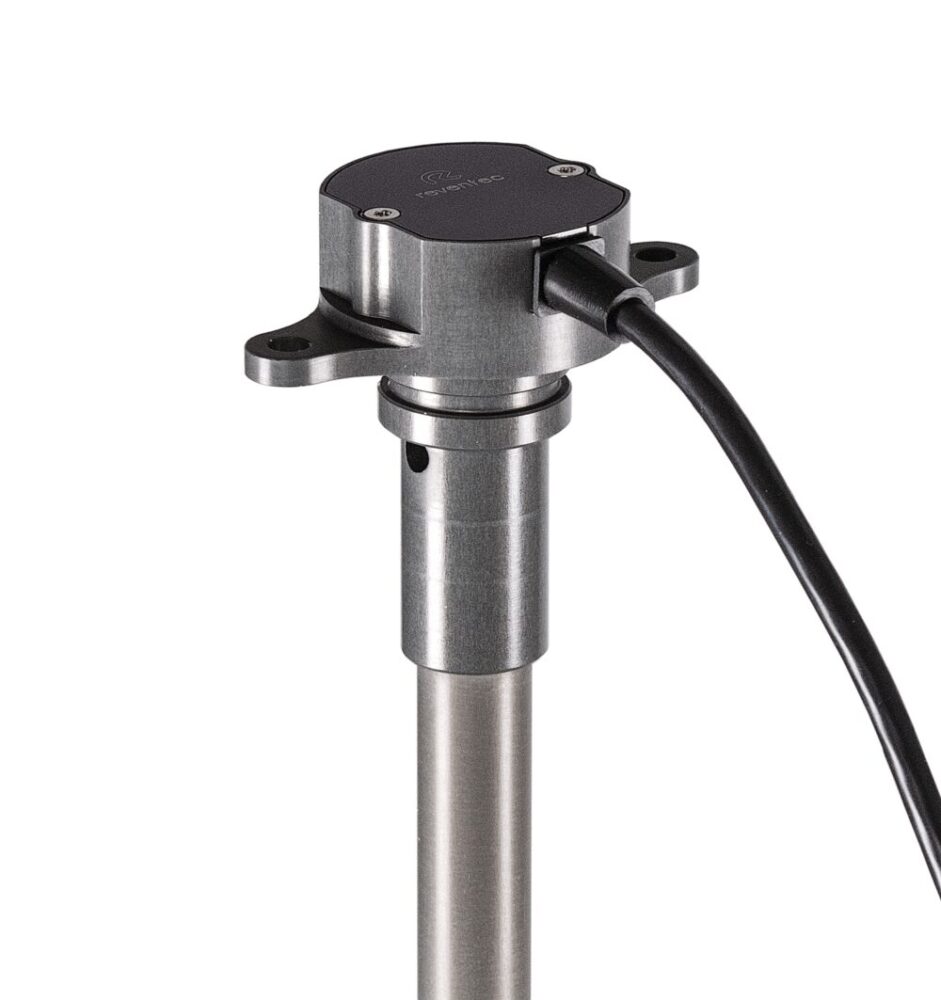

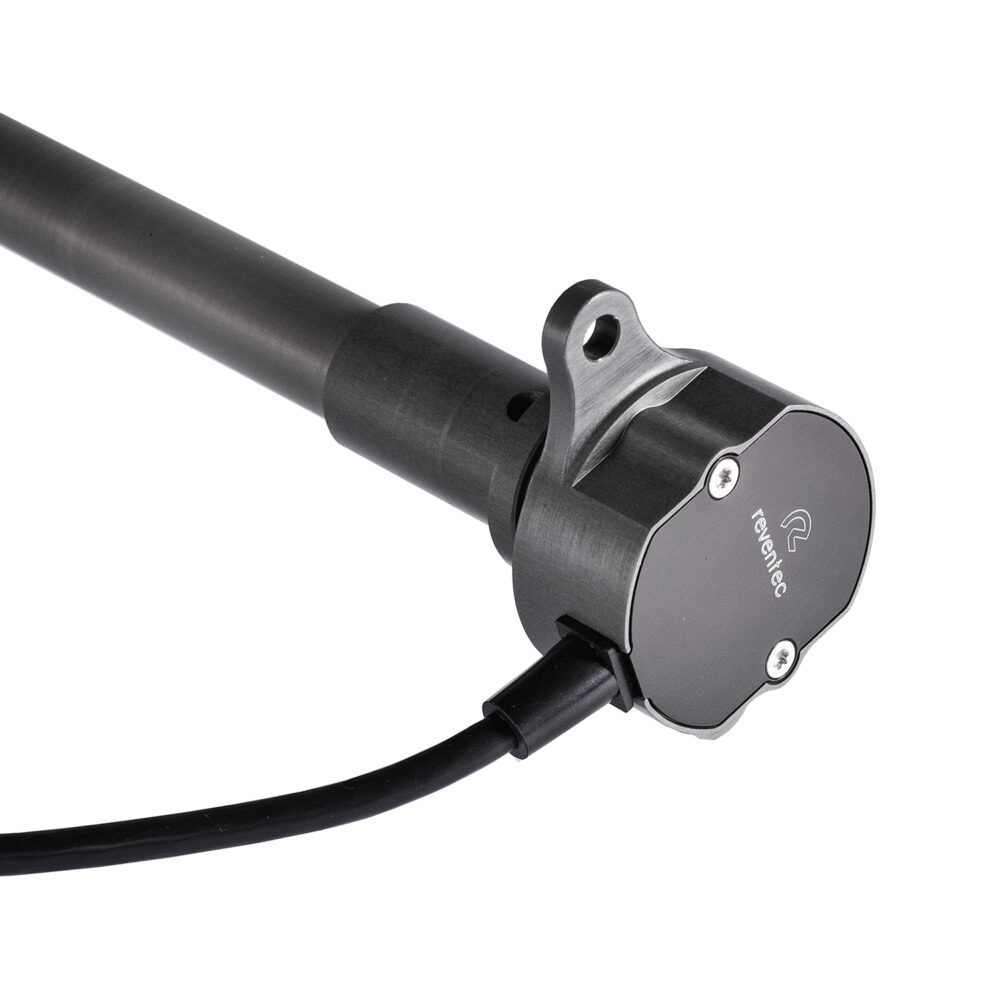

The LSM200 combines precision and resilience for defense-oriented applications, offering solid-state liquid level detection that ignores orientation—a critical asset for sealed tanks and complex installations in defense vehicles and drones. Fully integrated electronics inside the sensor simplify installation and reduce system complexity while delivering analog (0–5 V) and CAN outputs.
Hard-anodised aluminium build, IP68 ingress protection, and an operating temperature range of –40 °C to +125 °C (with optional high-temp up to +150 °C) ensure that the sensor remains dependable in extreme settings. Factory-configurable lengths up to 450 mm and MIL-STD EMC compliance (461G, DO-160F) further enhance its deployability across armored vehicles, mobile bases, and UAV refueling systems.
| Feature | Specification |
|---|---|
| Sensor Type | Solid-state capacitive liquid level |
| Outputs | Analog 0–5 V, CAN, or both |
| Construction | Hard-anodised aluminium |
| Ingress Protection | IP68 |
| Operating Temperature | –40 °C to +125 °C (variant up to +150 °C) |
| Orientation Dependence | Insensitive—works in any orientation |
| EMC Certification | MIL-STD-461G, RTCA DO-160F |
| Length | Custom-built up to 450 mm |
| Applications | Defense UAVs, tactical vehicle fluid monitoring |
