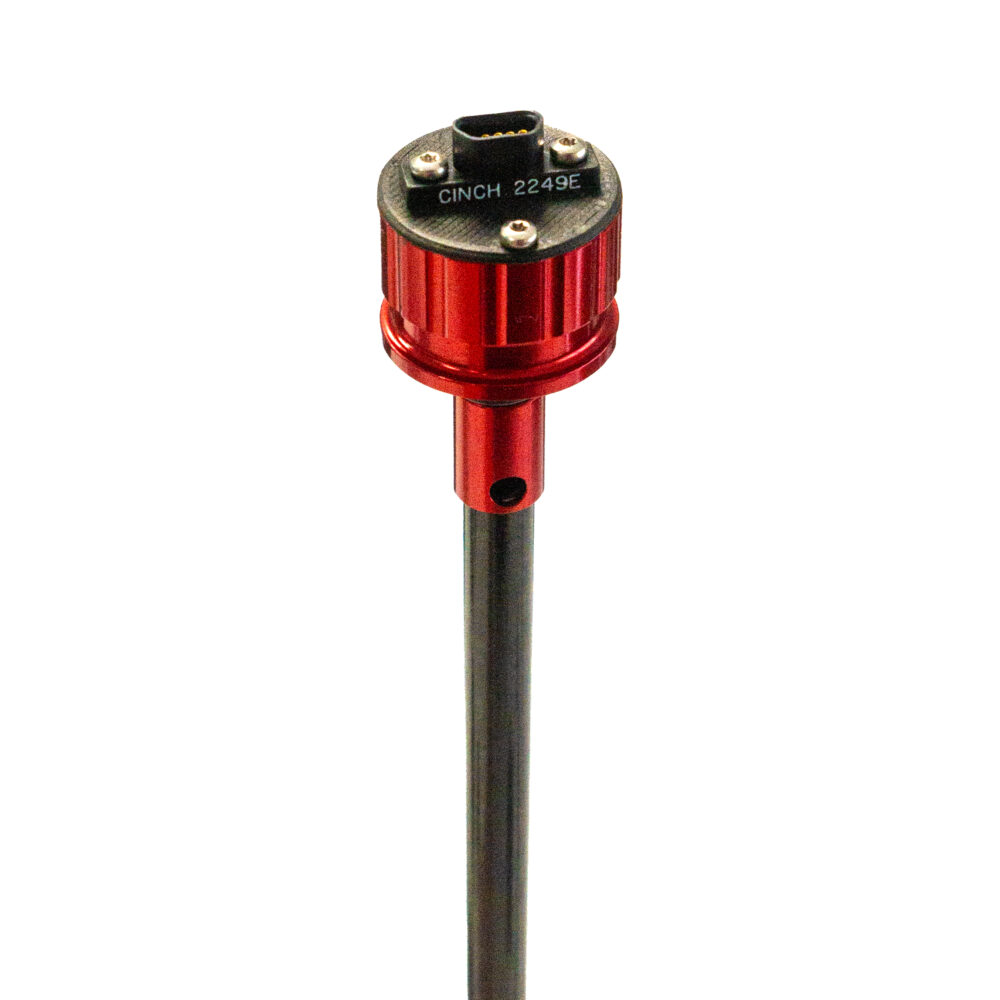

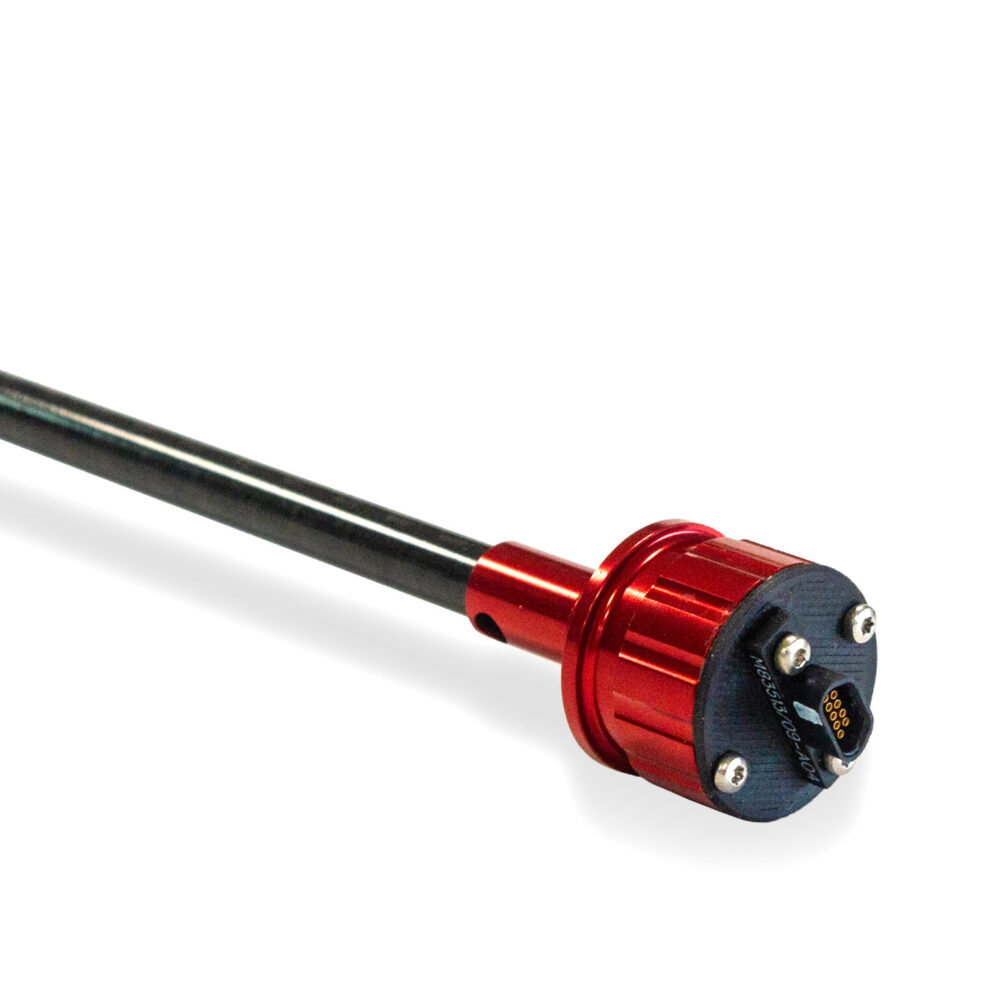

LSM-MICRO
The LSM‑MICRO is a micro-sized, mil-spec capacitive level sensor expertly crafted for defense platforms requiring precision fluid monitoring in confined spaces. It delivers continuous, orientation-insensitive readings at 100 Hz with ±0.5% accuracy—ideal for mission-critical monitoring of fuel or lubricant levels in UAVs, armored vehicles, or remote systems.
Built to endure, it features IP68 sealing, -55 °C to +150 °C operating range, and MIL‑STD‑461G and RTCA DO‑160F EMC compliance. Integrated analog and CAN outputs eliminate external electronics, while custom lengths (up to 300 mm), hard-anodized construction, and mil-spec connectors like D‑Sub or MIL‑DTL‑38999 ensure secure, low-maintenance installation in rugged defense environments.
| Feature | Specification |
|---|---|
| Sampling Rate | 100 Hz continuous |
| Accuracy | ±0.5% of reading |
| Output Options | Analog 0–5 V, CAN, or Analog + CAN |
| Ingress Protection | IP68 |
| Operating Temperature | –55 °C to +150 °C |
| Construction | Hard-anodized aluminium housing |
| Orientation Independence | Yes |
| Lengths Available | Custom up to 300 mm |
| EMC Compliance | MIL-STD-461G, RTCA DO-160F |
| Mounting/Connector | Spring-clip mount; D-Sub/MIL-DTL-38999 options |
| Applications | UAVs, unmanned systems, ground defense vehicles |
