EV 200

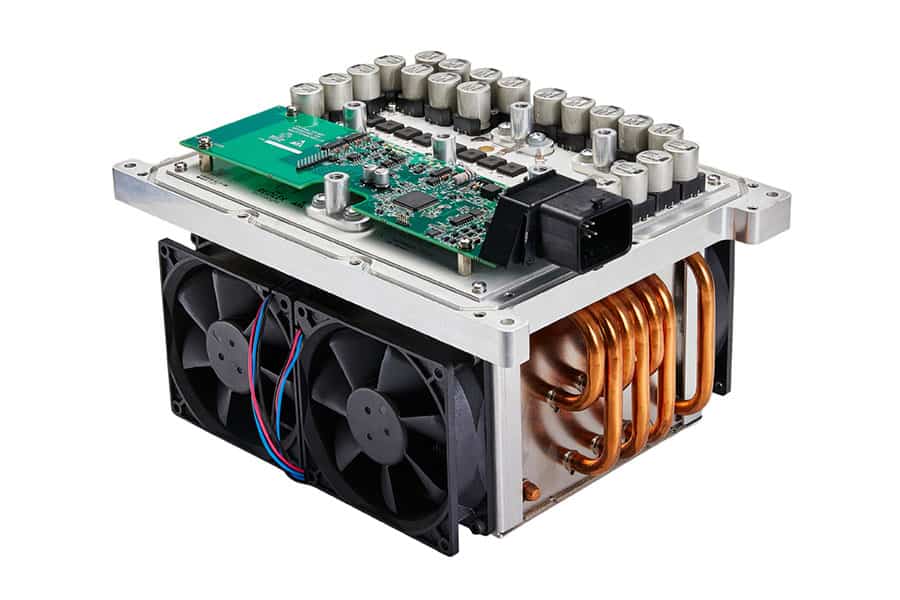

Redler Technologies’ EV Rider is a high-performance DC servo motion controller designed to provide unparalleled control for demanding electric mobility and autonomous vehicle applications operating in highly dynamic conditions. Featuring advanced dynamic load handling and adaptive algorithms, it supports feedback via Hall, incremental, and SSI encoders.
The versatile controller offers a range of safety features including over-temperature, over-voltage and over-current protections. It provides RS-232 and CANbus communications interfaces with optional CANopen, allowing it to be easily integrated into a wide range of designs.
Specifications:
| Dimensions: | 225 x 185 x 50 mm |
| Weight: | 2.3 kg |
| Motor Voltage: | 24-72V (up to 96V optional) |
| Motor Current (RMS): | 200A continuous 520A peak |
| Communications: | RS-232, CANbus, optional CANopen |
| I/O: | 5 digital inputs 3 analog inputs 3 high-side drivers for front & rear lighting outputs |
