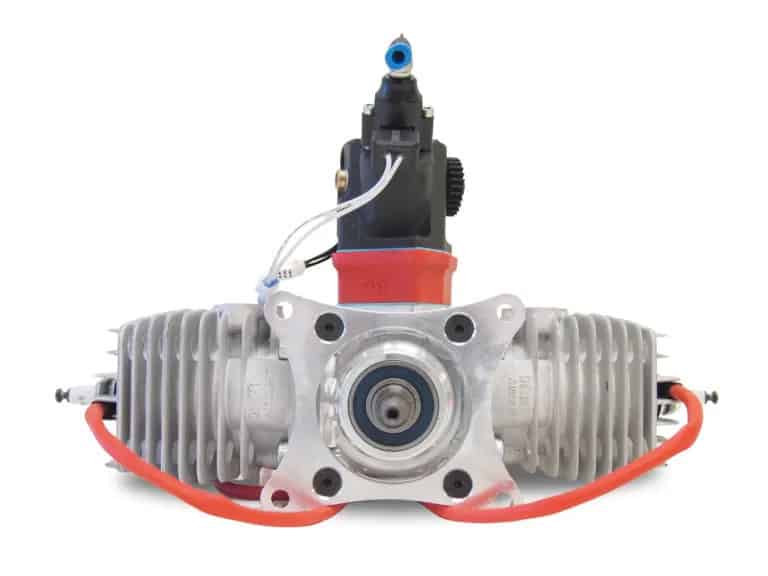

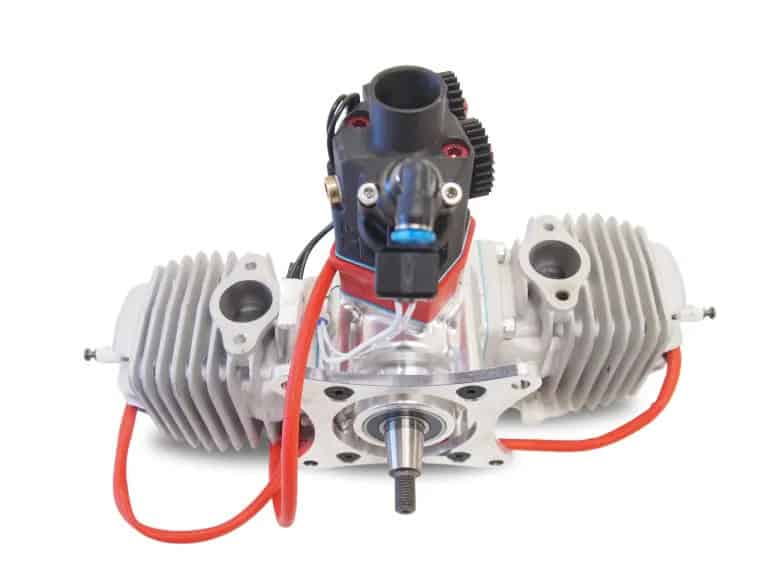

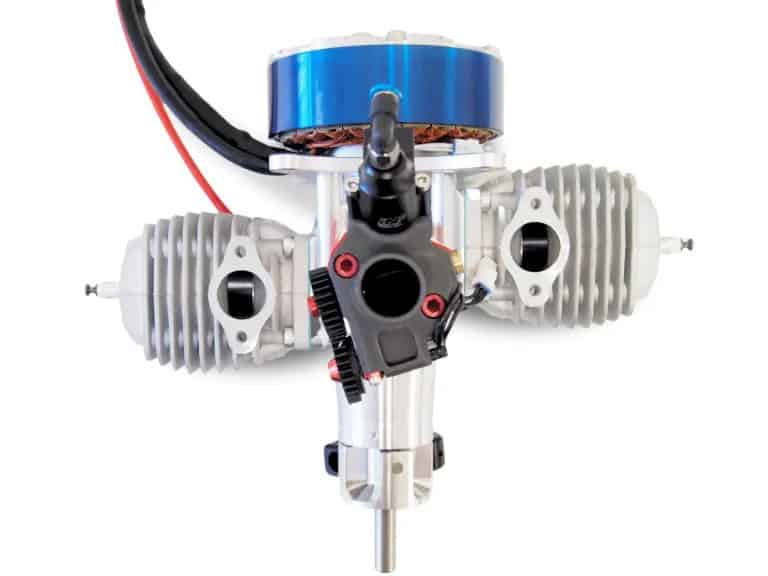

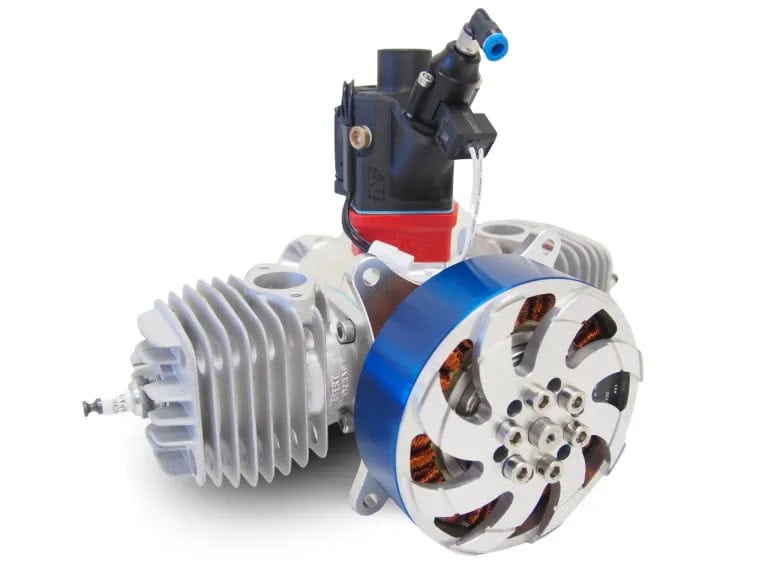

The INF Inject DA70 is a compact 70cc UAV engine built from CNC-machined 6061 and 7071 aluminum, offering a rugged, lightweight solution ideal for tactical and ISR-class unmanned systems. INF Inject’s electronic fuel injection (EFI) system delivers up to 65% improved fuel efficiency, with automatic altitude compensation and overheat protection to support consistent engine performance in varied and demanding environments.
Designed for mission-critical operations, the DA70 supports 24V and 48.5V starter/alternators to power avionics, provides full engine telemetry via TTL 9600 baud, and integrates easily with military-grade autopilot systems. Automatic throttle control, pre-shipment calibration, and onboard SD card data logging ensure reliability and simplified field deployment.
Specifications:
| Weight | 1950g (4.3 lbs) |
| Engine Displacement | 70cc |
| Input Voltage | 16.8 – 22.2V |
| Output Power | 4 kW (5 HP) |
| Operating RPM | 1750 - 8000 |
| Max Altitude | 3660m (12,000 ft) |
| Fuel Type | 40:1 Synthetic 2-Stroke |
| Service Interval | 250h |
