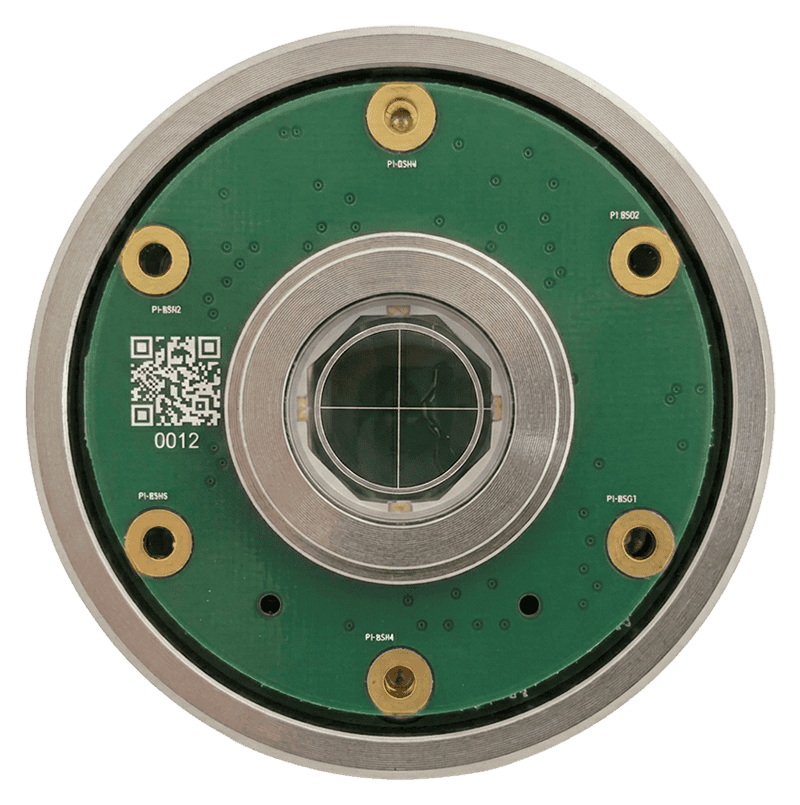

Next-Gen Laser Spot Tracker Module
The Next-Gen Laser Spot Tracker Module is a compact tracking solution for missile and defense platform applications requiring extended acquisition range and robust anti-sunlight performance. Its five-channel architecture uses adaptive noise thresholding to maintain sensitivity across changing ambient light levels, with anti-blinding protection and overcurrent circuitry across all quadrants.
The system offers first, last and peak pulse-detection logic as well as full-duplex RS422 or RS485 communications and automatic or manual multi-stage gain control. It can be provided as a board-level module or as a ready-to-use optical assembly that can be easily integrated into a variety of target platforms.
Specifications:
| Dimensions, Board Level | 60 x 60 x 30 mm |
| Weight: | 85 g board 435 g optical assembly |
| Power Supply | +6 V DC at 150 mA / +12 V DC at 110 mA |
| Detector Size | 14 mm |
| Channels | 5 |
| Dynamic Range | >100,000:1 |
| Sensitivity | 250 nW typical at 50% Pd |
| Linear Operation | Up to 20 µW/quadrant at 1.06 µm |
| Operating Temperature | -40 to +85 °C |
| Linear Field of View | 40° |
| Nonlinear Field of View | 80° |
| Optical Filter Wavelength | 1064 nm |
