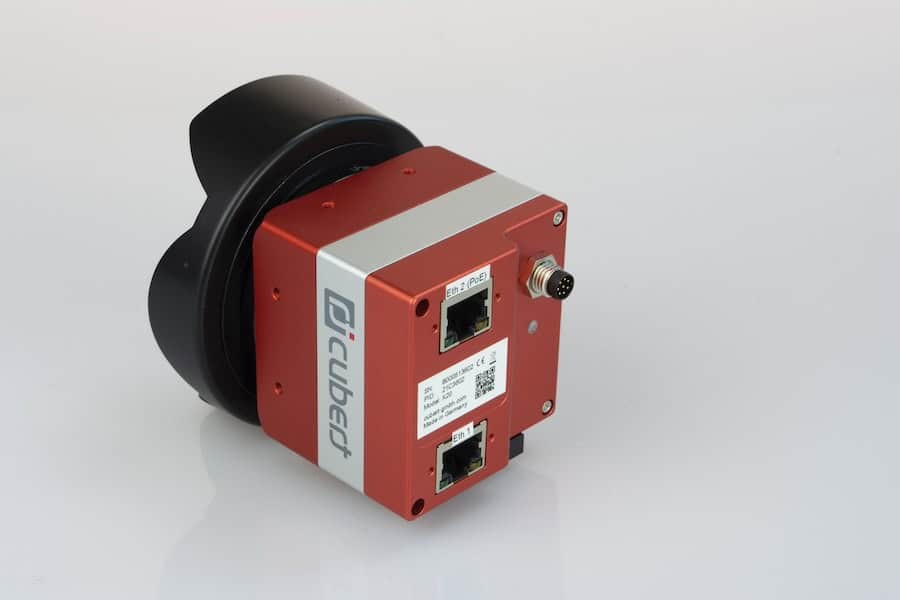

ULTRIS X20
Cubert’s ULTRIS X20 is the world’s first UV-VIS-NIR hyperspectral video imager and the company’s flagship product, offering an unprecedented range of 350-1000 nm. The advanced camera provides clean hyperspectral imagery out of the box with a native resolution of 410 x 410 and 164 spectral bands, delivering unmatched working speed.
The versatile imaging solution is available in three different housings to suit a range of deployment requirements:
- Lightweight IP40 enclosure for standard deployments
- IP65 for additional ruggedness in harsh environments
- IP68 for waterproof and underwater applications such as UUVs, enabling the camera to be submerged at depths of 10m for up to 10 hours
| Dimensions: | 60 x 60 x 57 mm |
| Weight: | 350g |
| Wavelength Range: | 350 – 1000 nm |
| Spatial Resolution: | 410 x 410 |
| Spectral Bands: | 164 |
| FOV: | 35o |
| Max Frame Rate: | 8 Hz |
| Data Depth: | 12 bit |
