CM62

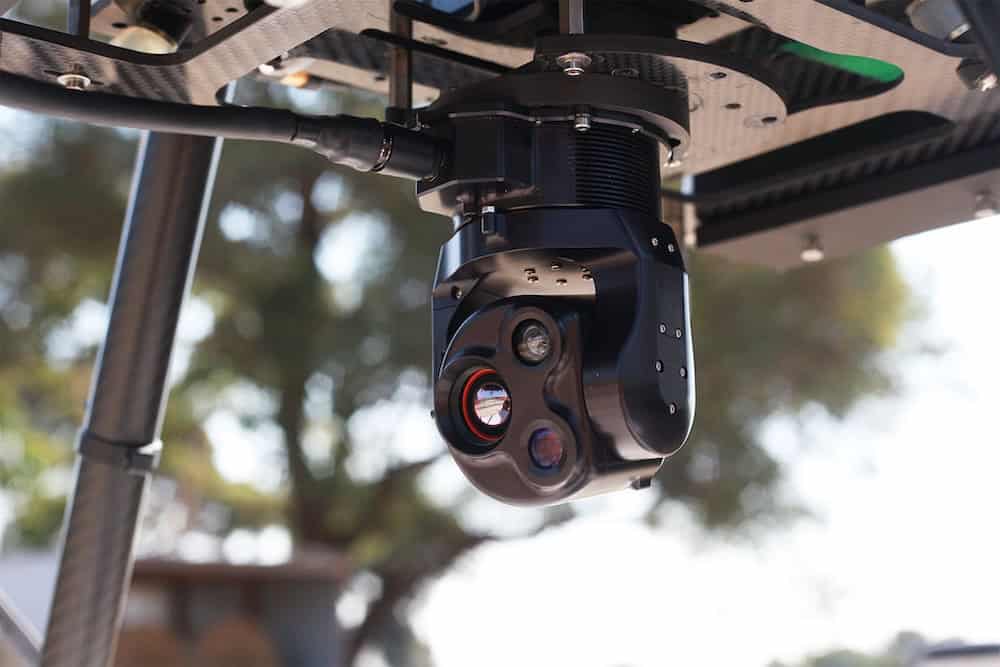

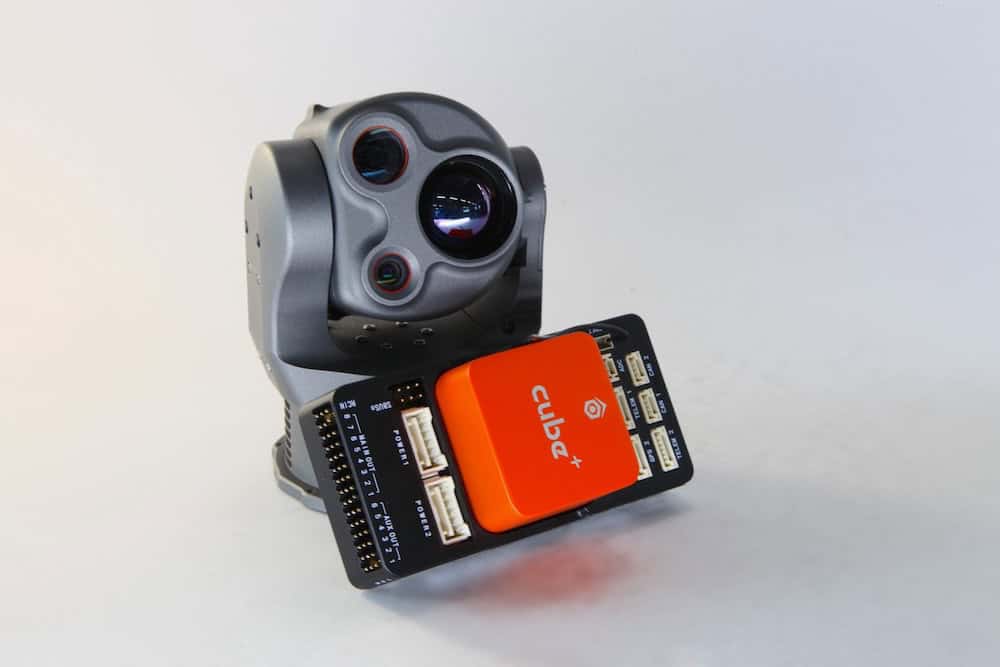

CACI International’s next-generation CM62 family of gyro-stabilized gimbals provides multi-sensor imaging for Group 1 and 2 UAS in an ultra-miniature form factor with weights of just 260 to 290 grams. The low-SWaP payloads are MAVlink-compatible, enabling easy integration into your drone platform and allowing autopilot and gimbal to be controlled from the same tablet.
CM62 gimbals are ruggedized to IP67 standards, and feature a comprehensive suite of onboard video processing features including automatic target identification, tracking, scene steering, e-stabilization and roll stabilization.

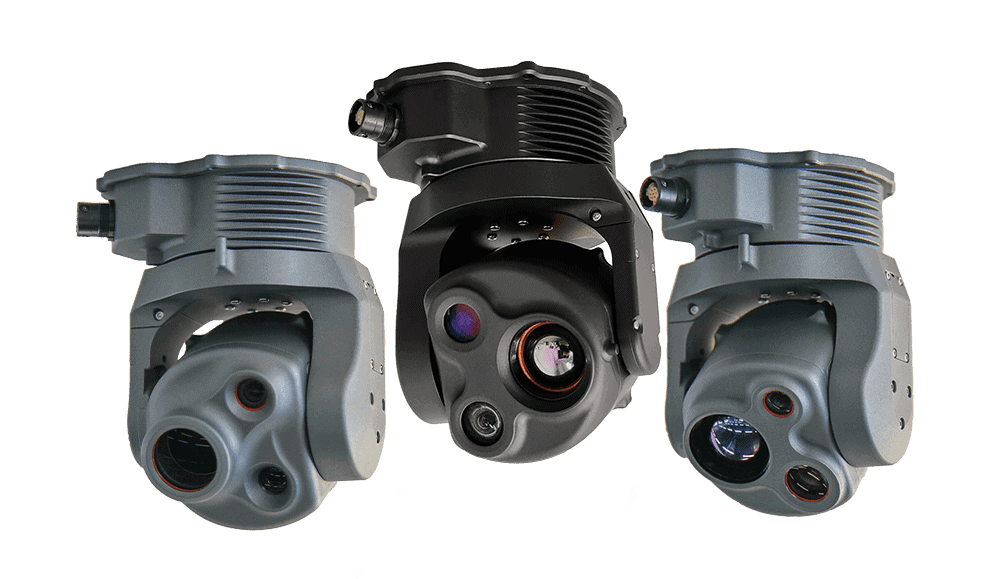

The ITAR-free product range includes three options to meet a diverse range of mission requirements:

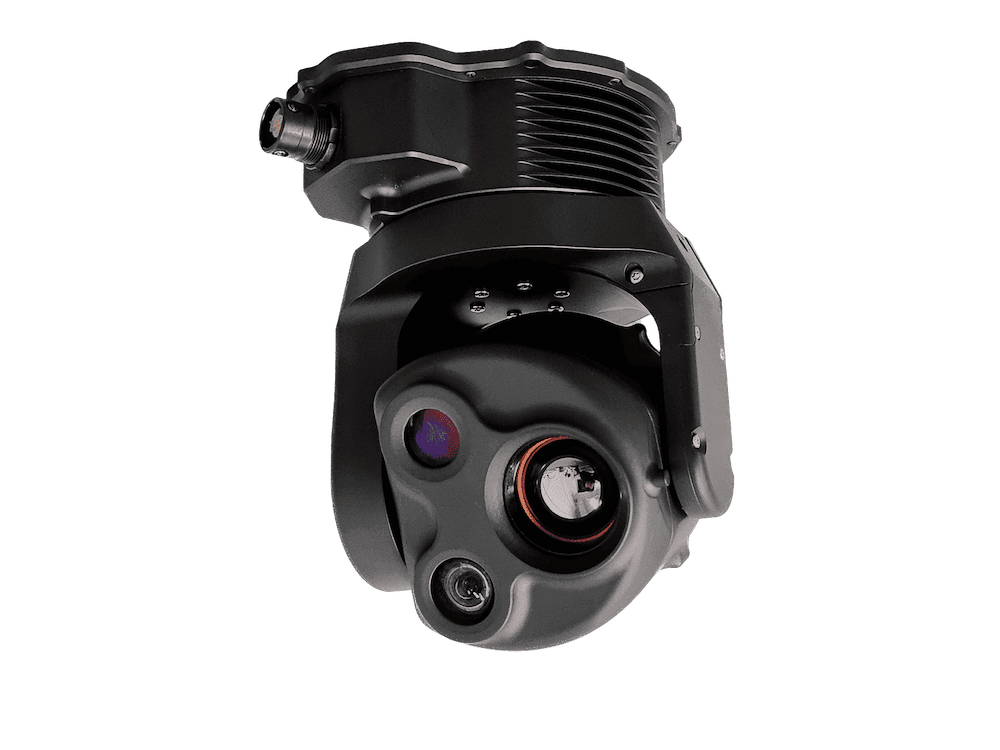

- CM62 Standard – high-resolution EO & LWIR sensors for all-purpose imaging
- CM62 Tri-Zoom EO+ – intermediate lens for enhanced mid-range daytime performance and a longer focal-length narrow lens for more pixels on target
- CM62 LWIR+ – daytime & enhanced night-time imaging, with 18° HFOV that provides 84% more pixels on target than standard configuration
| Standard | LWIR+ | EO+ | |
| Weight: | 260g 0.57 lbs |
265g 0.58 lbs |
290g 0.64 lbs |
| Max Swept Diameter: | 76mm 3” |
76mm 3” |
78mm 3.1” |
| Ball Swept Diameter: | 65mm 2.6” |
65mm 2.6” |
65mm 2.6” |
| Height: | 103mm 4” |
103mm 4” |
103mm 4” |
| Elevation: | +90° - 210° from horizontal | +90° - 210° from horizontal | +50.5° - 210° from horizontal |
| Azimuth: | ±172° (Simulated 360° Continuous Rotation) | ±172° (Simulated 360° Continuous Rotation) | ±172° (Simulated 360° Continuous Rotation) |
| EO: | 1080p, 720p, 640x480 HFoV Continuous 56° to 1.2° 30 Hz frame rate |
1080p, 720p, 640x480 HFoV Continuous 56° to 1.2° 30 Hz frame rate |
1080p, 720p, 640x480 HFoV Continuous 56° to 0.8° Spotter 5° to 0.8° 30 Hz frame rate |
| LWIR: | 640x480 HFoV 32o 30 Hz frame rate |
640x480 HFoV 18o 30 Hz frame rate |
N/A |
