Gyro-Stabilized ISR Imaging Gimbal Systems for Tactical UAVs, Unmanned Systems, & Counter-UAS Platforms
CM262 Ground-based EO & IR imaging system for vehicles & counter-UAS platforms
CM262

Ground-based EO & IR imaging system for vehicles & counter-UAS platforms

Visit Website Contact
Saved
Save
CM262

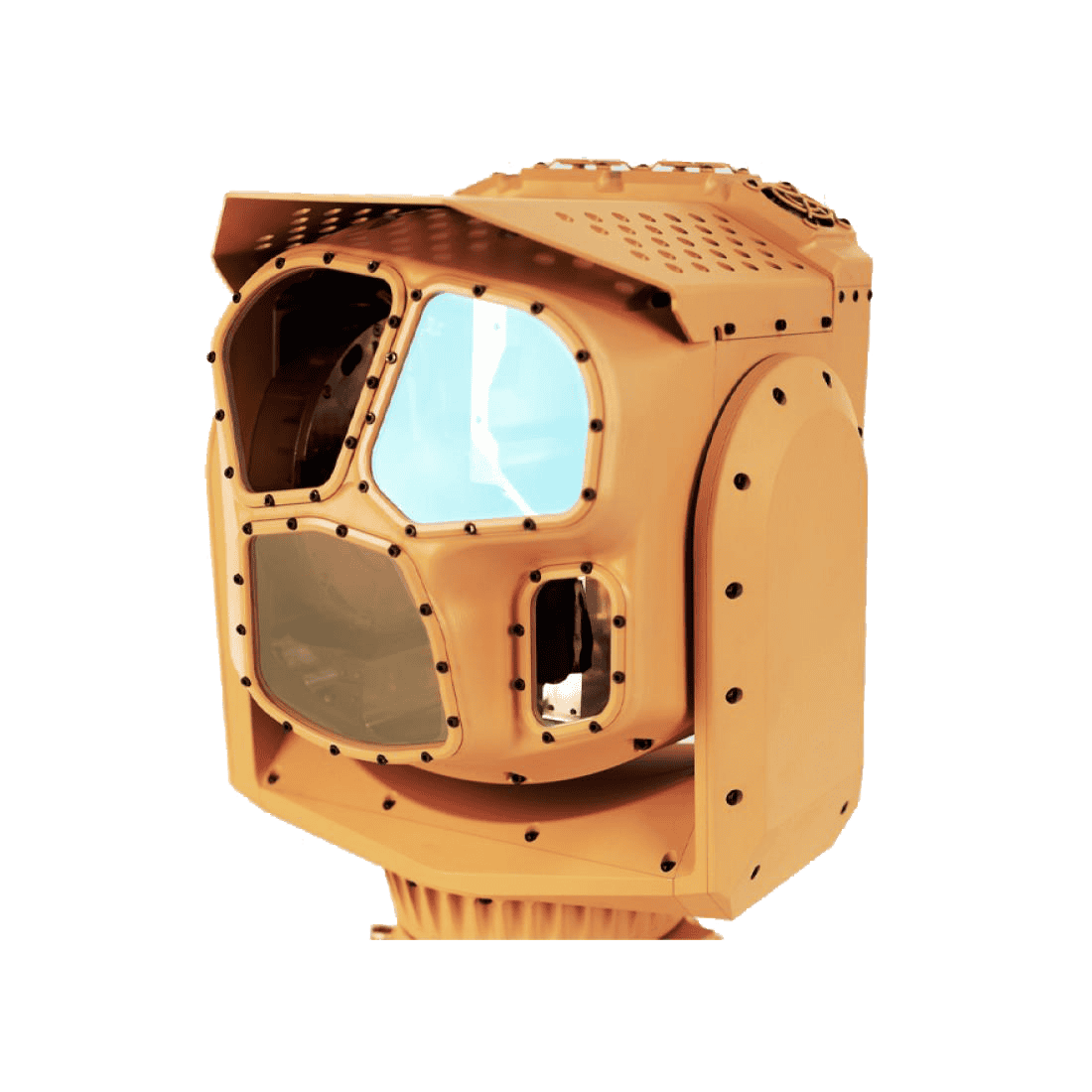

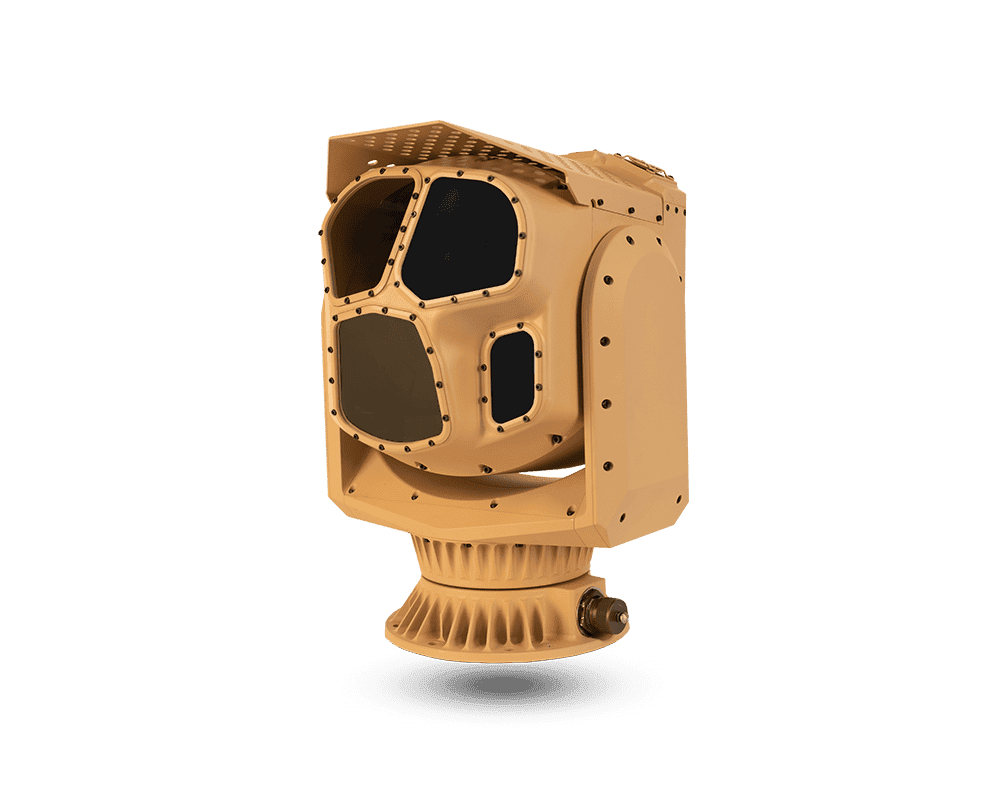

CACI International's CM262 is an advanced ground-based imaging system that has been optimized for on-the-move applications. With an HD EO sensor, MWIR and SWIR thermal imagers, and a laser rangefinder, it delivers excellent imaging performance even at high speeds and is ideal for ISR, counter-UAS, border protection, and perimeter surveillance.

The rugged all-weather solution is IP68-rated and weighs just 16 kg (35 lbs). It incorporates cutting-edge video processor technology for reliable target detection, recognition and identification. Onboard processing features include object tracking, e-stabilization, roll stabilization, scene steering, and geo-lock.

EO SWIR MWIR
Human Vehicle Human Vehicle Human Vehicle
Detect 23.6 km 60 km 11.9 km 30.7 km 13.4 km 34.5 km
Recognize 5.9 km 15.2 km 3 km 7.7 km 3.6 km 8.6 km
Identify 3.7 km 9.5 km 1.9 km 4.8 km 2.1 km 5.4 km
