CM102

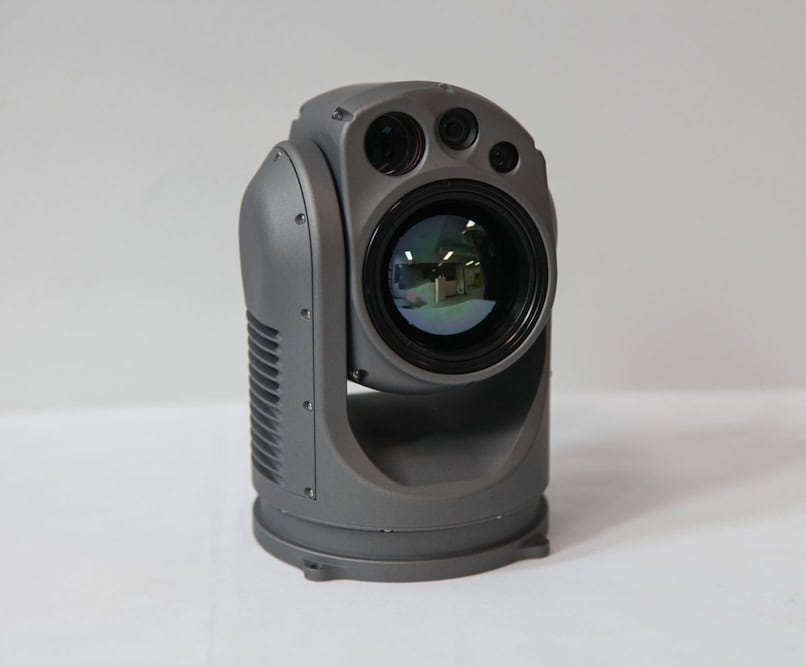

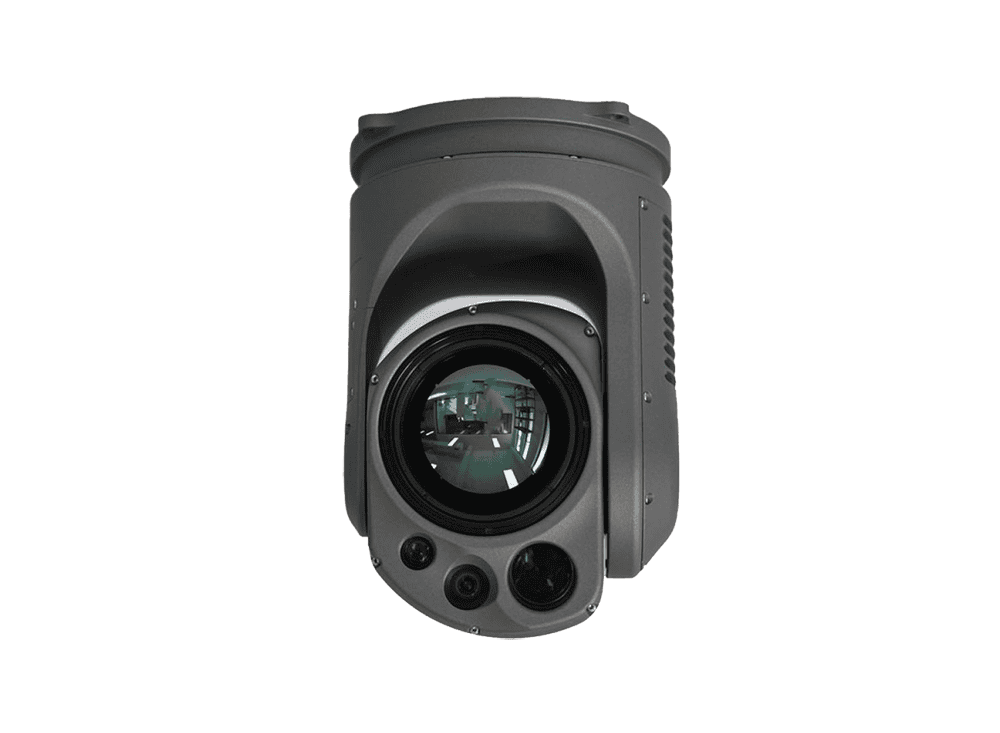

CACI International's CM102 combines high-definition EO and LWIR sensors in a compact and lightweight two-axis stabilized package that is designed to provide long-range day- and night-time imaging capabilities for Group 1 and 2 UAS. Rated IP65 as standard with optional IP67 protection, the rugged payload is ideal for airborne ISR, force protection and search and rescue, and is also highly suited to counter-drone systems.
Weighing less than 900g (2 lbs), the low-SWaP gimbal features fully integrated video processing and H.264/H.265 encoding, and offers a wide range of advanced features including target detection, recognition and tracking. It is compatible with MAVLink, allowing for tailored setup and easy integration.
| Dimensions (D x H): | 100 x 150 mm 3.94 x 5.9” |
| Weight: | <900g <1.98 lbs |
| Elevation: | +90° / -110° from horizontal |
| EO Sensor: | Color CMOS Resolution 1080p, 720p, 480p HFoV 56° to 0.8° (at 640x480 resolution) 75x Zoom Frame Rate 30 Hz @1080p |
| LWIR Sensor: | Uncooled LWIR Resolution 1280x1024 HFoV 17.6° (at 720p resolution) Focal Length 50mm Frame Rate 30 Hz @720p (configurable for 9Hz output) |
