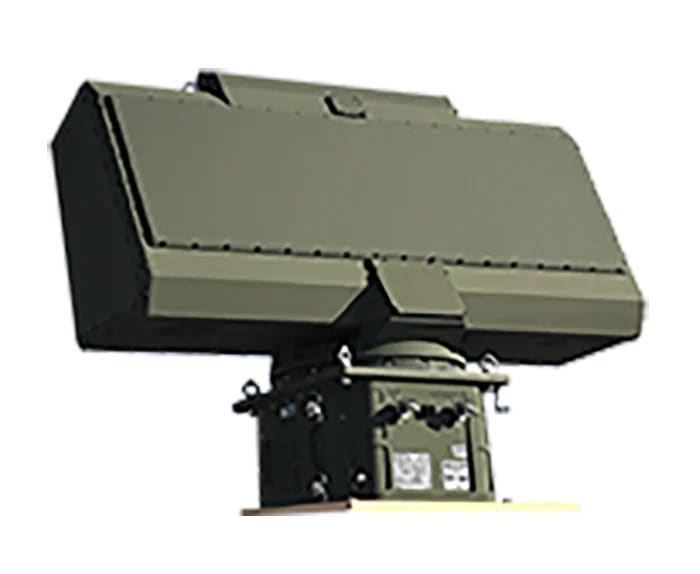

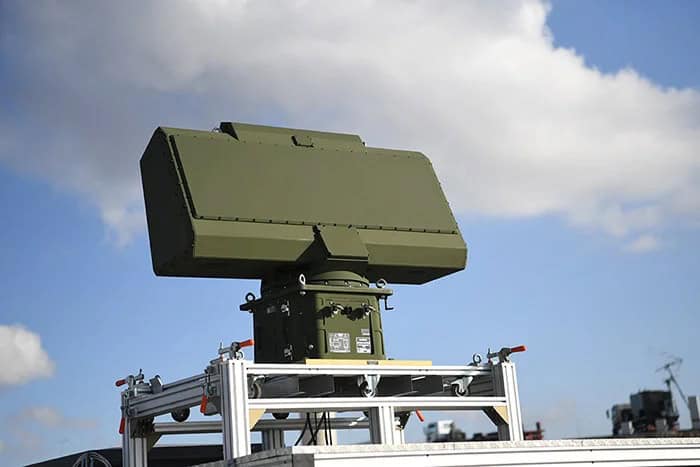

KALKAN 100-G
KALKAN 100-G is a multifunctional mobile search radar designed to generate a three-dimensional air picture and transmit it to connected air defense systems. The radar can also receive commands and operating parameters from command and control networks.

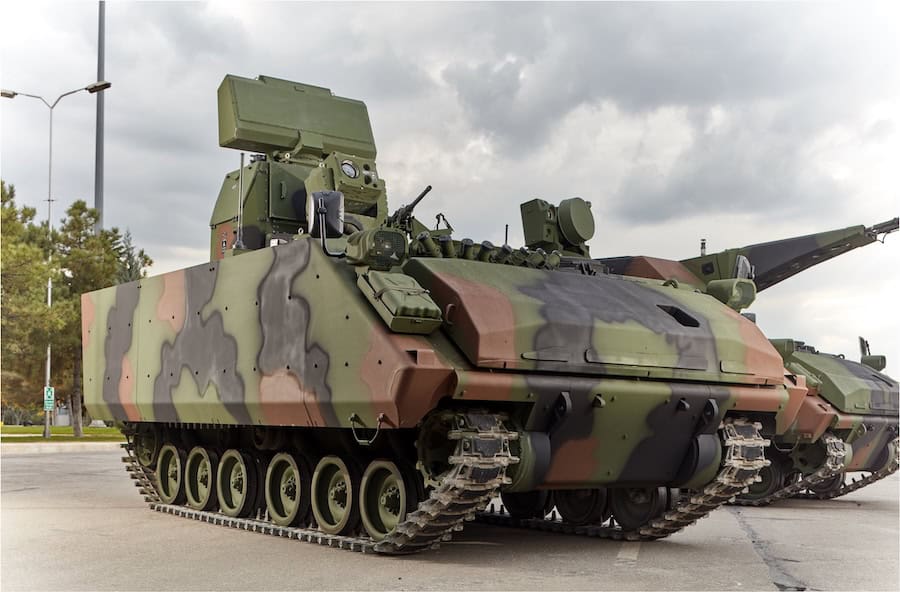

The system can be used as a primary search radar or as a standalone radar in air defense configurations. Its mobile design supports deployment with ground-based air defense assets and other tactical units.
KALKAN 100-G provides radar search, detection and tracking functions for local and medium-range air defense coverage.
Specifications:
| Transmission frequency | X-band |
| Effective range | 70+ km |
| Operating temperature | -32 degrees C to +44 degrees C |
| Storage temperature | -40 degrees C to +63 degrees C |
| Antenna dimensions | 1700 x 700 x 1000 mm |
| Environmental standard | MIL-STD-810G |
