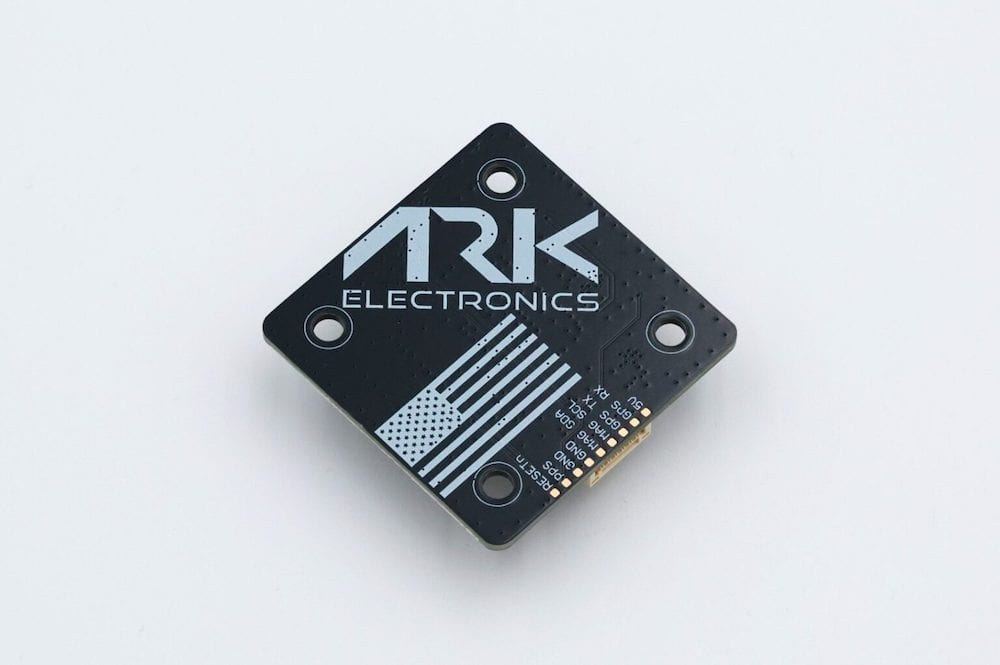

The ARK DAN GPS is a U.S.-manufactured, NDAA-compliant dual-band L1/L5 GNSS and industrial magnetometer module built for consistent, interference-resistant positioning performance. Powered by the u-blox DAN-F10N receiver, it supports L1, L5, E5a, and B2a frequency bands, providing robust multi-constellation coverage. The integrated SAW-LNA-SAW filtering architecture enhances out-of-band jamming resistance, while the u-blox F10 dual-band multipath mitigation technology maintains reliable signal tracking across challenging conditions.
An onboard ST IIS2MDC magnetometer delivers accurate heading data within a compact 4.4 cm × 4.4 cm × 1.3 cm housing. The Pixhawk-standard UART/I2C interface and 6-pin JST-GH connector enable seamless system integration, supported by efficient 5 V operation with an average current draw of 25 mA. With a total mass of only 25 g and a visible GPS fix LED, the ARK DAN GPS combines precision signal processing, compact form factor, and verified compliance for demanding embedded navigation environments.
Specifications:
| Dimensions: | 4.4 × 4.4 × 1.3 cm |
| Weight: | 25 g |
| Power: |
5V 25mA average, 44mA max |
| Frequency Bands: | L1/L5/E5a/B2a |
