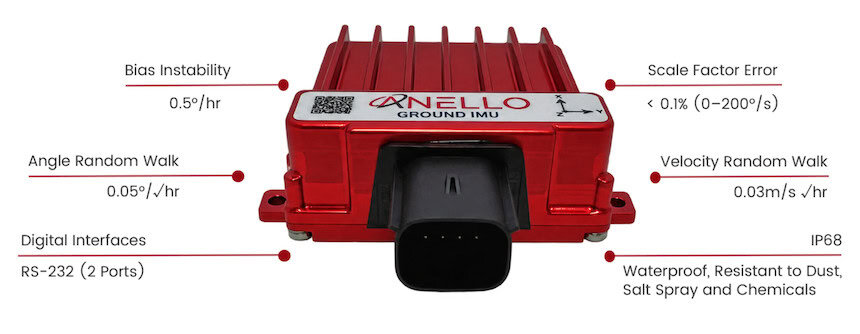

ANELLO Ground IMU
The ANELLO Ground IMU is a rugged inertial measurement unit designed to deliver ultra-reliable performance under the harsh environmental conditions faced by military and defense platforms and vehicles. It has been hardened against a range of stressors including shock, vibration, thermal gradients, moisture, dust, salt spray and chemicals.
The robust unit features the same fault-tolerant triple-redundancy design as the ANELLO X3 IMU with six degrees of freedom, and provides two CAN or serial RS-232 interfaces for easy integration into a wide range of platforms. Data can be output at up to 200 Hz.
| Dimensions: | 75 x 75 x 28 mm (9.8 in3) |
| Weight: | <1 lbs |
| Power: | 8-30 VDC, 2.5W |
| Gyro Range: | +/- 200°/s |
| Gyro Bias Instability: | < 0.5°/hr |
| ARW: | < 0.05°/√hr |
| Accel Range: | 8g |
| Accel Bias Instability: | 20μg |
| VRW: | 0.03 m/s/√hr |
