ISR Drone
Black Widow™ sUAS by Red Cat Holdings.
ISR drones deliver real‑time surveillance data across military, law enforcement, and defense domains. Platforms span tactical hand‑launched units through maritime patrol UAS. Sensors include EO/IR cameras, Synthetic Aperture Radar (SAR), SIGINT payloads, and communications relay systems. These systems enable persistent surveillance, target tracking, border monitoring, search and rescue support, and maritime ISR.
Understanding ISR Drone Capabilities
ISR drone categories align with U.S. Department of Defense Group classifications. Each group reflects platform weight, operating altitude, endurance, sensor packages, and typical mission roles. Lower‑weight groups serve short‑range tactical needs, while higher groups fulfil long‑endurance strategic ISR missions.
DoD UAS Group Classification Table
| DoD group | MTOW & Altitude | Primary ISR missions & payloads |
| Group 1 | < 20 lbs (9 kg), < 1,200 ft AGL | Short‑range surveillance, infantry situational awareness; EO/IR cameras |
| Group 2 | 21–55 lbs, < 3,500 ft AGL | Regiment‑level reconnaissance, target tracking, bomb damage assessment (BDA); EO/IR gimbals, SIGINT/EW payloads |
| Group 3 | < 1,320 lbs (600 kg), < 18,000 ft MSL (non-HALE) | Brigade‑level surveillance, advanced EO/IR sensors, radar, comm relay; MALE UAV role |
| Group 4 | > 1,320 lbs (600 kg), Any | Extended surveillance, precision strike support, persistent battlefield oversight |
| Group 5 | > 1,320 lbs (600 kg), > 18,000 ft MSL | Strategic ISR, maritime patrol, SAR, multi‑INT fusion with SAR, SIGINT & EO/IR |
Applications and Use Cases
ISR drone platforms serve diverse operational roles:
- Tactical reconnaissance and soldier awareness (Group 1/2): short‑range squad‑level ISR, border patrol, search and rescue support.
- Mid‑level ISTAR (Group 2/3): extended-area reconnaissance, battle damage assessment, target tracking, communication relay in denied environments.
- Strategic and maritime ISR (Group 4/5): persistent surveillance of contested regions, environmental monitoring, coastal patrol, maritime domain awareness, and SIGINT operations.
Applications span from military drone missions to law enforcement surveillance, environmental assessment, counter‑terrorism operations, coastal patrol, and urban ISR platforms. Payloads include infrared sensors, SAR, target tracking systems, gimbal systems, data links, onboard autopilot, and flight control systems.
Types of ISR Drone Platforms

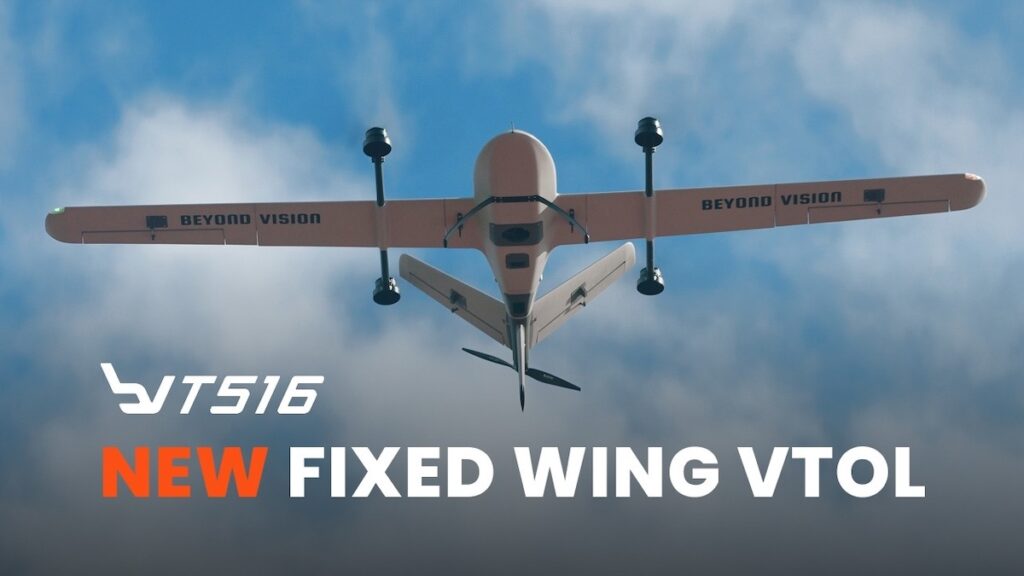

- Fixed‑wing MALE/HALE UAVs: optimized for long‑duration missions and strategic surveillance.
Sensus M4E-FW 35 by ISS Aerospace.

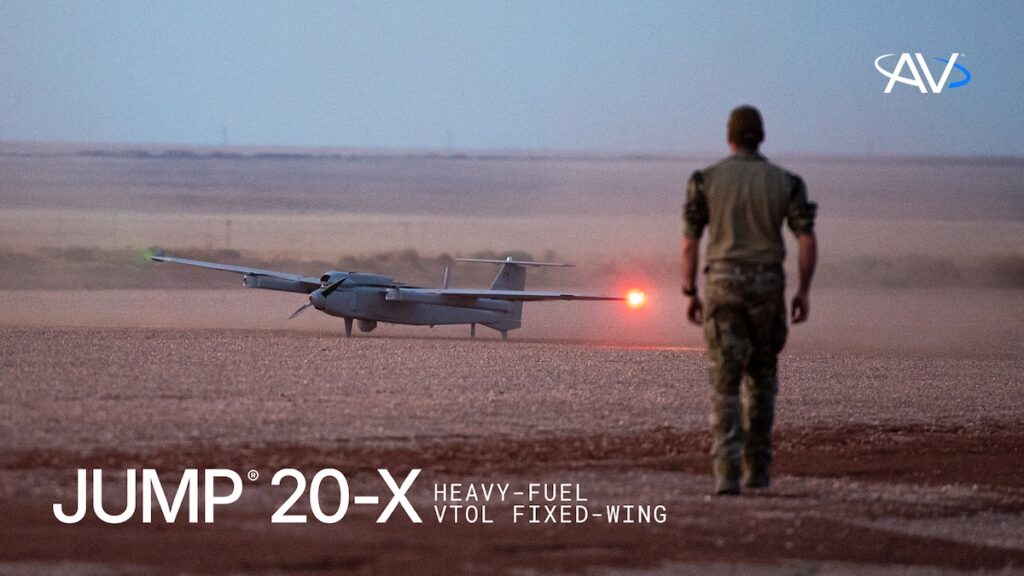

- Hybrid VTOL and multi‑rotors: for tactical flexibility, rapid launch and recovery.
- Hand‑launched mini drones: lightweight, portable, and soldier‑operated.
Sensor and System Technologies
Sensor payloads and avionics enhance mission capability:
- Electro‑optical/infrared (EO/IR) cameras, gimbal‑stabilized for target tracking and thermal imaging
- Synthetic Aperture Radar (SAR) and ground moving target indicator (GMTI) sensors
- SIGINT/Electronic warfare modules, communication relay or rapeline systems
- Autopilot and onboard computers, ground control stations (GCS), satcom or RF communication links
- Power and battery systems, fuel‑powered engines for longer endurance
Standards and Classification Reference
- Department of Defense UAS Group classification (Group 1 through Group 5) categorizes UAS by weight, altitude, endurance, and mission role.
- NATO class system aligns micro/mini/small UAS to classes I–III, bridging tactical to strategic drone roles.
ISR drone platforms integrate intelligence gathering, surveillance systems, autopilot systems, thermal imaging cameras, SAR sensors, onboard power supply, target tracking, mission planning, data links, gimbal systems, GPS modules, and support autonomous drones, AI drones, and communication-linked operations.
