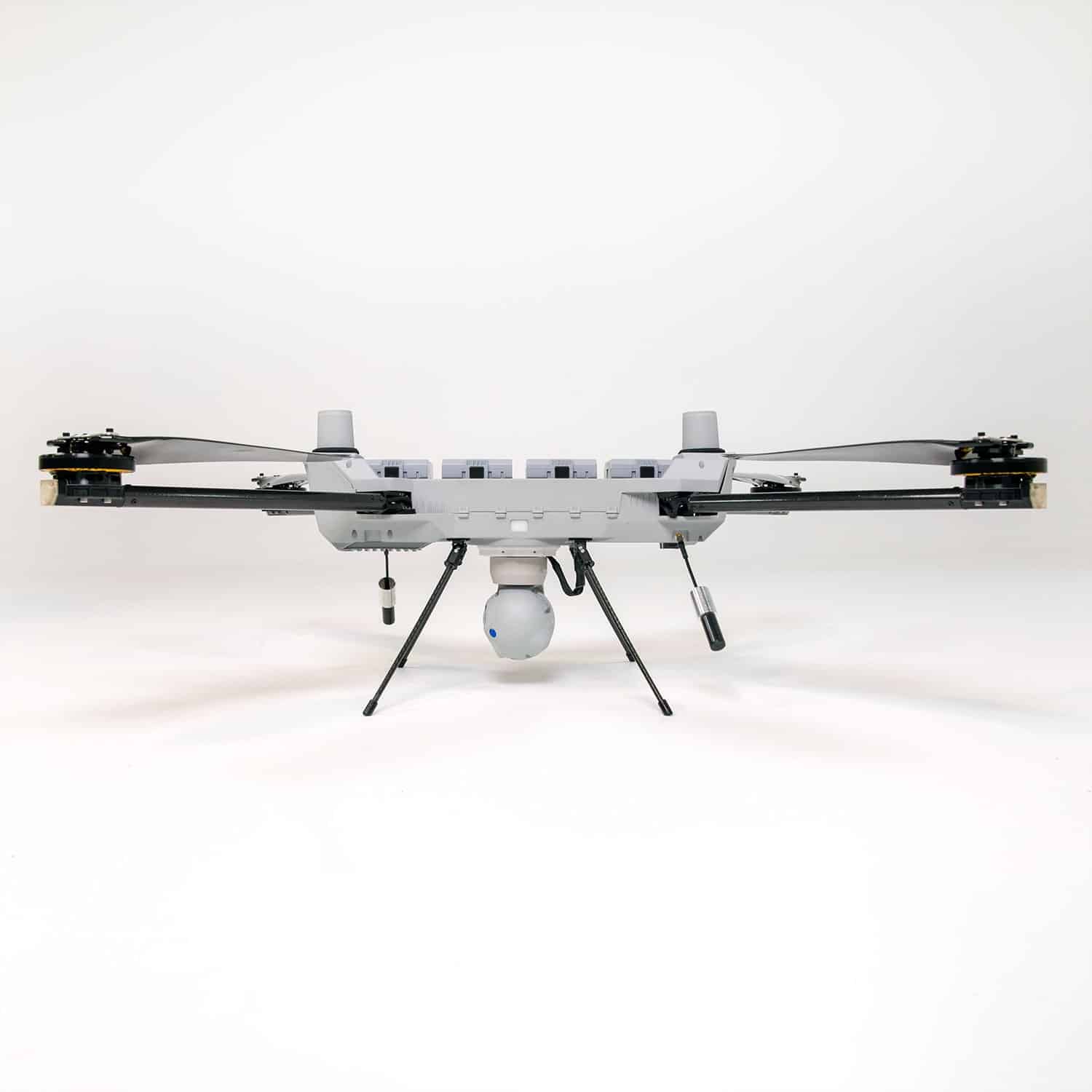

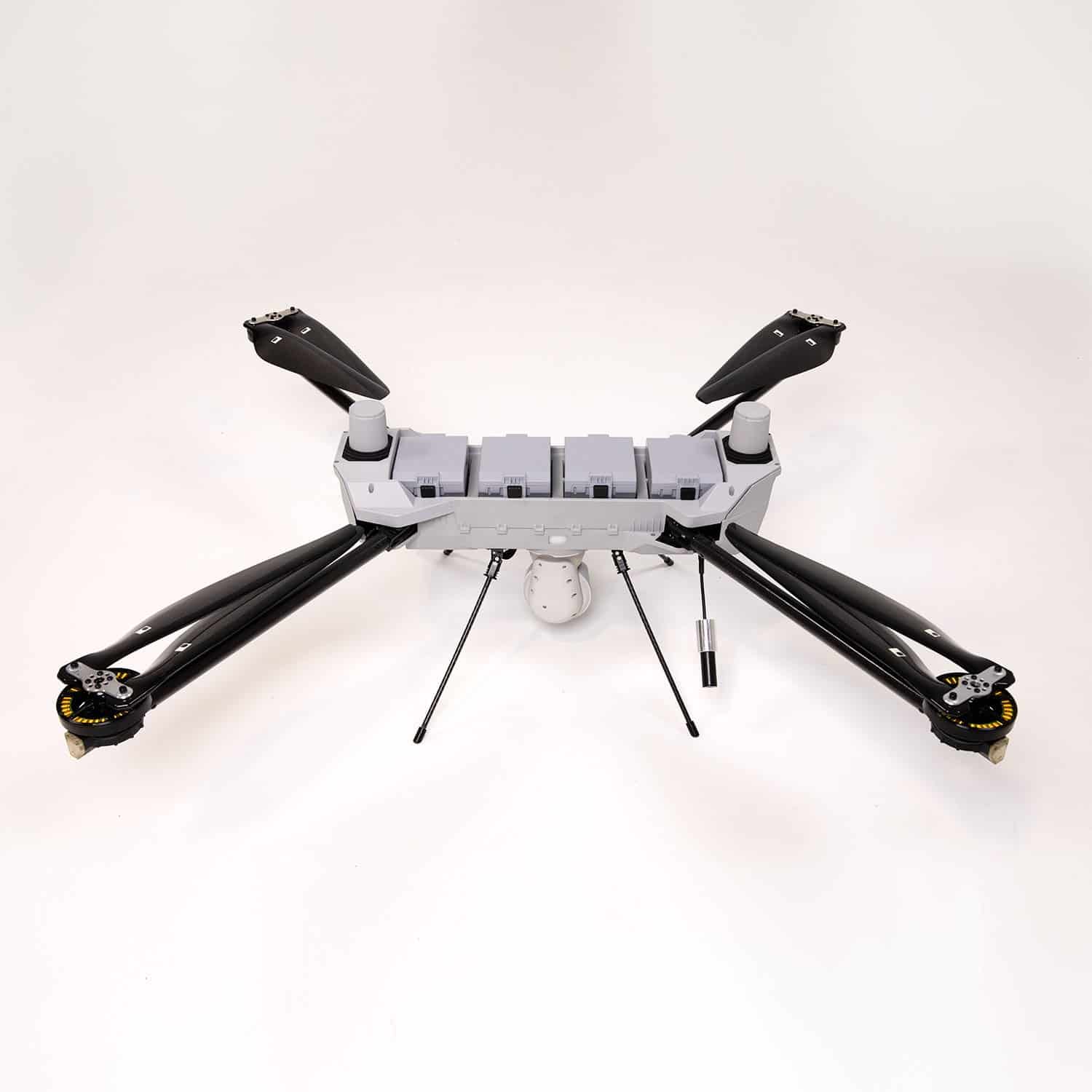

The C100 is a man-packable heavy-lift quadcopter platform that features world-leading flight endurance, capable of missions of up to 80 minutes with a payload. The low-SWaP (size, weight and power) drone easily folds down into a small rucksack and can be deployed and airborne in under 2 minutes.
The versatile system carries up to 30 lbs and features universal third-party payload connectivity with support for a wide variety of protocols. Standard payload options include Trillium's military-grade EO/IR gimbals. The aircraft also features an independent fixed flight camera for first-person view, enhancing operator navigation. Advanced autonomy capabilities include object detection, visual inertial odometry for GNSS-denied environments, and vision-based collision prevention.
The C100 is built around a future-proof modular open architecture, allowing new hardware and powertrain modifications to be seamlessly integrated. The system incorporates DIU Blue-UAS approved flight avionics, as well as an AES-256 encrypted datalink for reliable and secure communication.
Specifications:
| Dimensions |
24” x 15” x 8” (folded) 64” x 65” x 11” (operational) |
| Weight | 21.4 lbs (9.7 kg) |
| Endurance | 74 Minutes with Payload |
| Max Payload Capacity | 10 lbs (4.5kg) |
| Range | 3 miles |
| Max Flight Speed | 40 mph (64 km/h) |
|
Payload Option 1: (Trillium HD40-LV EO/IR) |
720p Global Shutter Visible Camera Resolution: 1280 x 720 Field of View: 54°–4.9° up to 2.5° Digital LWIR 30 Hz 640 with 24 mm lens Resolution: 640 x 512 Field of View: 18.2° up to 4.6° Digital Optional 850 nm laser pointer |
|
Payload Option 2: (Trillium HD40-XV EO 30x zoom) |
720p Global Shutter Visible Camera Resolution: 1280 x 720 Field of View: 54.3°–1.7° up to 1.0° Digital |
