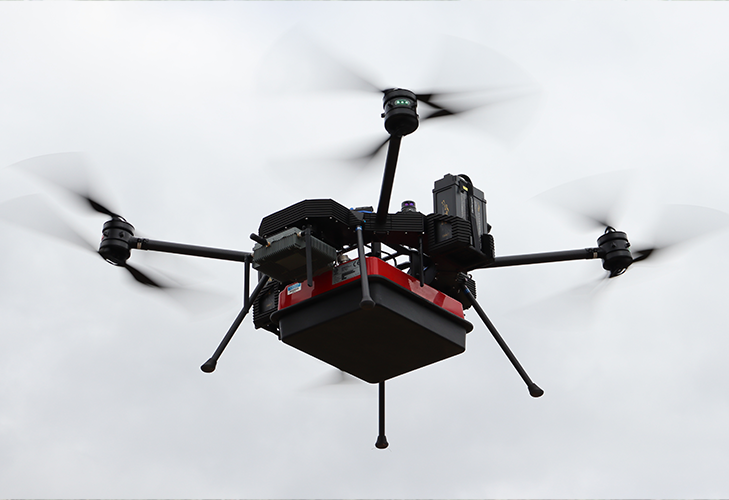

Sensus L
The Sensus L is a rugged heavy-lift UAV featuring a modular design and a unique universal interface that can accept a wide variety of payloads and equipment. Able to carry three large sensors up to a total weight of 25kg, it is ideal for complex military data-gathering and surveillance missions requiring real-time data fusion and transmission.

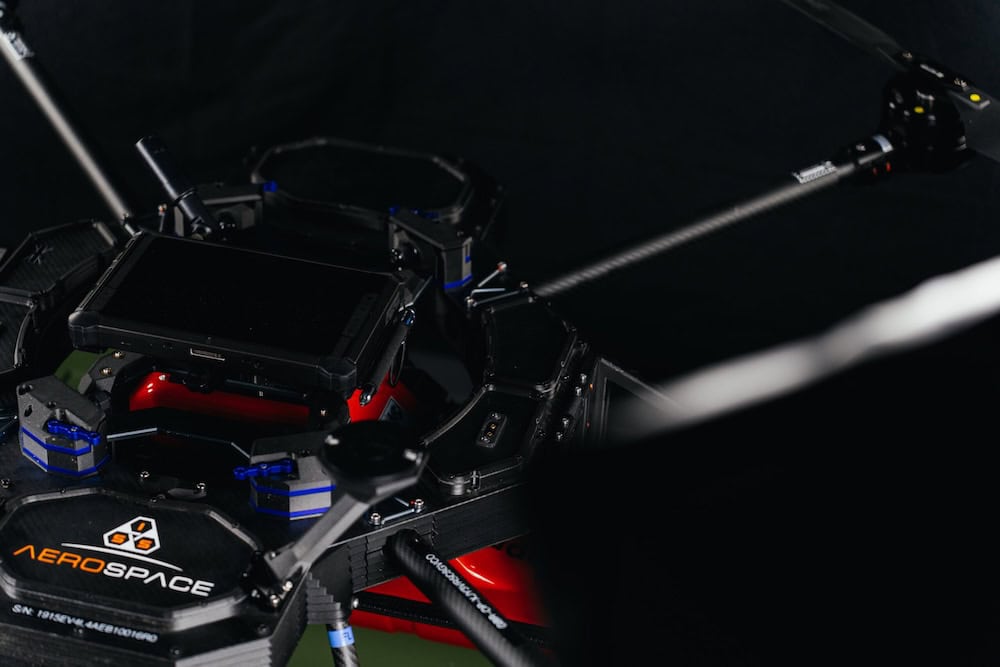

The aircraft features a 3D-printed carbon fibre-reinforced nylon hull that has been designed and manufactured completely in-house, with aerospace- and marine-grade fixings. The platform can be powered by either traditional Li-Po batteries, or a 2400W hydrogen fuel cell system from Intelligent Energy.
Specifications:
| Sensus L4 | Sensus L8 | |
| Dimensions: | 1100 x 1100 x 440 mm | |
| MTOW: | 24 kg | 38 kg |
| Payload Capacity: | 8 kg | 18 kg |
| Maximum Flight Time: | 55 mins no payload 25 mins with max payload |
50 mins no payload 25 mins with max payload |
| Range: | 82.5 km | 75 km |
| Maximum Speed: | 25 m/s typical | |
| Maximum Pitch Angle: | 45o | |
| Wind Resistance: | 18 m/s | |
| Service Ceiling: | 3500m | |
| IP Rating: | IP54 IP65 upgrade available |
|
