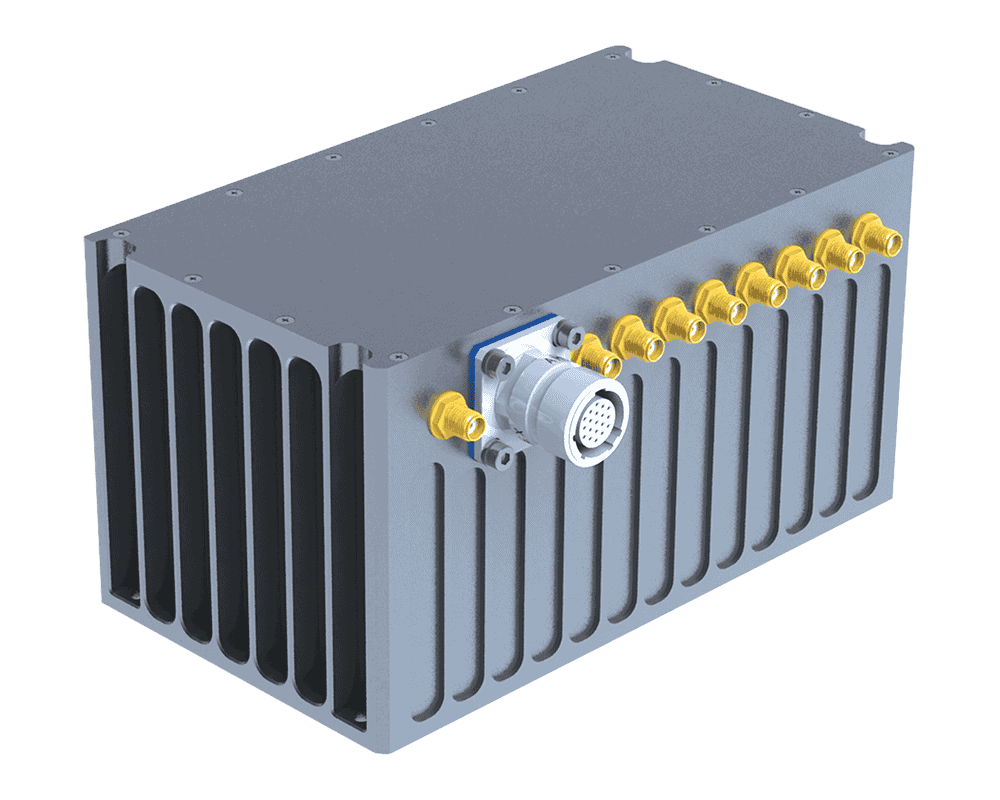

The TUALAJ 8600 GPS/GNSS anti-jamming system is designed to sustain reliable GNSS performance in complex and contested RF environments. Utilizing an 8-element CRPA, a high-performance digital controller, and advanced beamforming algorithms, the system suppresses interference from up to seven jamming sources across six frequency bands, maintaining continuous GNSS receiver operation during mission-critical activities.
Protected active frequency bands can be pre-selected to align with specific mission requirements, supporting flexible multi-constellation operation. Additional interference mitigation is provided through adaptive notch filtering and pulse blanking, improving resilience against a wide range of signal disruption techniques.
The system is engineered for integration across land, maritime, and air-based defense platforms, supporting seamless interfacing with both civil and military GNSS receivers. An optional embedded GNSS receiver with SBAS support enhances positioning accuracy and reliability where required.
Two antenna configurations are available to address platform size and weight constraints, enabling deployment across a range of operational scenarios. Built in accordance with MIL-STD-810G and MIL-STD-461F standards, the TUALAJ 8600 delivers assured PNT performance for demanding defense and electronic warfare applications.
| Dimensions (cm): | 9.0 x 9.5 x 18.7 (DACU), 14 x 14 x 2.2 (Antenna Option 1), 20Ø x 3.05 (Antenna Option 2) |
| Weight (g): | 2300 (DACU), 750 (Antenna Option 1), 875 (Antenna Option 2) |
| Power Consumption (W): | Maximum 45 |
| Antenna Array: | 8 Array CRPA Antenna |
| Simultaneous Independent Nulling: | 7 |
| Simultaneous Active Bands: | GPS (L1, L2, L5, L6), GLONASS (G1, G2), Galileo (E1, E5a, E6), L Band Correction, Beidou (B1, B2a, B3), SBAS |
| Nominal Wideband Suppression: | > 50 dB |
| Data Interfaces: | Serial RS-485, Serial RS-232, Ethernet (Optional) |
| Connectors: | 9× SMA Jack, 25-pin Military Socket |
| Operating Voltage: | 12–28 VDC |
| Embedded GNSS Receiver (Optional): | GPS (L1, L2), GLONASS (G1, G2), Galileo (E1, E5b), Beidou (B11), SBAS, QZSS (L1), RTCM Support |
| Environmental Tests: | MIL-STD-810G |
| EMI / EMC: | MIL-STD-461F |
| Operating Temperature: | -40 °C to +85 °C |
