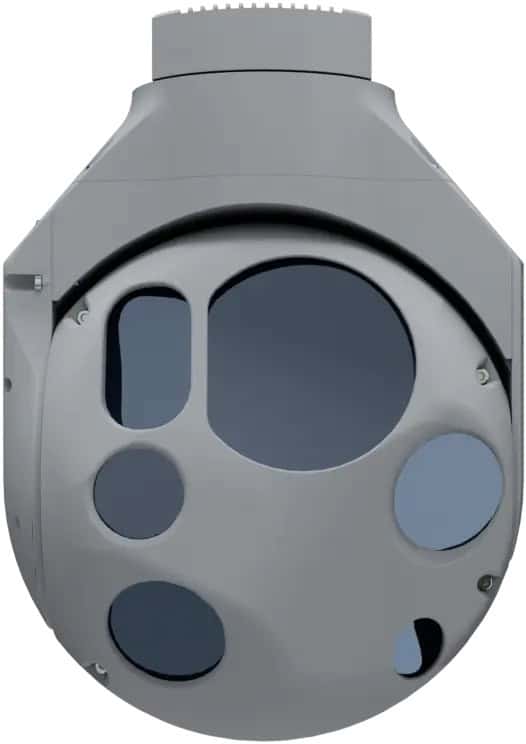

Trillium Engineering’s HD59 is a 5.8-inch multi-sensor gimbal system engineered for deployment on sUAS, mid-tier airframes, and launched effects. Developed to meet stringent size, weight, and power limitations, it supports a range of military ISR roles including border surveillance, maritime domain awareness, and infrastructure protection. Each unit integrates onboard AI/ML processing, precision geopointing, and a modular sensor suite, maintaining performance in environments in GPS-denied environments.
The system is available in three configurations to support diverse operational requirements. The HD59-LLVV combines dual LWIR with dual EO sensors and offers 180x visible zoom for day and night observation. The HD59-MLVV adds MWIR for improved target identification while preserving multi-spectral capability. The HD59-MLVS integrates MWIR, LWIR, EO, SWIR, and a 50 mJ laser designator, all within a package weighing less than 2 kg. Built for flexibility and reliability, the HD59 supports defense forces requiring lightweight imaging solutions for multi-domain environments.
Specifications:
| HD59-LLVV | HD59-MLVV | HD59-MLVS | |
| Dimensions (D x H) | 5.8 x 7.9 in | 5.8 x 7.9 in | 5.8 x 7.9 in |
| Weight | 1600 g | 1850g | 1900 g |
| Power Consumption | 20W average 100W peak |
20W average 100W peak |
20W average 100W peak |
| Cameras | LWIR 640 x 512 LWIR 640 x 512 Visible 1920 x 1080 |
MWIR 640 x 512 LWIR 640 x 512 Visible 1920 x 1080 |
MWIR 1280 x 1024 LWIR 640 x 512 Visible 1920 x 1080 SWIR 640 x 512 |
| FOV/DFOV | 29° - 5.9° - 3° 32° - 16° 45° - 1.5° - 0.3° |
21.7° - 2.2° - 1.1° 32° - 16° 45° - 1.5° - 0.3° |
5.6° - 1.4° 18.2° - 9.1° 16.9° - 3.5° - 0.6° 5.7° - 2.9° |
