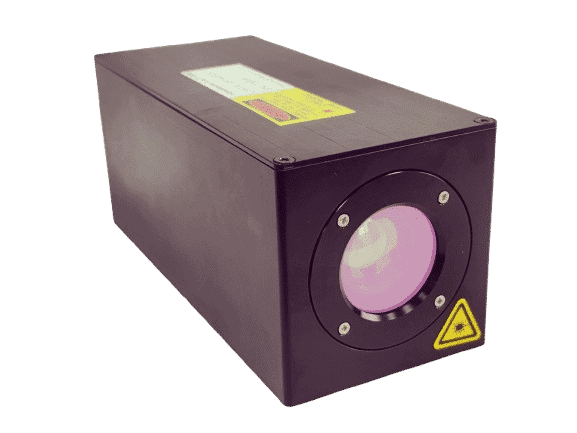

XACT-Excel
The XACT-EXcel is a compact OEM laser pointing and illumination module that allows the user to vary the beam from 1mrad up to 13mrad without any moving parts. The system's unique design homogenizes the power distribution across the beam, utilizing thermal sensing for power regulation.
The module is ideal for combining with a camera system to create an all-in-one solution that provides smooth zooming and illuminating.
Specifications:
| Dimensions (L x W x H): | 183.6 x 71 x 72.5 mm |
| Weight: | 720g |
| Wavelength: | 830nm / 940nm / 1270nm (Other wavelengths available) |
| Optical Output Power: | 2W (other options available) |
| Operational Modes: | CW, Flash |
| Pulse Rate: | Up to 5Hz by pulsed input from user to the ENABLE line |
