TRFlash-2

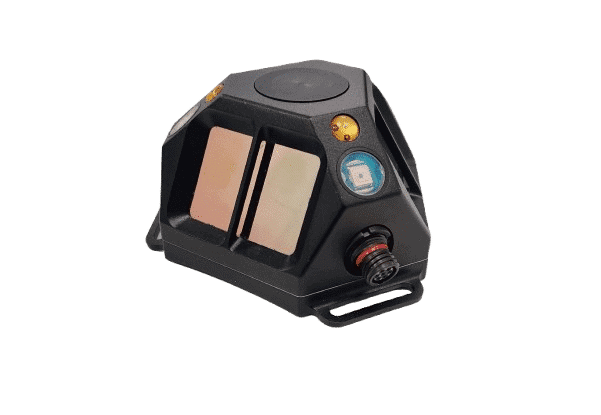

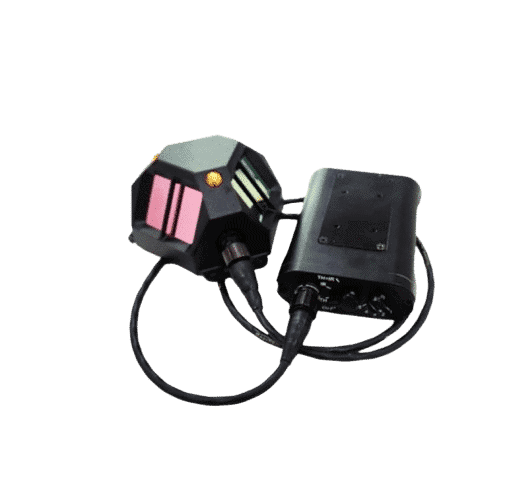

The TRFlash-2 is a multispectral and omnidirectional helmet-mounted IFF (Identification Friend or Foe) beacon that offers NIR, SWIR, MWIR and LWIR emission capabilities with excellent detection ranges.
The rugged low-SWaP unit is ideal for tactical teams, law enforcement, search and rescue and more.
Specifications:

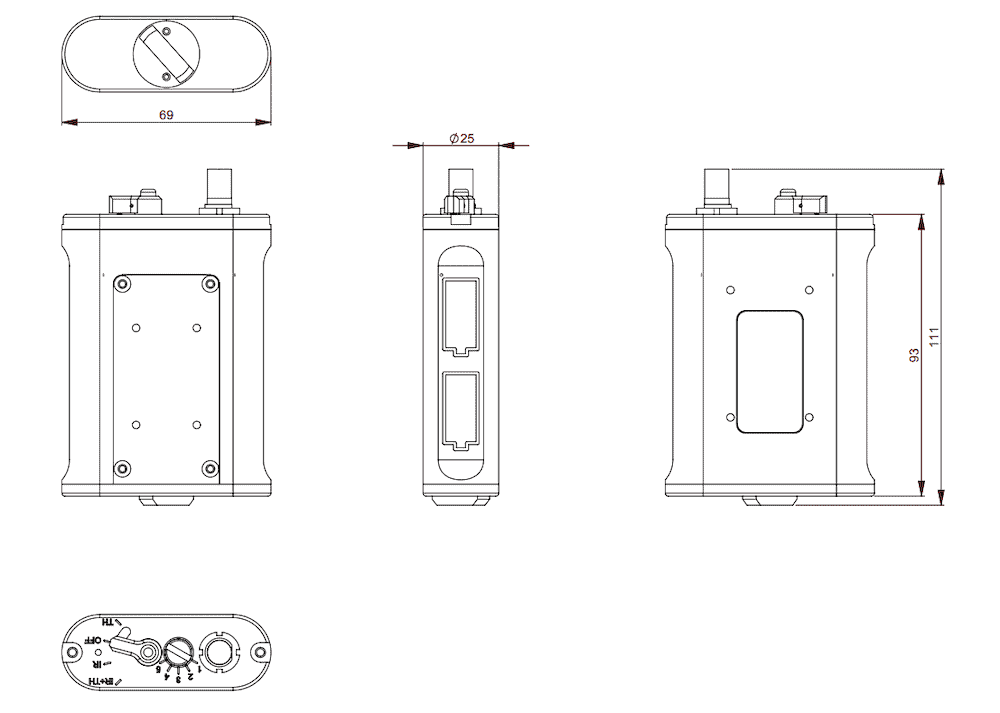

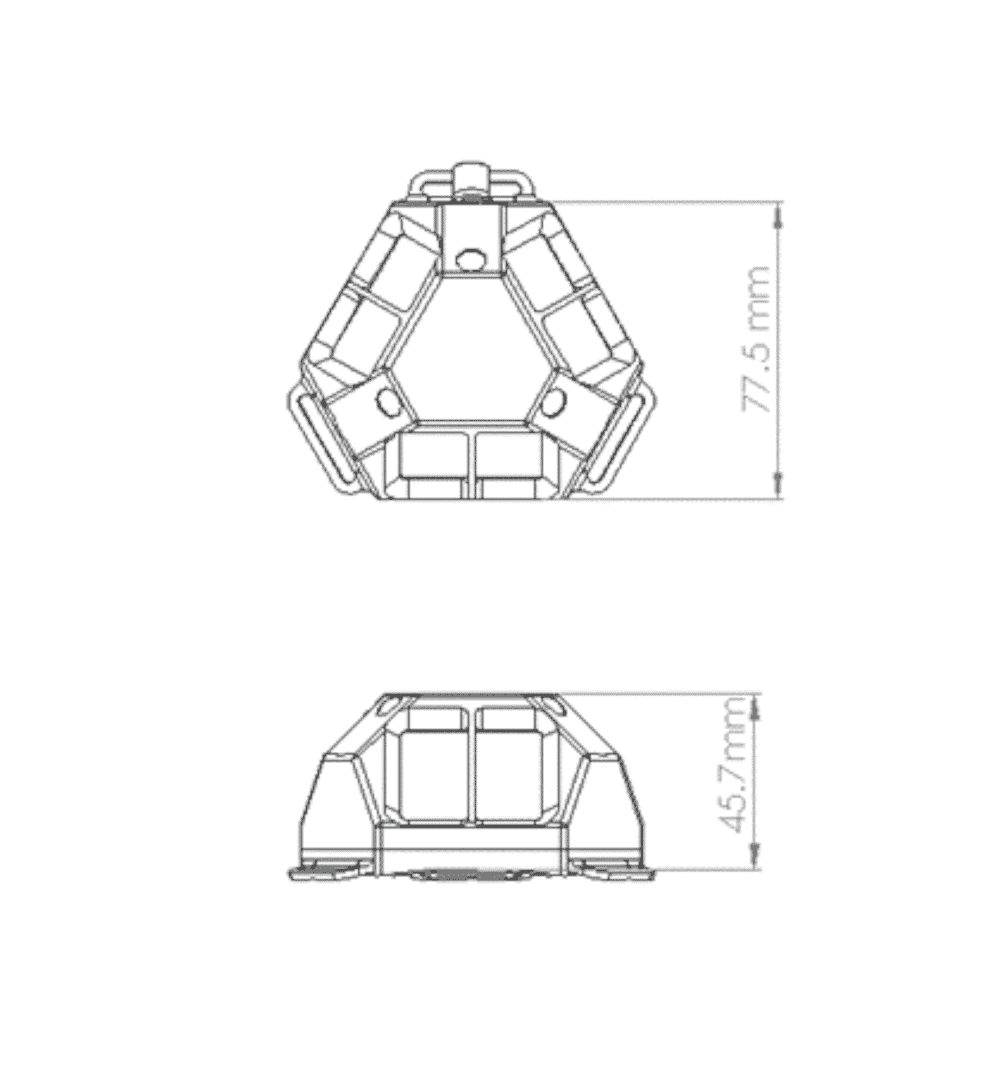

| Dimensions (H x L x W): | Beacon: 45.7 x 77.5 x 77.5 mm Control Unit: 25 x 11 x 69 mm |
| Weight: | Beacon: 181g Control Unit: 223g (without batteries or accessories) |
| Power: | 4x CR123 batteries |
| Detection Range: | At 3-5μm using InSb Detector & 250mm lens: 5km At 3-5μm using Airborne Optics (Litening): >15km At 8-12μm using a microbolometer camera at narrow field: Up to 2km Near-IR Head using IR light intensifier: 10km SWIR Head using SXGA InGaAs camera at 0.25⁰ FOV: >3km |
| Operation Time: | 3 hours (Thermal Mode @ 0.5 Hz) |
| Radiation Divergence: | Half-sphere |
| Repetition Rate: | 0.5 – 2.5 Hz, 5 predetermined frequencies |
