MK-IV

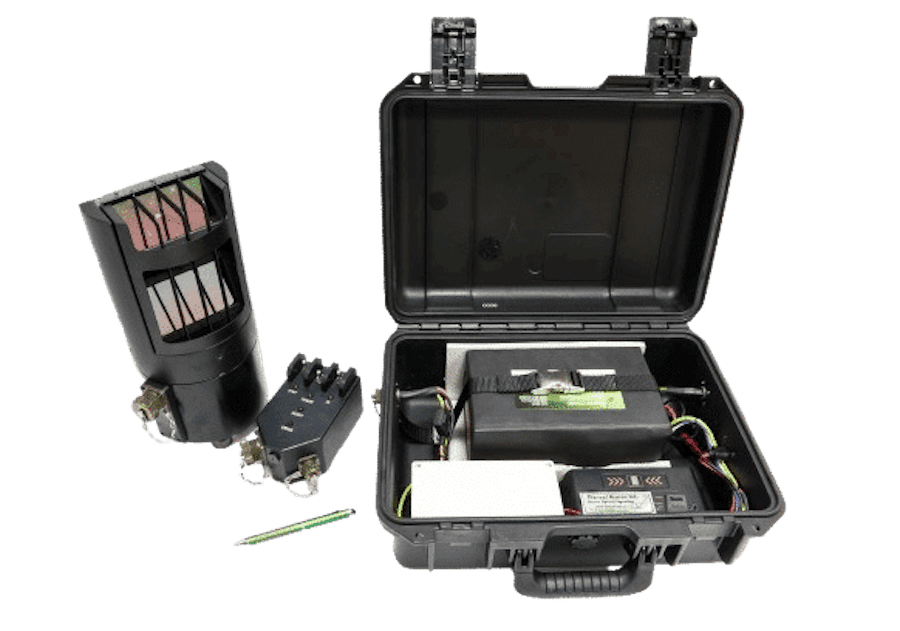

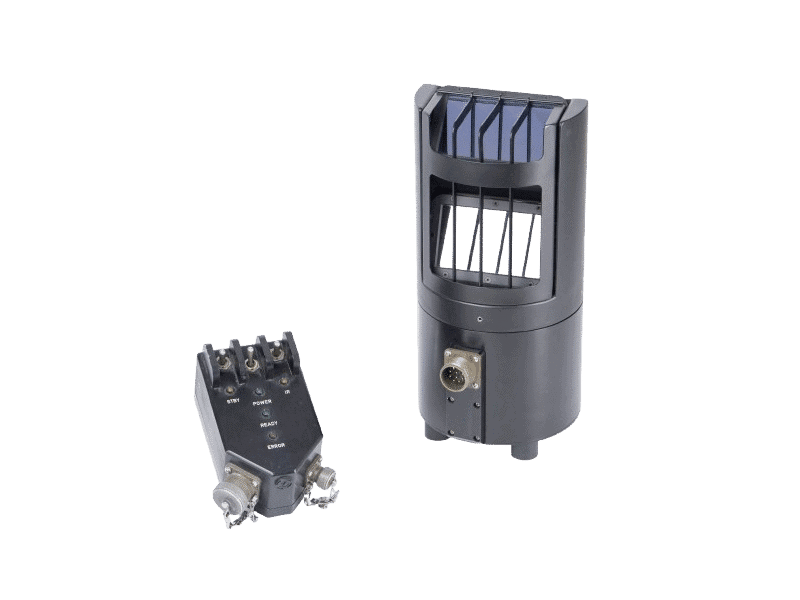

The MK-IV is a powerful IFF (Identification Friend or Foe) beacon that provides signaling in the 3-5 μm and 8-12 μm bands as standard, with optional 0.8 µm capability. Proven in service with military units, it is fully compliant with STANAG 2129.
Specifications:
| Dimensions: | Beacon D x H: 155 x 312 mm Control Unit H x L x W: 70 x 150 x 111 mm |
| Weight: | Beacon: 5.3 kg Control Unit: 1.1 kg (without batteries or accessories) |
| Power: | 12/24 VDC, 7/4A |
| Detection Range: | At 3-5μm using InSb Detector & 250mm lens: 8-9km At 3-5μm using Airborne Optics (Litening): 20km At 8-12μm using MCT camera at narrow field: 4km At NIR using IR light intensifier: 10km |
| Radiation Divergence: | Omnidirectional |
| Repetition Rate: | 1.5 Hz |
