Micro Lapid 200P
The Micro Lapid 200P is a compact NIR (near-infrared) laser pointer that can point out targets at ranges of up to 10 km. With a small and lightweight footprint, it is ideal for integration into SWaP-limited OEM equipment such as gyro-stabilized gimbal payloads.

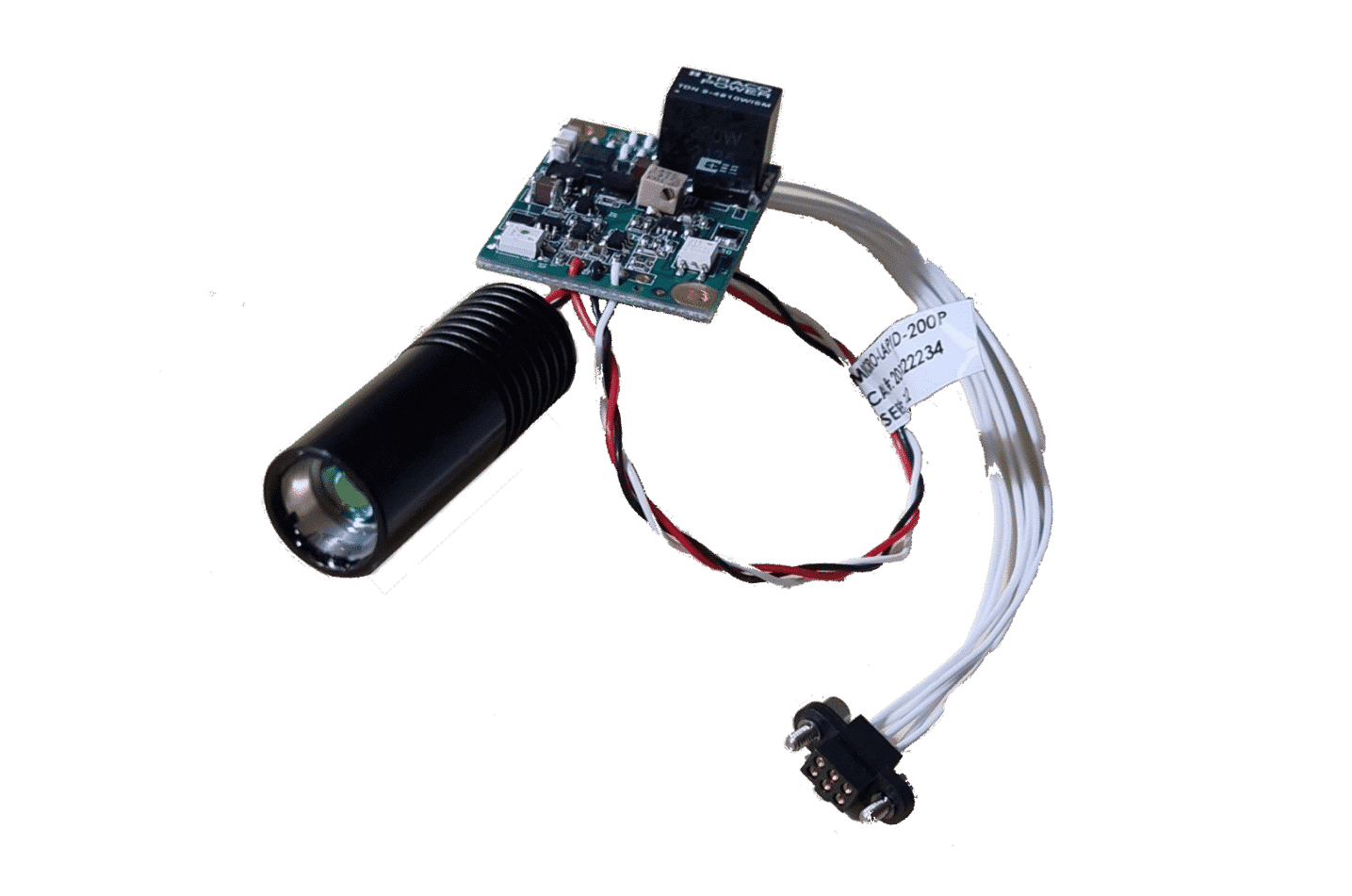

The design features separate optics and PCB for maximum installation flexibility.
Specifications:
| Dimensions: |
Optics D x L: 15 x 40.1 mm PCB L x W: 42 x 28 mm |
| Weight: | 28.2g |
| Power: | 28VDC |
| Wavelength: | 850nm |
| Optical Output Power: | 190 mW |
| Pulse Rate: | Up to 5Hz |
| Operational Modes: | CW, Flash |
